DEYE Battery SE-G5.1 PRO-B Battery Module
SKU: F11D82
EAN: 5905951587523
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| CAN | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 51,8 kg |
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| CAN | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 51,8 kg |

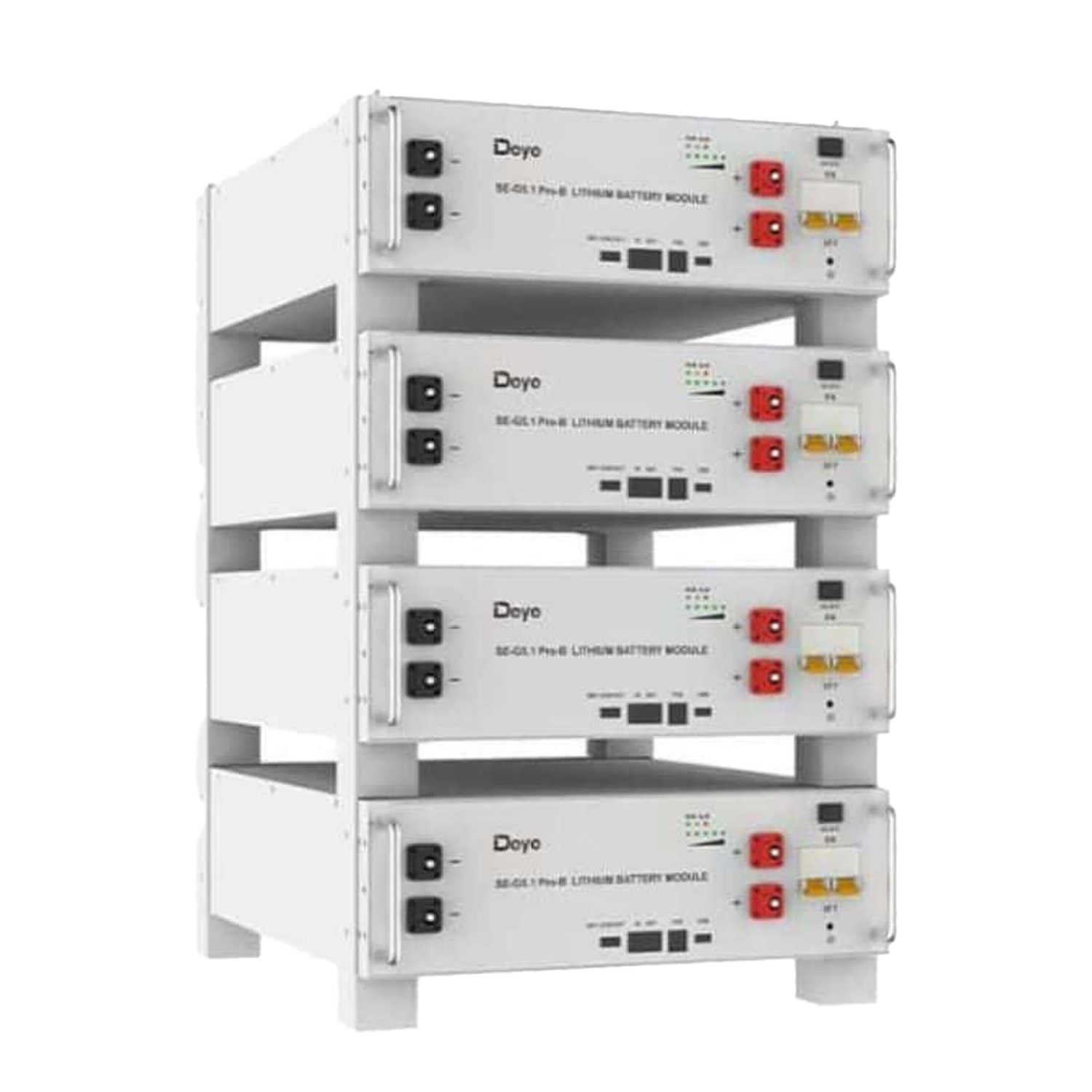

Deye SE-G5.1 Pro-B Energy Storage
Deye SE-G5.1 Pro-B is an energy storage system based on lithium iron phosphate (LFP) batteries, renowned for its high efficiency, safety, and flexible installation options. With an integrated BMS system and a wide operating temperature range (from -20°C to +55°C with a heating function), this storage solution is suitable for a variety of environmental conditions.
Key features of the Deye SE-G5.1 Pro-B energy storage:
- Safety – Cobalt-free LFP batteries ensure stability and a long lifespan, while the IP20 protection level guards against mechanical damage.
- High efficiency – A nominal capacity of 5.12 kWh and the ability to deep discharge (up to 90% DoD) contribute to the effective operation of the system.
- Scalability – The option to connect up to 64 modules in parallel (max. 327 kWh) allows for capacity customization to meet home and commercial demands.
- Convenient installation – The 19″ rack-mounted design, along with options for floor or wall mounting and easy cable connections, ensures a quick and simple system startup.
Who is this a good choice for?
The Deye SE-G5.1 Pro-B energy storage system is an excellent solution for users seeking a reliable energy storage system. With its high energy density, extensive expansion possibilities, and advanced safety features, it is ideal for both residential and larger commercial projects, offering stability and efficiency for many years of operation.
| Parameter | Value |
|---|---|
| Model | SE-G5.1 Pro-B |
| Battery Chemistry | LiFePO4 |
| Capacity (Ah) | 100 |
| Scalability | Up to 64 sets (327 kWh) connected in parallel (up to 32 units without additional configuration) |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage (V) | 43.2 ~ 57.6 |
| Nominal Energy (kWh) | 5.12 |
| Usable Energy (kWh) | 4.6 |
| Recommended Charge/Discharge Current (A) | 50 |
| Max Charge/Discharge Current (A) | 100 |
| Peak Charge/Discharge Current (A) – 2 min, 25℃ | 150 |
| Recommended Depth of Discharge | 90% |
| Dimensions (W x H x D, mm) | 440 x 133 x 540 |
| Weight (kg) | 45 |
| Main LED Indicator | 5 LED (SOC: 20% ~ SOC 100%), 3 LED (operation, alarm, protection) |
| Enclosure Protection Class (IP) | IP20 |
| Operating Temperature – Charging | 0～55℃ (optional heating: -20℃ ~ 55℃) |
| Operating Temperature – Discharging | -20℃ ~ 55℃ |
| Storage Temperature | 0～35℃ |
| Humidity | 5% ~ 95% |
| Max Height (m) | ≤2000m |
| Life Cycle | ≥6000 (25℃±2℃, 0.5C/0.5C, 90% depth of discharge, 70% final capacity) |
| Mounting | Wall-mounted, floor-mounted, or in a rack (standard 19-inch rack, rack depth ≥600mm) |
| Communication Port | CAN2.0, RS485 |
| Warranty Period | 10 years |
| Energy Throughput | 16 MWh at 70% final capacity |
| Certificates | UN38.3, IEC62619, CE, UK, VDE2510-50, CEI 0-21, FCC, UL1973, UL9540A |
