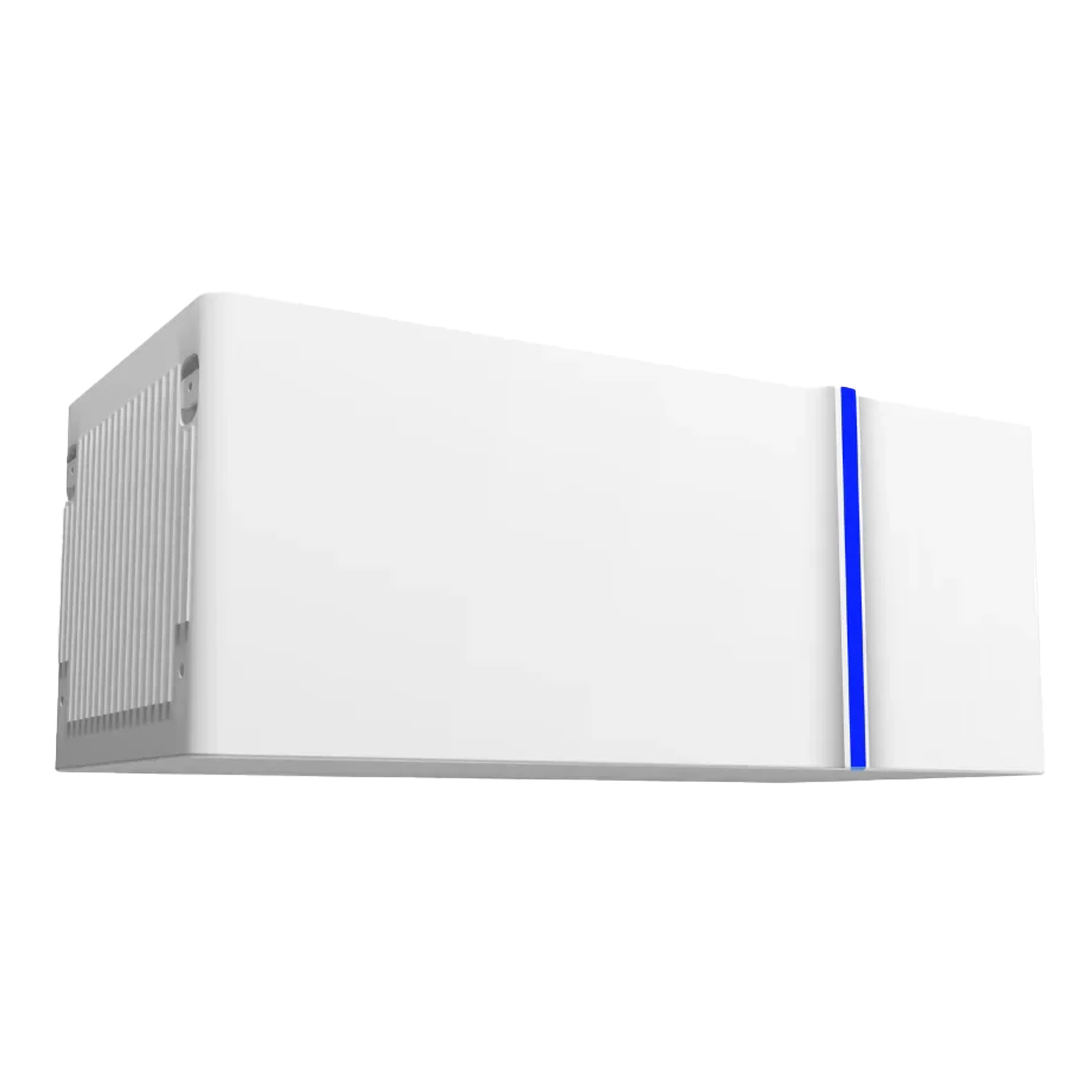

DEYE HV Battery Module GB-LM4.0
SKU: F11D811
EAN: 5905951587806
| Manufacturer | |
|---|---|
| Capacity | |
| CAN 2.0 | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 42 kg |
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| CAN 2.0 | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 42 kg |
Deye GB-L Energy Storage
The
Deye GB-L energy storage system is an innovative device that combines safety, efficiency, and advanced technology into a single compact solution. Equipped with thermal management and smart monitoring features, this storage system ensures reliability and long-lasting performance in various conditions.
Key features of the Deye GB-L energy storage system:
- Safety – A built-in fire protection system and an explosion gas venting device that immediately cuts off the source of fire when necessary.
- Scalability – Modules can be connected in series without the need for wired connections.
- Thermal management – Temperature detection of key components such as cells and power plugs.
- Wide operating temperature range – An optional heating feature allows the device to operate in low-temperature conditions, adapting to demanding applications.
- Smart and visual monitoring – Remote updates, real-time notifications, and data display on an LCD screen.
Who is it a good choice for?
The Deye GB-L energy storage system is an excellent solution for users who require reliability, safety, and flexibility in energy storage. It is perfectly suited for both residential and commercial installations, offering top-tier performance and advanced protection across a wide range of applications.
Warranty Deye HV Battery GB-LM4.0
warranty-deye-hv-battery-gb-lm4-0.pdf
| Parameter | 2 Modules | 3 Modules | 4 Modules | 5 Modules | 6 Modules |
|---|---|---|---|---|---|
| Main Parameters | |||||
| Cell Chemistry | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | |
| Module Energy (kWh) | 4.09 | 4.09 | 4.09 | 4.09 | |
| Nominal Module Voltage (V) | 102.4 | 102.4 | 102.4 | 102.4 | |
| Module Capacity (Ah) | 40 | 40 | 40 | 40 | |
| Nominal System Voltage (V) | 204.8 | 307.2 | 409.6 | 512 | |
| Operating Voltage Range (V) | 166.4 ~ 700 | 166.4 ~ 700 | 166.4 ~ 700 | 166.4 ~ 700 | |
| System Energy (kWh) | 8.18 | 12.27 | 16.36 | 20.45 | |
| Usable System Energy (kWh) | 7.36 | 11.04 | 14.72 | 18.40 | |
| Charging/Discharging Current (A) | Recommended: 20 Nominal: 40 Peak Discharge (2 minutes, 25°C): 50 |
Recommended: 20 Nominal: 40 Peak Discharge (2 minutes, 25°C): 50 |
Recommended: 20 Nominal: 40 Peak Discharge (2 minutes, 25°C): 50 |
Recommended: 20 Nominal: 40 Peak Discharge (2 minutes, 25°C): 50 |
Recommended: 20 Nominal: 40 Peak Discharge (2 minutes, 25°C): 50 |
| Operating Parameters | |||||
| Operating Temperature Range (°C) | Charging: 0 ~ 55 / Discharging: -20 ~ 60 | Charging: 0 ~ 55 / Discharging: -20 ~ 60 | Charging: 0 ~ 55 / Discharging: -20 ~ 60 | Charging: 0 ~ 55 / Discharging: -20 ~ 60 | |
| LCD Display | SOC%, Power, Total Voltage | SOC%, Power, Total Voltage | SOC%, Power, Total Voltage | SOC%, Power, Total Voltage | |
| Communication Port | CAN2.0, RS485 | CAN2.0, RS485 | CAN2.0, RS485 | CAN2.0, RS485 | |
| Humidity | 5% ~ 90% | 5% ~ 90% | 5% ~ 90% | 5% ~ 90% | |
| Max Height Above Sea Level | ≤2000m | ≤2000m | ≤2000m | ≤2000m | |
| Noise Level (dB) | <45 | <45 | <45 | <45 | |
| IP Protection Rating | IP65 | IP65 | IP65 | IP65 | |
| Inverter Topology | Transformer-less | Transformer-less | Transformer-less | Transformer-less | |
| Surge Category | OVC II (DC), OVC III (AC) | OVC II (DC), OVC III (AC) | OVC II (DC), OVC III (AC) | OVC II (DC), OVC III (AC) | |
| Dimensions (W×D×H, mm) | 540 × 385 × 650 | 540 × 385 × 870 | 540 × 385 × 1090 | 540 × 385 × 1310 | 540 × 385 × 1530 |
| Weight (kg) | 97 | 136 | 175 | 214 | 253 |
| Installation Location | Floor mounted | Floor mounted | Floor mounted | Floor mounted | |
| Recommended Depth of Discharge | 90% | 90% | 90% | 90% | |
| Lifecycle, Warranty, and Certification | |||||
| Lifecycle | (25±2°C, 0.5C/0.5C, 70% EOL) ≥6000 | (25±2°C, 0.5C/0.5C, 70% EOL) ≥6000 | (25±2°C, 0.5C/0.5C, 70% EOL) ≥6000 | (25±2°C, 0.5C/0.5C, 70% EOL) ≥6000 | |
| Warranty | 10 years | 10 years | 10 years | 10 years | |
| Certification | CE, IEC62619, VDE2510-50, UL1973, UL9540A, UN38.3 | CE, IEC62619, VDE2510-50, UL1973, UL9540A, UN38.3 | CE, IEC62619, VDE2510-50, UL1973, UL9540A, UN38.3 | CE, IEC62619, VDE2510-50, UL1973, UL9540A, UN38.3 | |
