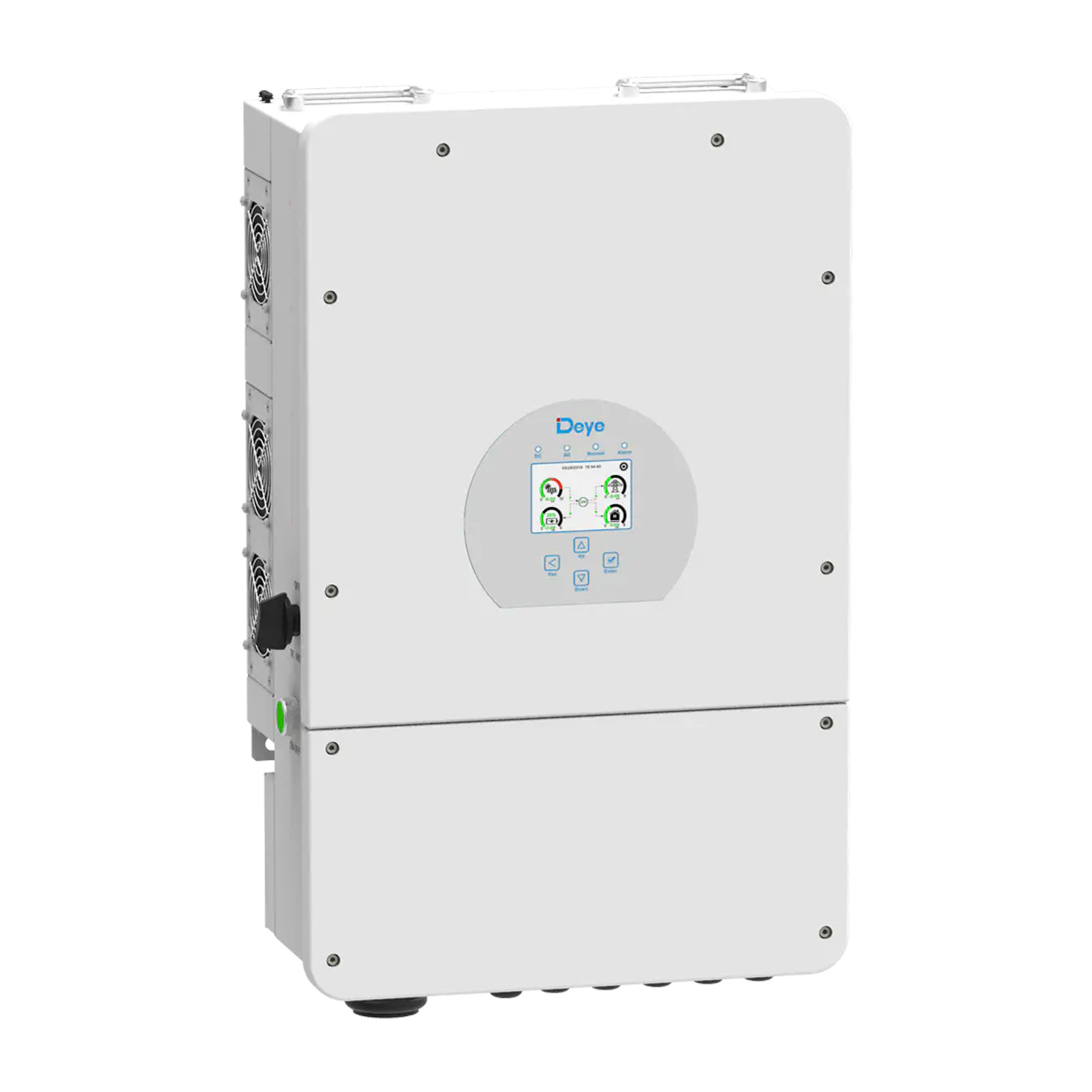

DEYE SUN-8K-SG01LP1-EU Inverter
SKU: F20GW2
EAN: 5905951587776
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| RS485 | |
| SPD Type II | |
| Weight | 38,38 kg |
Net price
1 628,83 €
Gross
Gross
List of compatible storage batteries Deye SUN-8K-SG01LP1-EU
list-of-compatible-storage-batteries-deye-sun-8k-sg01lp1-eu.pdf
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| RS485 | |
| SPD Type II | |
| Weight | 38,38 kg |
Deye SUN-8K-SG01LP1-EU Inverter
The
Deye SUN-8K-SG01LP1-EU inverter is an advanced hybrid device that integrates modern energy management technologies, offering reliability and versatility for various applications.
Key Features of the Deye SUN-8K-SG01LP1-EU Inverter:
- Color Touchscreen LCD – With an IP65 protection rating, it allows for installation both indoors and outdoors.
- 6 charging and discharging periods – Flexibility in energy management for maximum savings.
- Charging/Discharging Current up to 190A – Ensures efficient energy utilization.
- Frequency Droop Control – Supports up to 16 devices in parallel.
- Compatibility with Generators – Enables energy storage generated by diesel generators.
Who is it a good choice for?
The
Deye SUN-8K-SG01LP1-EU inverter is an ideal choice for users who need a flexible and advanced energy management solution in photovoltaic systems. It excels in hybrid installations, retrofitted systems, and as support for diesel generators.
List of compatible storage batteries Deye SUN-8K-SG01LP1-EU
list-of-compatible-storage-batteries-deye-sun-8k-sg01lp1-eu.pdf
| Parameter | SUN-8K-SG01LP1-EU |
|---|---|
| Battery Input Data | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Maximum Charging Current (A) | 190 |
| Maximum Discharging Current (A) | 190 |
| Charging Curve | 3 stages / Balancing |
| External Temperature Sensor | Yes |
| Lithium-ion Battery Charging Curve | Self-adaptation to BMS |
| PV Input Data | |
| Maximum PV Input Power (W) | 10,400 |
| Maximum DC Voltage (V) | 370 (100 V-500 V) |
| MPPT Voltage Range (V) | 125-425 |
| Start-Up Voltage (V) | 150 |
| PV Input Current (A) | 22+22 |
| Number of MPPT Trackers | 2 |
| Number of Strings per MPPT Tracker | 2+2 |
| AC Output Data | |
| Rated AC and UPS Power (W) | 8,000 |
| Maximum AC Output Power (W) | 8,800 |
| Peak Power (off-grid) (W) | 2 times the rated power for 10 s |
| Rated AC Output Current (A) | 35 |
| Maximum AC Current (A) | 38.5 |
| Maximum Continuous AC Load (A) | 50 |
| Output Frequency / Voltage Range (V) | 50/60 Hz; 230 V (single-phase) |
| Grid Type | Single-phase |
| Total Harmonic Distortion (THD) (%) | THD < 3% (linear load < 1.5%) |
| Efficiency | |
| Maximum Efficiency (%) | 97.6 |
| European Efficiency (%) | 97.0 |
| MPPT Efficiency (%) | 99.0 |
| Protection | |
| PV Surge Protection | Integrated |
| Anti-Islanding Protection | Integrated |
| Reverse Polarity Protection for PV String | Integrated |
| Isolation Detection | Integrated |
| Residual Current Monitoring (RCD) | Integrated |
| PV String Monitoring | Integrated |
| Output Short-Circuit Protection | Integrated |
| Output Surge Protection | Integrated |
| Surge Protection Level | DC Type II / AC Type II |
| Certifications and Standards | |
| Grid Regulations | VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62166, IEC61727 |
| Safety Standards | IEC62109-1, IEC62109-2 |
| EMC | EN61000-6-1, EN61000-6-3, FCC 15 Class B |
| General Data | |
| Operating Temperature Range (°C) | -25 to 60, derating above 45°C |
| Cooling | Intelligent Cooling |
| Noise Level (dB) | <30 |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 32 |
| Dimensions (W × H × D, mm) | 420 × 670 × 233 |
| Protection Level | IP65 |
| Installation Method | Wall-mounted |
| Warranty | 5 years |
