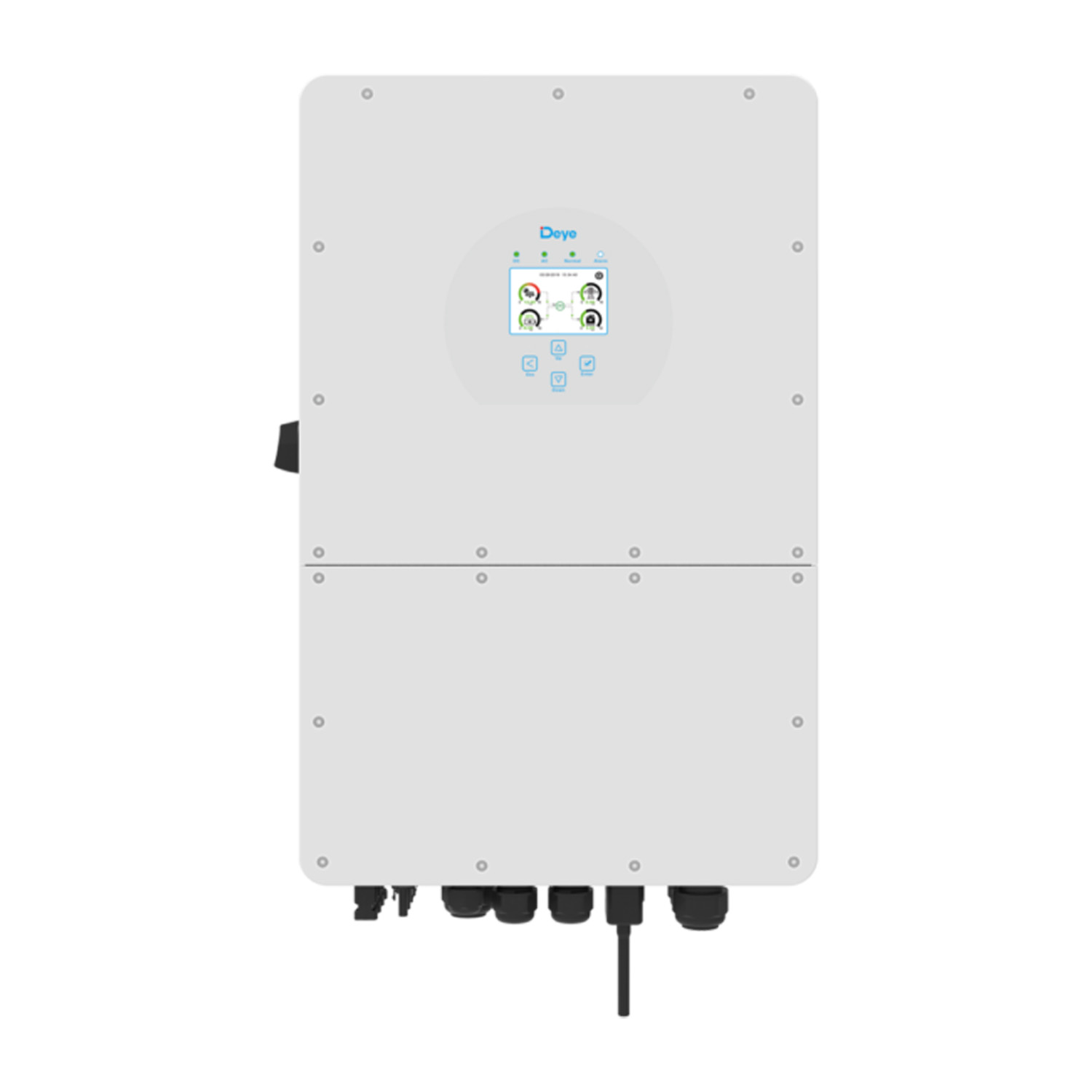

DEYE SUN-8K-SG04LP3-EU Inverter
SKU: F20GZ1
EAN: 5905951584140
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| RS485 | |
| SPD Type II | |
| SPD Typ III | |
| Weight | 47,8 kg |
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| RS485 | |
| SPD Type II | |
| SPD Typ III | |
| Weight | 47,8 kg |
Deye SUN-5/6/8/10/12 K-SG04LP3-EU Hybrid Three-Phase Inverter
The Deye SUN-5/6/8/10/12 K-SG04LP3-EU series of hybrid three-phase inverters is designed for advanced photovoltaic installations. Featuring sophisticated energy management functions and the ability to operate in both on-grid and off-grid modes, these inverters provide reliability and flexibility tailored to the needs of industrial users and households.
Key Features of the Deye SUN-5/6/8/10/12 K-SG04LP3-EU Inverters:
- Support for Unbalanced Load – 100% unbalanced power for each phase, with a maximum output power of up to 50% of the nominal power ensures stable and efficient operation.
- Flexible Connections – The ability to connect to both DC and AC power facilitates the upgrade of existing solar systems.
- Support for Multiple Batteries – Up to 16 batteries in parallel provide high scalability and reliability in energy storage.
- Maximum Charging/Discharging Current of 240A – High energy efficiency during the charging and discharging processes of batteries.
- Low-Voltage 48V Battery – Transformer isolation enhances the safety and reliability of the system operation.
- 6 Charging/Discharging Periods – Flexible energy management tailored to various user needs.
- Support for Energy Storage with Diesel Generators – Increases energy independence and allows for integration with backup power systems.
Who is this a good choice for?
The Deye SUN-5/6/8/10/12 K-SG04LP3-EU hybrid three-phase inverters are an excellent solution for large industrial, commercial installations, and demanding households. With advanced energy management features, scalability, and high reliability, these devices will meet the needs of the most discerning users.
Manual Deye SUN-8K-SG04LP3-EU
manual-deye-sun-8k-sg04lp3-eu.pdf
| Model | SUN-5K-SG04LP3-EU | SUN-6K-SG04LP3-EU | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU |
|---|---|---|---|---|---|
| Battery Input Data | |||||
| Battery Type | Lead-acid or Lithium-ion | Lead-acid or Lithium-ion | Lead-acid or Lithium-ion | Lead-acid or Lithium-ion | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40~60 | 40~60 | 40~60 | 40~60 | 40~60 |
| Max Charging Current (A) | 120 | 150 | 190 | 210 | 240 |
| Max Discharging Current (A) | 120 | 150 | 190 | 210 | 240 |
| External Temperature Sensor | Yes | Yes | Yes | Yes | Yes |
| Charging Curve | 3 stages / equalization | 3 stages / equalization | 3 stages / equalization | 3 stages / equalization | 3 stages / equalization |
| Charging Strategy for Lithium-ion Battery | Self-adaptation to BMS | Self-adaptation to BMS | Self-adaptation to BMS | Self-adaptation to BMS | Self-adaptation to BMS |
| PV Input Data | |||||
| Max Input Power DC (W) | 6500 | 7800 | 10400 | 13000 | 15600 |
| Rated Input Voltage PV (V) | 550 (160~800) | 550 (160~800) | 550 (160~800) | 550 (160~800) | 550 (160~800) |
| Starting Voltage (V) | 160 | 160 | 160 | 160 | 160 |
| MPPT Voltage Range (V) | 200-650 | 200-650 | 200-650 | 200-650 | 200-650 |
| DC Voltage Range under Full Load (V) | 350-650 | 350-650 | 350-650 | 350-650 | 350-650 |
| PV Input Current (A) | 13+13 | 13+13 | 13+13 | 26+13 | 26+13 |
| Max PV ISC (A) | 17+17 | 17+17 | 17+17 | 34+17 | 34+17 |
| Number of MPPT / Strings per MPPT | 2/1+1 | 2/1+1 | 2/1+1 | 2/2+1 | 2/2+1 |
| AC Output Data | |||||
| Rated AC Output and UPS Power (W) | 5000 | 6000 | 8000 | 10000 | 12000 |
| Max AC Output Power (W) | 5500 | 6600 | 8800 | 11000 | 13200 |
| Rated Output Current (AC) (A) | 7.6 | 9.1 | 12.1 | 15.2 | 18.2 |
| Max AC Current (A) | 11.4 | 13.6 | 18.2 | 22.7 | 27.3 |
| Max Continuous AC Current (A) | 45 | 45 | 45 | 45 | 45 |
| Peak Power (Off-grid) | 2 times rated power, 10 S | 2 times rated power, 10 S | 2 times rated power, 10 S | 2 times rated power, 10 S | 2 times rated power, 10 S |
| Power Factor | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac | 50/60Hz; 3L/N/PE 220/380, 230/400Vac | 50/60Hz; 3L/N/PE 220/380, 230/400Vac | 50/60Hz; 3L/N/PE 220/380, 230/400Vac | 50/60Hz; 3L/N/PE 220/380, 230/400Vac |
| Grid Type | Three-phase | Three-phase | Three-phase | Three-phase | Three-phase |
| DC Injection Current (mA) | TTHD < 3% (Linear Load < 1.5%) | TTHD < 3% (Linear Load < 1.5%) | TTHD < 3% (Linear Load < 1.5%) | TTHD < 3% (Linear Load < 1.5%) | TTHD < 3% (Linear Load < 1.5%) |
| Efficiency | |||||
| Max Efficiency | 97.60% | 97.60% | 97.60% | 97.60% | 97.60% |
| Euro Efficiency | 97.00% | 97.00% | 97.00% | 97.00% | 97.00% |
| MPPT Efficiency | 99.90% | 99.90% | 99.90% | 99.90% | 99.90% |
| Protection | |||||
| Integration | Lightning protection at the PV input, anti-islanding protection, reverse polarity protection at the PV string input, insulation resistance detection, residual current monitoring module, overcurrent protection at the output, short circuit protection at the output, surge protection | Lightning protection at the PV input, anti-islanding protection, reverse polarity protection at the PV string input, insulation resistance detection, residual current monitoring module, overcurrent protection at the output, short circuit protection at the output, surge protection | Lightning protection at the PV input, anti-islanding protection, reverse polarity protection at the PV string input, insulation resistance detection, residual current monitoring module, overcurrent protection at the output, short circuit protection at the output, surge protection | Lightning protection at the PV input, anti-islanding protection, reverse polarity protection at the PV string input, insulation resistance detection, residual current monitoring module, overcurrent protection at the output, short circuit protection at the output, surge protection | Lightning protection at the PV input, anti-islanding protection, reverse polarity protection at the PV string input, insulation resistance detection, residual current monitoring module, overcurrent protection at the output, short circuit protection at the output, surge protection |
| Output Overvoltage Protection | DC type II/AC type III | DC type II/AC type III | DC type II/AC type III | DC type II/AC type III | DC type II/AC type III |
| Certifications and Standards | |||||
| Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 |
| EMC Safety / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| General Data | |||||
| Operating Temperature Range (°C) | -45~60℃, >45℃ derating | -45~60℃, >45℃ derating | -45~60℃, >45℃ derating | -45~60℃, >45℃ derating | -45~60℃, >45℃ derating |
| Cooling | Intelligent Cooling | Intelligent Cooling | Intelligent Cooling | Intelligent Cooling | Intelligent Cooling |
| Noise (dB) | <45 dB | <45 dB | <45 dB | <45 dB | <45 dB |
| BMS Communication | RS485; CAN | RS485; CAN | RS485; CAN | RS485; CAN | RS485; CAN |
| Weight (kg) | 33.6 | 33.6 | 33.6 | 33.6 | 33.6 |
| Size (mm) | 422 W x 699.3 H x 279 D | 422 W x 699.3 H x 279 D | 422 W x 699.3 H x 279 D | 422 W x 699.3 H x 279 D | 422 W x 699.3 H x 279 D |
| Protection Class | IP65 | IP65 | IP65 | IP65 | IP65 |
| Installation Style | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted |
| Warranty | |||||
| Warranty | 5 years | 5 years | 5 years | 5 years | 5 years |
