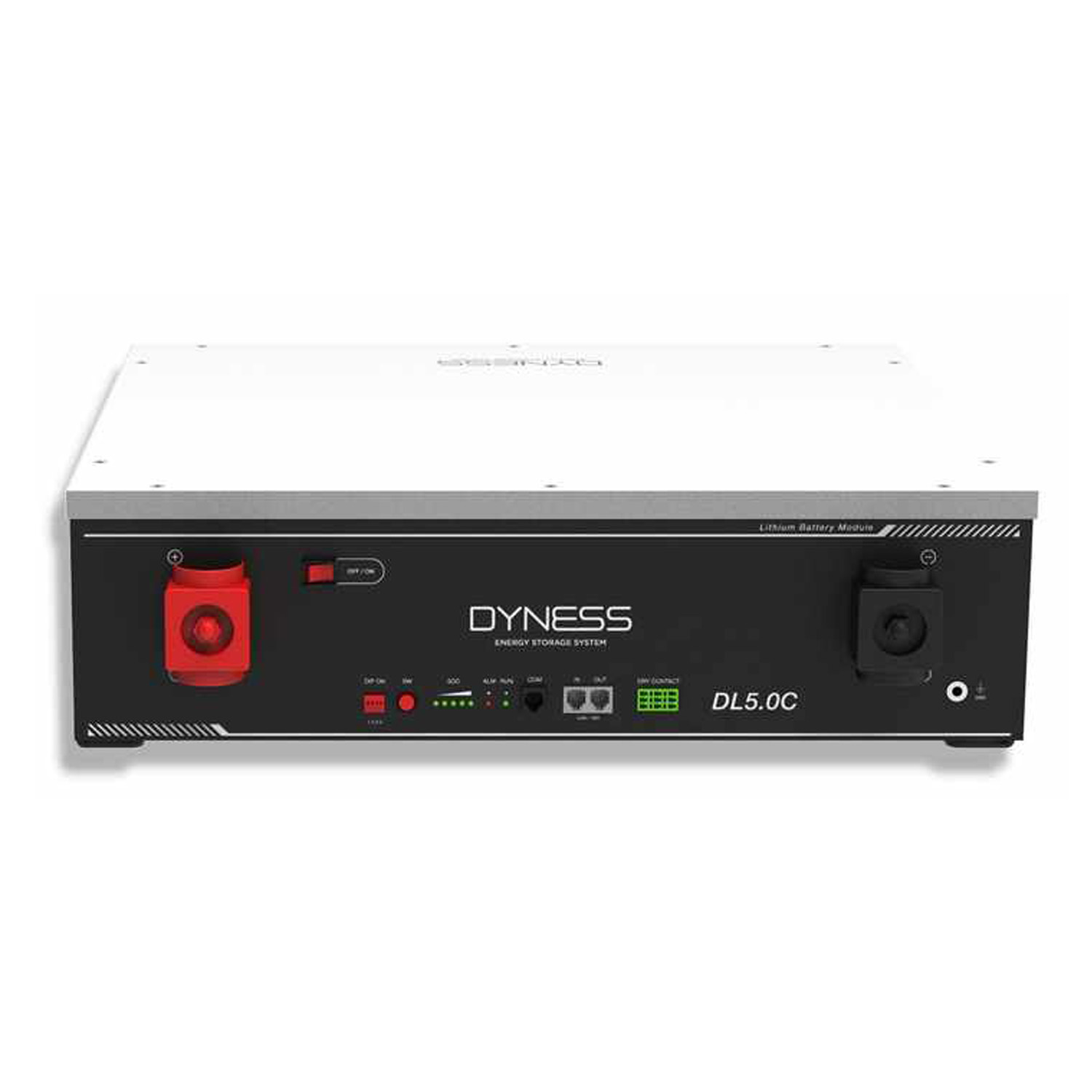

DYNESS Battery LV DL5.0C 5.12 kWh Battery Module

SKU: F12B3 EAN: 2010000029510
Manufacturer

Capacity

Number of charging cycles

Module voltage

Charging current

Discharge current

Required number of modules

Depth of Discharge

CAN

RS485

RS232

Warranty

Net width

Net depth

Net height

Weight 59 kg
Net price 974,36
Gross

974,36
Gross

974,36
Gross

Test report Dyness Battery LV DL5.0C 5,12 kWh test-report-dyness-battery-lv-dl5-0c-512-kwh.pdf

Product details

Manufacturer

Capacity

Number of charging cycles

Module voltage

Charging current

Discharge current

Required number of modules

Depth of Discharge

CAN

RS485

RS232

Warranty

Net width

Net depth

Net height

Weight 59 kg

Dyness DLC 5.0C Series

The Dyness DLC 5.0C energy storage modules are a modern solution built on lithium iron phosphate technology, designed for high efficiency and long-lasting reliability. With an intelligent battery management system, these modules ensure safe and stable energy storage, even in demanding conditions.

Key Features of the Dyness DLC 5.0C Series Modules:

  • Advanced LiFePO4 Technology – ensures high efficiency, long lifespan, and minimal cell degradation.
  • Intelligent BMS System – monitors cell status, protects against overheating and excessive discharge, ensuring safe operation.
  • Robust Construction – a durable casing and resistance to extreme environmental conditions guarantee module reliability in any situation.
  • Fast Charging and Discharging – optimal operating parameters enable efficient use of stored energy, both in residential and commercial installations.
  • Long-Term Warranty – an extended product warranty and performance guarantee attest to the high quality and reliability of the modules.

Who is this a good choice for?

The Dyness DLC 5.0C series is an ideal solution for customers seeking modern and efficient energy storage systems. These modules are perfect for residential installations, enhancing energy independence, as well as for industrial applications where stability and high performance are required.

Test report Dyness Battery LV DL5.0C 5,12 kWh test-report-dyness-battery-lv-dl5-0c-512-kwh.pdf

Parameter Dyness DLC 5.0C
Electrical Data
Battery Type LiFePO4
Nominal Battery Energy [kWh] 5.12
Nominal Capacity [Ah] 100
Nominal Voltage [V] 51.2
Operating Voltage [V] 48 ~ 54.4
Recommended Charge/Discharge C Rate 0.5C
Max Charge/Discharge C Rate 1C
Recommended Charge/Discharge Current [A] 50
Max Charge/Discharge Current [A] Charging: 75A / Discharging: 100A
Peak Discharge Current [A] 110 (15 s)
Mechanical Data
Dimensions (W / H / D) [mm] 558 / 545 / 150
Weight [kg] 54
Operating Conditions
Charging Temperature [°C] 0 ~ +55 / -20 ~ +55 (with heating function)
Discharging Temperature [°C] -20 ~ +55
Cycle Life Up to 6000 cycles
Protection Level IP20
Functions and Communication
Communication CAN / RS485 / RS232
WiFi Module Optional
Expandable (Parallel) Up to 50 units in parallel
Certificates and Compatibility
Certifications and Standards UN38.3 / CE-EMC / IEC62619 / CEI-021/GOST-R
Compatible Inverters SMA / Schneider / Victron / Ingeteam / Solis / Goodwe / Growatt / Soplanet / Luxpower / DEYE, etc.
