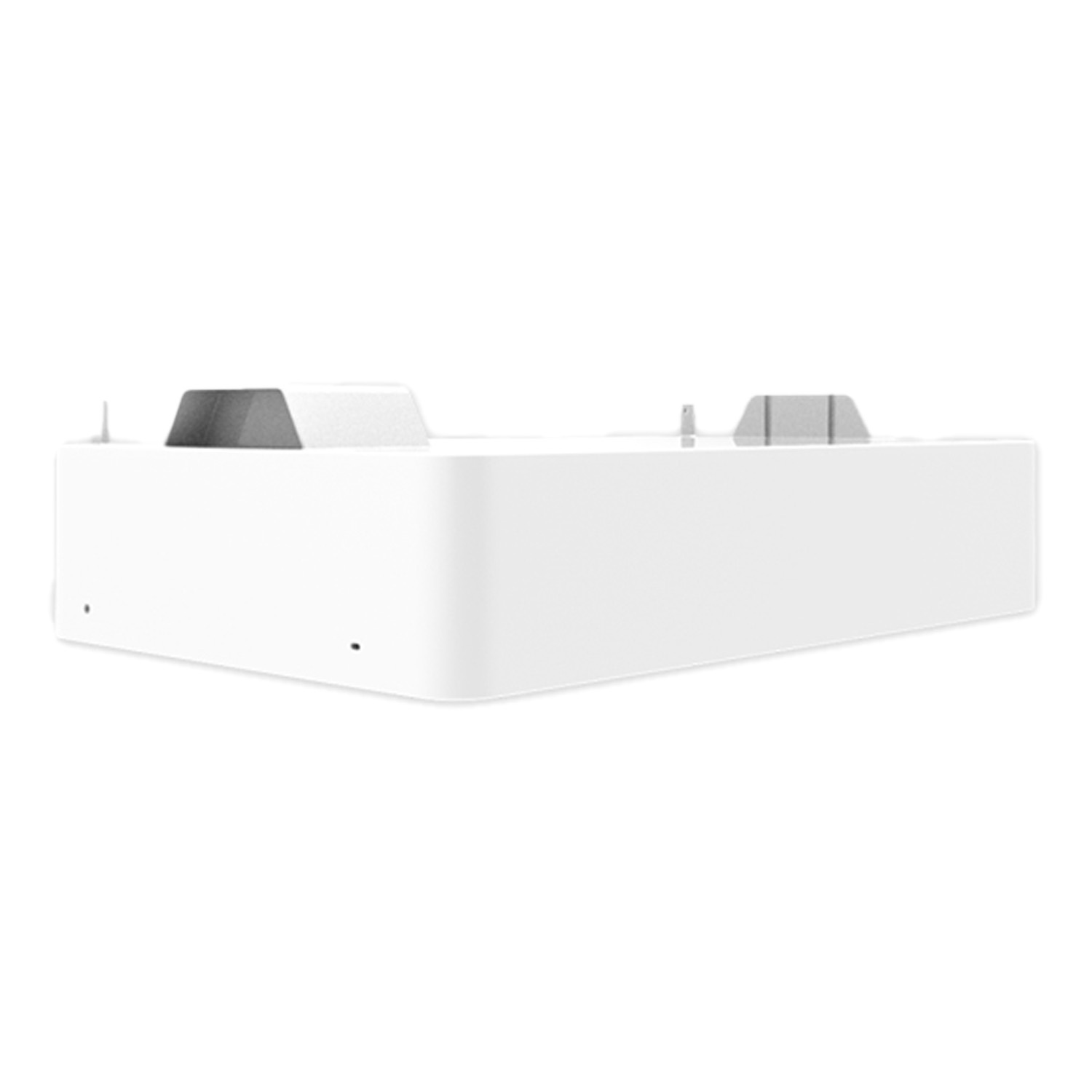

FoxESS Energy Cube CS2900 – battery 2.88 kWh
SKU: F11CF
EAN: 2010000029794
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Depth of Discharge | |
| Weight | 34,42 kg |
| CN | 85076000 |
Net price
779,54 €
Gross
Gross
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Depth of Discharge | |
| Weight | 34,42 kg |
| CN | 85076000 |
Fox ESS Energy Storage System Series ECS
The Fox ESS energy storage systems in the ECS series are high-performance, high-voltage solutions based on lithium iron phosphate (LiFePO4) technology. With a modular design, these systems offer exceptional flexibility, allowing for easy capacity expansion to meet individual energy needs. They are designed to maximize self-consumption of energy from photovoltaic installations and provide reliable power supply.
Key Features of the Fox ESS ECS System:
- Modular Design and Scalability: Easily expand the system by adding battery modules (each with a capacity of 2.88 kWh) up to a maximum capacity of 20.16 kWh (7 modules connected in series).
- High Depth of Discharge (DoD): Utilize up to 90% of stored energy, maximizing the storage efficiency.
- Long Lifespan and Safety: The use of safe LiFePO4 cells ensures a long lifespan exceeding 6000 charge/discharge cycles and a high level of safety (compliant with IEC 62619 standard).
- Easy Installation and Flexibility: Simple “stackable” module installation saves installer time, and the IP65 protection rating allows for installation both indoors and outdoors.
- High Efficiency: The efficiency of the entire charge and discharge cycle exceeds 95%, minimizing energy losses.
- Wide Operating Temperature Range: The system can operate in a wide temperature range (charging 0-55°C, discharging -10-55°C), ensuring reliability in various climatic conditions.
Who is it a Good Choice For?
The Fox ESS energy storage system series ECS is an excellent choice for homeowners and small businesses with photovoltaic installations who want to increase their energy independence, optimize the use of generated energy, and lower electricity bills. Its modular construction makes it a flexible solution that can be tailored to current demands and expanded in the future.
| Model | ECS2900-H2 | ECS2900-H3 | ECS2900-H4 | ECS2900-H5 | ECS2900-H6 | ECS2900-H7 |
|---|---|---|---|---|---|---|
| OPERATIONAL CHARACTERISTICS | ||||||
| Battery Type | LiFePO4 Prismatic Cell | LiFePO4 Prismatic Cell | LiFePO4 Prismatic Cell | LiFePO4 Prismatic Cell | LiFePO4 Prismatic Cell | LiFePO4 Prismatic Cell |
| Battery Pack | 1*CM2900 1*CS2900 |
1*CM2900 2*CS2900 |
1*CM2900 3*CS2900 |
1*CM2900 4*CS2900 |
1*CM2900 5*CS2900 |
1*CM2900 6*CS2900 |
| Nominal Capacity [Wh] | 5760 | 8640 | 11520 | 14400 | 17280 | 20160 |
| Nominal Voltage [V] | 115.2 | 172.8 | 230.4 | 288 | 345.6 | 403.2 |
| Operating Voltage [V] | 97.2 ~ 131.4 | 145.8 ~ 197.1 | 194.4 ~ 262.8 | 243 ~ 328.5 | 291.6 ~ 394.2 | 340.2 ~ 459.9 |
| Recommended Discharge Current [A] | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Charge/Discharge Current [A] | 50 | 50 | 50 | 50 | 50 | 50 |
| Peak Discharge Current [A] | 65 @60sec | 65 @60sec | 65 @60sec | 65 @60sec | 65 @60sec | 65 @60sec |
| Battery Efficiency (Cycle Whole) [%] | >95 | >95 | >95 | >95 | >95 | >95 |
| Depth of Discharge [%] | 90 | 90 | 90 | 90 | 90 | 90 |
| Cycling Quantity*¹ | ≥6000 | ≥6000 | ≥6000 | ≥6000 | ≥6000 | ≥6000 |
| Communication | CAN, RS485 | CAN, RS485 | CAN, RS485 | CAN, RS485 | CAN, RS485 | CAN, RS485 |
| Display | CS: LED*1, CM: LED*6 | CS: LED*1, CM: LED*6 | CS: LED*1, CM: LED*6 | CS: LED*1, CM: LED*6 | CS: LED*1, CM: LED*6 | CS: LED*1, CM: LED*6 |
| Scalability | Max. 7 modules in series | Max. 7 modules in series | Max. 7 modules in series | Max. 7 modules in series | Max. 7 modules in series | Max. 7 modules in series |
| OPERATING CONDITIONS | ||||||
| Installation Location | Outdoor / Indoor (On a stable base) | Outdoor / Indoor (On a stable base) | Outdoor / Indoor (On a stable base) | Outdoor / Indoor (On a stable base) | Outdoor / Indoor (On a stable base) | Outdoor / Indoor (On a stable base) |
| Operating Temperature [°C]*² | Charging: 0 ~ 55 Discharging -10 ~ 55 |
Charging: 0 ~ 55 Discharging -10 ~ 55 |
Charging: 0 ~ 55 Discharging -10 ~ 55 |
Charging: 0 ~ 55 Discharging -10 ~ 55 |
Charging: 0 ~ 55 Discharging -10 ~ 55 |
Charging: 0 ~ 55 Discharging -10 ~ 55 |
| Storage Temperature [°C] | -20 ~ 55 | -20 ~ 55 | -20 ~ 55 | -20 ~ 55 | -20 ~ 55 | -20 ~ 55 |
| Cooling Method | Convection | Convection | Convection | Convection | Convection | Convection |
| Humidity [%] | 5 ~ 95 (No condensation) | 5 ~ 95 (No condensation) | 5 ~ 95 (No condensation) | 5 ~ 95 (No condensation) | 5 ~ 95 (No condensation) | 5 ~ 95 (No condensation) |
| Height [m] | Max. 2000 | Max. 2000 | Max. 2000 | Max. 2000 | Max. 2000 | Max. 2000 |
| MECHANICAL CHARACTERISTICS | ||||||
| Dimensions (L*W*H) [mm] | 570*350*380 | 570*470*380 | 570*590*380 | 570*710*380 | 570*830*380 | 570*950*380 |
| Weight [kg] | 68.3 | 100.3 | 132.3 | 164.3 | 196.3 | 228.3 |
| CERTIFICATIONS | ||||||
| Safety | IEC 62619 | IEC 62619 | IEC 62619 | IEC 62619 | IEC 62619 | IEC 62619 |
| EMC | EN IEC 61000-6-1/2/3/4 | EN IEC 61000-6-1/2/3/4 | EN IEC 61000-6-1/2/3/4 | EN IEC 61000-6-1/2/3/4 | EN IEC 61000-6-1/2/3/4 | EN IEC 61000-6-1/2/3/4 |
| Transportation | UN38.3 | UN38.3 | UN38.3 | UN38.3 | UN38.3 | UN38.3 |
| Degree of Protection | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
