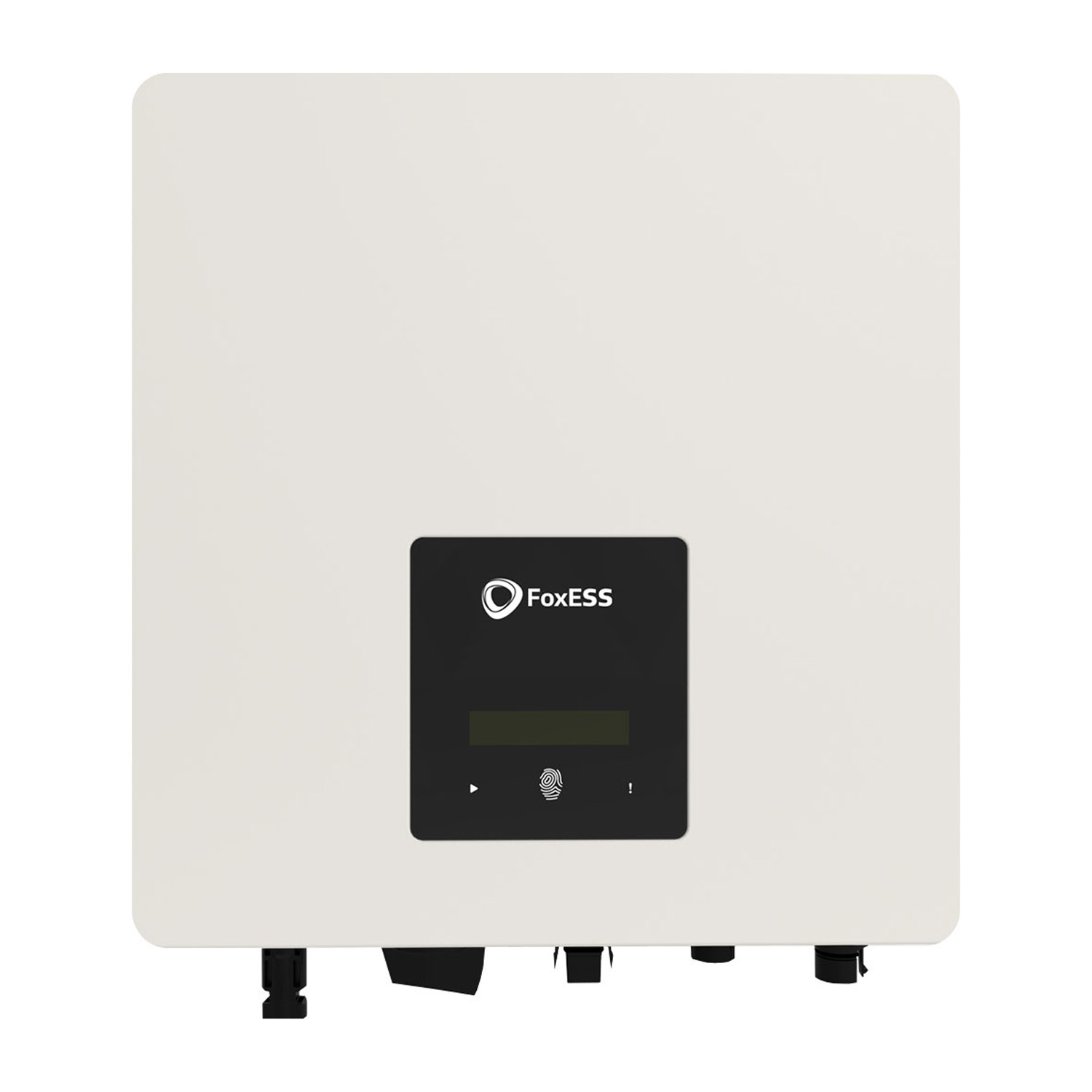

FoxESS S3000 Inverter / Single-phase

SKU: F29003 EAN: 5905951582610
FoxESS S3000 Inverter / Single-phase
Manufacturer

Power supply

Hybrid device

MPPT

Warranty

Net width

Net depth

Net height

RS485

SPD Type II

Weight 10,8 kg
Net price 312,57 €
Gross

312,57 €
Gross

312,57 €
Gross

Datasheet FoxESS S3000 / 1-phase datasheet-foxess-s3000-1-phase.pdf

Product details

Manufacturer

Power supply

Hybrid device

MPPT

Warranty

Net width

Net depth

Net height

RS485

SPD Type II

Weight 10,8 kg

FoxESS Series S(G2) 700-3300 – Single-Phase Inverters with One MPPT

The FoxESS Series S(G2) inverters are refined, powerful, and flexible devices that deliver top-notch performance in a compact design. With a single MPPT input and an efficiency of up to 97.4%, these models are perfect for small to medium photovoltaic installations. Their low startup voltage and IP65 protection make them incredibly reliable and versatile in various environmental conditions, suitable for both indoor and outdoor setups.

Key Product Features

  • High Efficiency: An efficiency rating of 97.4% with a wide MPPT voltage range and low startup voltage.
  • Easy Integration: Optimized for compatibility with FoxESS energy storage systems (requires additional equipment).
  • IP65 Protection: Weather-resistant, making the inverter ideal for outdoor installations.
  • Remote Monitoring: System monitoring via a smartphone app or online portal.
  • Compact Design: Small size and lightweight construction simplify installation and transportation.

Who is it a good choice for?

The FoxESS Series S(G2) 700-3300 is an excellent choice for homeowners and small commercial installations. With its compact dimensions and high efficiency, these inverters are ideal for installation in limited spaces. Advanced monitoring features and installation flexibility make this product suitable for both new PV installations and upgrading existing systems.

Datasheet FoxESS S3000 / 1-phase datasheet-foxess-s3000-1-phase.pdf

PV Input
Parameter S700 G2 S1000 G2 S1500 G2 S2000 G2 S2500 G2 S3000 G2 S3300 G2
Maximum Recommended DC Power [W] 1050 1500 2250 3000 3750 4500 4950
Maximum DC Voltage [V] 500 500 500 500 500 500 500
Nominal Operating DC Voltage [V] 360 360 360 360 360 360 360
Maximum Input Current [A] 14 14 14 14 14 14 14
Maximum Short Circuit Current [A] 18 18 18 18 18 18 18
MPPT Voltage Range [V] 50-480 50-480 50-480 50-480 50-480 50-480 50-480
Starting Voltage [V] 60 60 60 60 60 60 60
Number of MPPT Trackers 1 1 1 1 1 1 1
Strings per MPPT Tracker 1 1 1 1 1 1 1
AC Output
Nominal AC Power [W] 700 1000 1500 2000 2500 3000 3300
Maximum Apparent AC Power [VA] 800 1100 1650 2200 2750 3300 3300
Nominal Grid Voltage [Vac] 220/230/240 220/230/240 220/230/240 220/230/240 220/230/240 220/230/240 220/230/240
Nominal Grid Frequency [Hz] 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Nominal AC Current [A] 3.0 4.3 6.5 8.7 10.9 13.0 14.3
Maximum AC Current [A] 3.5 4.8 7.2 9.6 12.0 14.3 14.3
Power Factor 1 (Adjustable from 0.8 leading to 0.8 lagging) 1 (Adjustable from 0.8 leading to 0.8 lagging) 1 (Adjustable from 0.8 leading to 0.8 lagging) 1 (Adjustable from 0.8 leading to 0.8 lagging) 1 (Adjustable from 0.8 leading to 0.8 lagging) 1 (Adjustable from 0.8 leading to 0.8 lagging) 1 (Adjustable from 0.8 leading to 0.8 lagging)
THDi (nominal power) <3% <3% <3% <3% <3% <3% <3%
Efficiency
MPPT Efficiency [%] 99.00% 99.00% 99.00% 99.00% 99.00% 99.00% 99.00%
European Efficiency [%] 96.50% 96.50% 96.50% 96.80% 96.80% 96.80% 96.80%
Maximum Efficiency [%] 97.20% 97.20% 97.30% 97.40% 97.40% 97.40% 97.40%
Protections
DC Reverse Polarity Protection YES YES YES YES YES YES YES
Island Operation Protection YES YES YES YES YES YES YES
Insulation Monitoring YES YES YES YES YES YES YES
Residual Current Protection YES YES YES YES YES YES YES
AC Short-Circuit Protection YES YES YES YES YES YES YES
Overcurrent Protection for AC Output YES YES YES YES YES YES YES
Overvoltage Protection on AC Output YES YES YES YES YES YES YES
Surge Protection YES YES YES YES YES YES YES
Temperature Protection YES YES YES YES YES YES YES
Built-in DC Disconnect YES YES YES YES YES YES YES
Standards
Safety IEC 62109-1/2 IEC 62109-1/2 IEC 62109-1/2 IEC 62109-1/2 IEC 62109-1/2 IEC 62109-1/2 IEC 62109-1/2
EMC IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Certification EN 50549; C10/11; IEC 61727; ABNT NBR 16149/16150; IEC62116 EN 50549; C10/11; IEC 61727; ABNT NBR 16149/16150; IEC62116 EN 50549; C10/11; IEC 61727; ABNT NBR 16149/16150; IEC62116 EN 50549; C10/11; IEC 61727; ABNT NBR 16149/16150; IEC62116 EN 50549; C10/11; IEC 61727; ABNT NBR 16149/16150; IEC62116 EN 50549; C10/11; IEC 61727; ABNT NBR 16149/16150; IEC62116 EN 50549; C10/11; IEC 61727; ABNT NBR 16149/16150; IEC62116
General Information
Dimensions (H*W*D) [mm] 290*220*116 290*220*116 290*220*116 290*220*116 290*220*116 290*220*116 290*220*116
Weight [kg] 5.4 5.4 5.4 5.4 5.4 5.4 5.4
Cooling Natural (Convection) Natural (Convection) Natural (Convection) Natural (Convection) Natural (Convection) Natural (Convection) Natural (Convection)
Topology Transformerless Transformerless Transformerless Transformerless Transformerless Transformerless Transformerless
Protection Degree (according to IEC60529) IP65 IP65 IP65 IP65 IP65 IP65 IP65
Surge Category III (AC side), II (PV side) III (AC side), II (PV side) III (AC side), II (PV side) III (AC side), II (PV side) III (AC side), II (PV side) III (AC side), II (PV side) III (AC side), II (PV side)
Typical Noise Level [dB] <30 <30 <30 <30 <30 <30 <30
Maximum Operating Height [m] 3000 3000 3000 3000 3000 3000 3000
Operating Temperature Range [°C] -25 / +60 -25 / +60 -25 / +60 -25 / +60 -25 / +60 -25 / +60 -25 / +60
Humidity 0-100% (non-condensing) 0-100% (non-condensing) 0-100% (non-condensing) 0-100% (non-condensing) 0-100% (non-condensing) 0-100% (non-condensing) 0-100% (non-condensing)
Self-consumption (night) [W] <3 <3 <3 <3 <3 <3 <3
Monitoring Module WIFI (standard) / GPRS (optional) / LAN (optional) WIFI (standard) / GPRS (optional) / LAN (optional) WIFI (standard) / GPRS (optional) / LAN (optional) WIFI (standard) / GPRS (optional) / LAN (optional) WIFI (standard) / GPRS (optional) / LAN (optional) WIFI (standard) / GPRS (optional) / LAN (optional) WIFI (standard) / GPRS (optional) / LAN (optional)
Communication RS485, meter, CT, ISO alarm RS485, meter, CT, ISO alarm RS485, meter, CT, ISO alarm RS485, meter, CT, ISO alarm RS485, meter, CT, ISO alarm RS485, meter, CT, ISO alarm RS485, meter, CT, ISO alarm
Display LCD, Touch Button, Mobile App, Web, Menu PL LCD, Touch Button, Mobile App, Web, Menu PL LCD, Touch Button, Mobile App, Web, Menu PL LCD, Touch Button, Mobile App, Web, Menu PL LCD, Touch Button, Mobile App, Web, Menu PL LCD, Touch Button, Mobile App, Web, Menu PL LCD, Touch Button, Mobile App, Web, Menu PL
Warranty 12 years 12 years 12 years 12 years 12 years 12 years 12 years
Power Optimizers Support Yes Yes Yes Yes Yes Yes Yes
