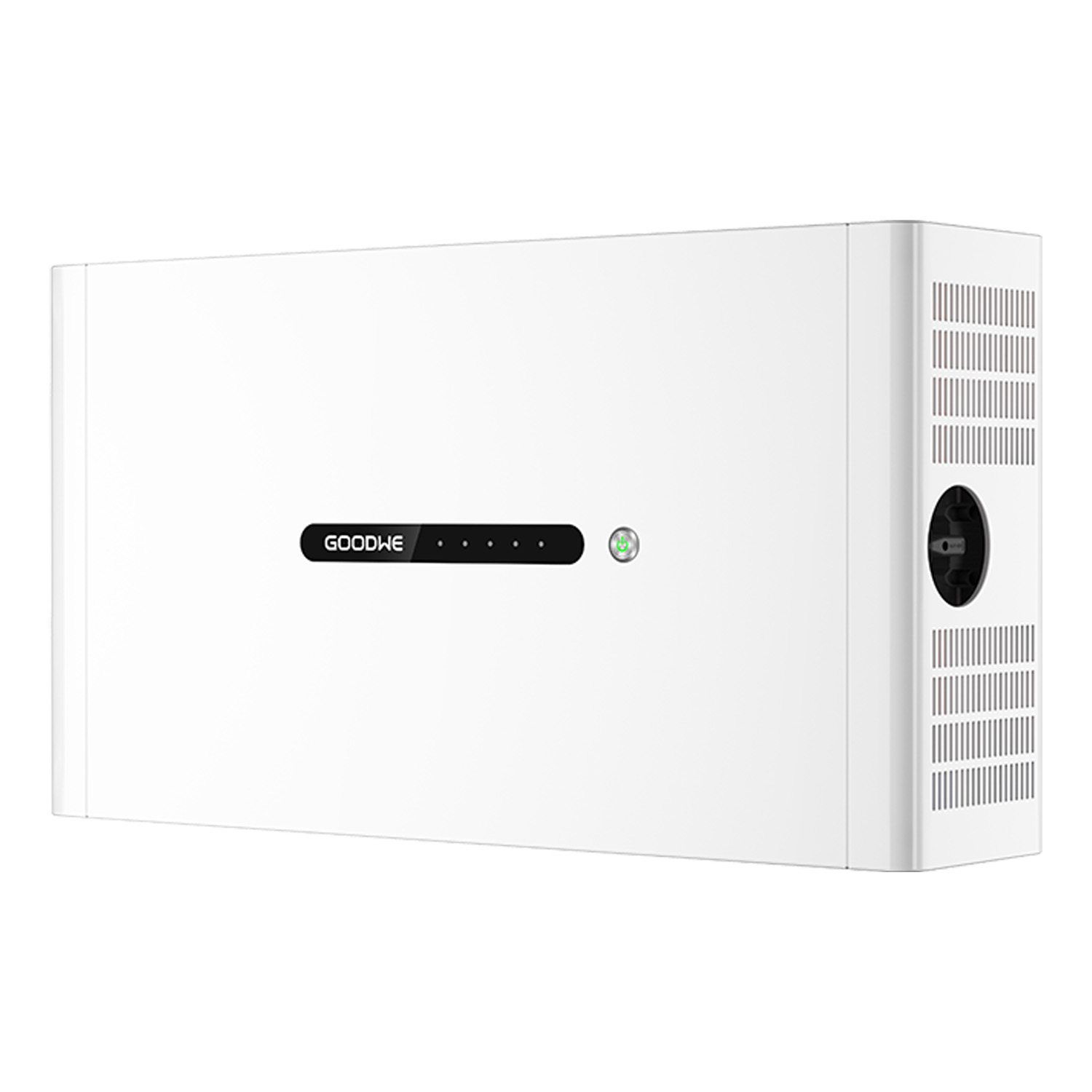

GOODWE Lynx-LX D5.0-10 5 kWh
| Manufacturer | |
|---|---|
| Capacity | |
| Required number of modules | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 55,2 kg |
| CN | 85076000 |
Gross
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Required number of modules | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 55,2 kg |
| CN | 85076000 |
GoodWe Lynx D Series Energy Storage System
The GoodWe Lynx D high-voltage energy storage series offers a safe and practical solution for enhancing energy autonomy and providing backup power from a photovoltaic installation. Utilizing reliable LFP (LiFePO4) battery technology, it delivers high performance and meets the highest safety standards. Its modular design allows flexible system expansion based on evolving needs.
Key Features of the GoodWe Lynx D Series:
- Flexible capacity: Expandable system from 5 kWh to 40 kWh by adding battery modules (up to 8 modules max).
- Safe LFP technology: Incorporates dependable lithium iron phosphate (LiFePO4) cells for enhanced operational safety.
- Easy installation and expansion: Stackable modules, auto-detection functionality, and both floor and wall mounting options simplify setup and future upgrades.
- High durability and wide operating range: IP66 protection rating and discharge capability from -20°C to +53°C ensure reliable performance in varied environments.
- Optimized integration: Fully compatible with GoodWe hybrid inverters, supporting remote diagnostics, firmware updates, and efficient energy management.
- Reliable backup power: Provides uninterrupted supply to critical loads in the event of a grid outage.
Who is this a good choice for?
The GoodWe Lynx D Series energy storage system is an ideal solution for homeowners and small commercial facilities with photovoltaic systems seeking to maximize solar energy use, reduce energy costs, and achieve energy independence. Its modular architecture allows capacity customization, while the safety of LFP technology and operation in challenging conditions make it a dependable and practical long-term investment.
| Parameter | LX D5.0-10 |
|---|---|
| Technical Specifications | |
| Usable Energy*¹ (kWh) | 5 |
| Cell Type | LFP (LiFePO₄) |
| Nominal Charging Voltage (V) | 435 |
| Nominal Discharging Voltage (V) | 380 |
| Output Voltage Range (V) | 320 ~ 480 |
| Nominal Power (kW) | 3 |
| Peak Power (kW, duration) | 5kW, 10s |
| Operating Temperature Range – Charging (°C) | 0 ~ +53 |
| Operating Temperature Range – Discharging (°C) | -20 ~ +53 |
| Relative Humidity (%) | 0 – 95 |
| Maximum Operating Altitude (m) | 4000 |
| Communication | CAN |
| Weight (kg) | 52 |
| Dimensions (W x H x D) (mm) | 700 x 380 x 170 |
| IP Protection Rating | IP66 |
| Mounting Method | Floor-mounted / Wall-mounted |
| Standards and Certifications | |
| Safety | IEC62619, IEC60730, VDE2510-50, CE, CEC |
| EMC | CE, RCM |
| Transportation | UN38.3 |
