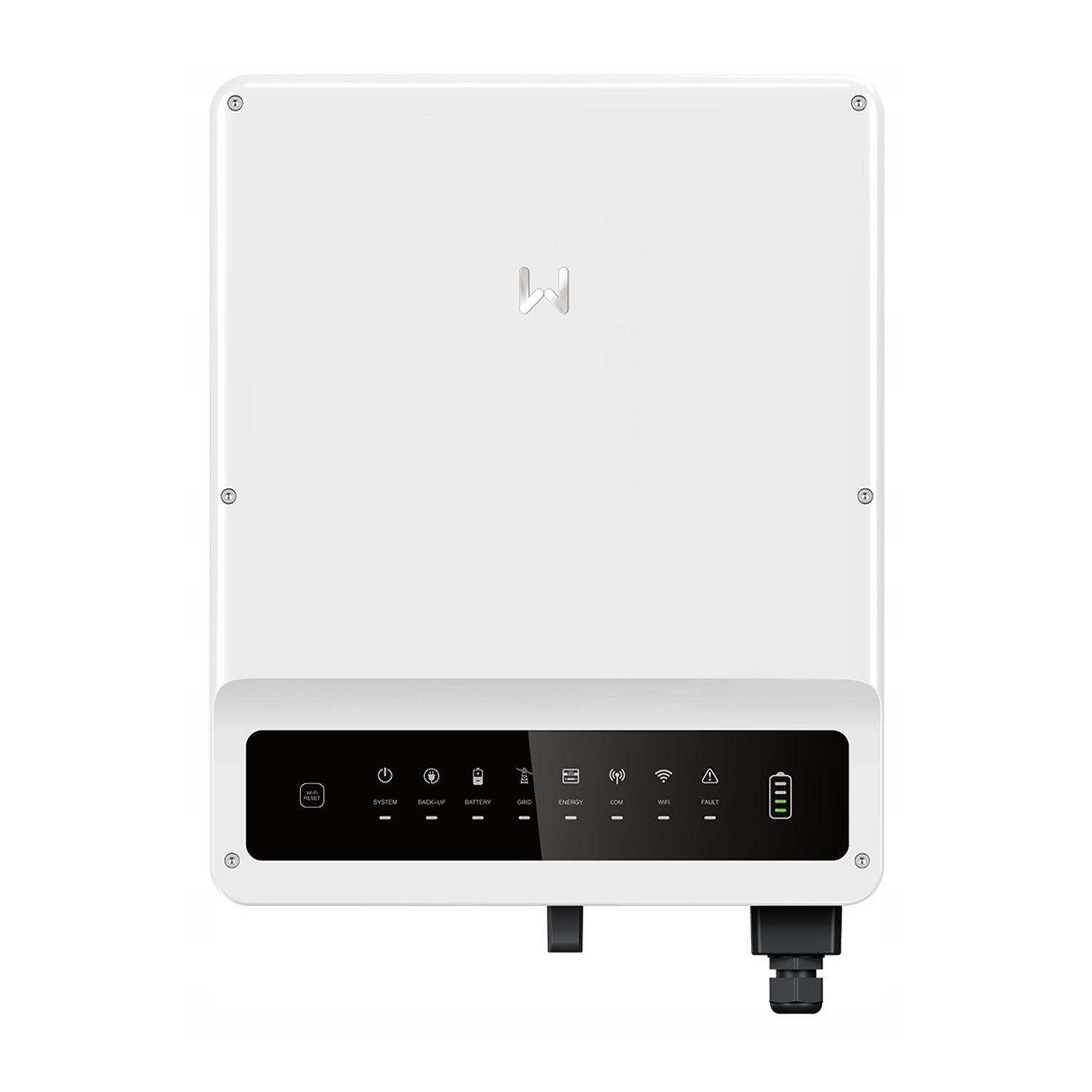

Inverter GOODWE GW10K-ET PLUS+
SKU: F2C0A
EAN: 5905951583082
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| RS485 | |
| SPD Type II | |
| Weight | 29 kg |
| CN | 85044086 |
Net price
872,07 €
Gross
Gross
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | |
| RS485 | |
| SPD Type II | |
| Weight | 29 kg |
| CN | 85044086 |
GoodWe ET PLUS+ Hybrid Inverters
The new ET PLUS+ series from GoodWe features three-phase, high-voltage hybrid inverters designed for advanced energy storage. They provide greater energy independence and maximize self-consumption through intelligent load management and higher charging and discharging power. These inverters, available in power ratings from 5 kW to 10 kW, are the ideal solution for modern photovoltaic installations.
Key Features of GoodWe ET PLUS+ Hybrid Inverters:
- Intelligent load management and the ability to control the operation of devices such as heat pumps and electric car chargers.
- The option to oversize the DC side by up to 150%, allowing for maximum energy yield from photovoltaic panels.
- Asymmetrical energy distribution across phases and an integrated backup power function with fast switching in UPS standard.
- Quiet, fanless design (below 30 dB) ensuring high user comfort and reliability.
- Wide power range from 5 kW to 10 kW (models GW5K-ET, GW6.5K-ET, GW8K-ET, GW10K-ET), allowing for customization to individual needs.
- High maximum efficiency reaching 98.20% and excellent maximum power point tracking (MPPT) performance at 99.90%.
Who is this a good choice for?
The ET PLUS+ inverters are an excellent choice for homeowners and small businesses looking to maximize self-consumption of energy generated by their photovoltaic systems and increase their energy independence. With features such as intelligent load management, energy storage connectivity, UPS standard backup power, and quiet operation, this series perfectly meets the needs of users seeking modern, efficient, and reliable energy management solutions for their buildings.
| Parameter | GW5K-ET | GW6.5K-ET | GW8K-ET | GW10K-ET |
|---|---|---|---|---|
| Battery Input Data | Battery Input Data | Battery Input Data | Battery Input Data | Battery Input Data |
| Battery Type | Lithium-ion | Lithium-ion | Lithium-ion | Lithium-ion |
| Battery Voltage Range (V) | 180-600 | 180-600 | 180-600 | 180-600 |
| Max. Charge/Discharge Current (A) | 25 | 25 | 25 | 25 |
| Battery Charging Method (Li-Ion) | Self-adaptive to battery management system (BMS) | Self-adaptive to battery management system (BMS) | Self-adaptive to battery management system (BMS) | Self-adaptive to battery management system (BMS) |
| PV Input Data | PV Input Data | PV Input Data | PV Input Data | PV Input Data |
| Max. DC Input Power (W) | 6500 | 8450 | 9600 | 13000 |
| Max. DC Input Voltage (V)*¹ | 1000 | 1000 | 1000 | 1000 |
| MPPT Voltage Range (V) | 200-850 | 200-850 | 200-850 | 200-850 |
| Startup Voltage (V) | 180 | 180 | 180 | 180 |
| Min. PV Input Voltage (V)*⁷ | 210 | 210 | 210 | 210 |
| MPPT Voltage Range for Full Load (V) | 240-850 | 310-850 | 380-850 | 460-850 |
| Nominal DC Input Voltage (V) | 620 | 620 | 620 | 620 |
| Max. Input Current at MPPT (A) | 12.5 / 12.5 | 12.5 / 12.5 | 12.5 / 12.5 | 12.5 / 12.5 |
| Max. Short-Circuit Current at MPPT (A) | 15.2 / 15.2 | 15.2 / 15.2 | 15.2 / 15.2 | 15.2 / 15.2 |
| Number of MPP Trackers | 2 | 2 | 2 | 2 |
| Number of Strings per MPP Tracker | 1 / 1 | 1 / 1 | 1 / 1 | 1 / 1 |
| AC Output Data (Grid) | AC Output Data (Grid) | AC Output Data (Grid) | AC Output Data (Grid) | AC Output Data (Grid) |
| Nominal AC Power to Grid (VA) | 5000 | 6500 | 8000 | 10000 |
| Max. Apparent AC Power to Grid (VA)*²*⁶ | 5500 | 7150 | 8800 | 11000 |
| Nominal AC Power from Grid (VA) | 10000 | 13000 | 15000 | 15000 |
| Max. Apparent AC Power from Grid (VA) | 10000 | 13000 | 15000 | 15000 |
| Nominal AC Output Voltage (V) | 400 / 380, 3L/N/PE | 400 / 380, 3L/N/PE | 400 / 380, 3L/N/PE | 400 / 380, 3L/N/PE |
| Nominal AC Output Frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 |
| Max. AC Output Current to Grid (A) | 8.5 | 10.8 | 13.5 | 16.5 |
| Max. AC Input Current from Grid (A) | 15.2 | 19.7 | 22.7 | 22.7 |
| Power Factor | ~1 (adjustable from 0.8 leading to 0.8 lagging) | ~1 (adjustable from 0.8 leading to 0.8 lagging) | ~1 (adjustable from 0.8 leading to 0.8 lagging) | ~1 (adjustable from 0.8 leading to 0.8 lagging) |
| THDi (at nominal power) (%) | < 3% | < 3% | < 3% | < 3% |
| AC Output Data (Backup) | AC Output Data (Backup) | AC Output Data (Backup) | AC Output Data (Backup) | AC Output Data (Backup) |
| Nominal Backup Power (VA) | 5000 | 6500 | 8000 | 10000 |
| Max. Backup Output Power (VA) | 5000 | 6500 | 8000 | 10000 |
| Peak Backup Output Power (VA)*³ | 10000, 60 s | 13000, 60 s | 16000, 60 s | 16500, 60 s |
| Max. Backup Output Current (A) | 8.5 | 10.8 | 13.5 | 16.5 |
| Nominal Backup Output Voltage (V) | 400 / 380 | 400 / 380 | 400 / 380 | 400 / 380 |
| Nominal Backup Output Frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 |
| THDv (at linear load) (%) | < 3% | < 3% | < 3% | < 3% |
| Efficiency | Efficiency | Efficiency | Efficiency | Efficiency |
| Max. Efficiency (%) | 98.00% | 98.00% | 98.20% | 98.20% |
| Max. Battery Efficiency (relative to load) (%) | 97.50% | 97.50% | 97.50% | 97.50% |
| European Efficiency (%) | 97.20% | 97.20% | 97.50% | 97.50% |
| MPPT Efficiency (%) | 99.90% | 99.90% | 99.90% | 99.90% |
| Protections | Protections | Protections | Protections | Protections |
| Anti-islanding Protection | Integrated | Integrated | Integrated | Integrated |
| DC Reverse Polarity Protection | Integrated | Integrated | Integrated | Integrated |
| Insulation Resistance Monitoring | Integrated | Integrated | Integrated | Integrated |
| Leakage Current Monitoring (RCMU) | Integrated | Integrated | Integrated | Integrated |
| AC Output Overcurrent Protection | Integrated | Integrated | Integrated | Integrated |
| AC Output Short-Circuit Protection | Integrated | Integrated | Integrated | Integrated |
| Battery Reverse Polarity Protection | Integrated | Integrated | Integrated | Integrated |
| Surge Protection | Integrated | Integrated | Integrated | Integrated |
| General Data | General Data | General Data | General Data | General Data |
| Operating Temperature Range (°C) | -35 ~ 60 | -35 ~ 60 | -35 ~ 60 | -35 ~ 60 |
| Relative Humidity (%) | 0-95% (non-condensing) | 0-95% (non-condensing) | 0-95% (non-condensing) | 0-95% (non-condensing) |
| Max. Installation Altitude (m a.s.l.) | ≤ 4000 | ≤ 4000 | ≤ 4000 | ≤ 4000 |
| Cooling | Natural Convection | Natural Convection | Natural Convection | Natural Convection |
| Noise Level (dB) | < 30 | < 30 | < 30 | < 30 |
| User Interface | LED and App | LED and App | LED and App | LED and App |
| Communication with BMS*⁴ | RS485; CAN | RS485; CAN | RS485; CAN | RS485; CAN |
| Communication with Meter | RS485 | RS485 | RS485 | RS485 |
| Communication with EMS | RS485 (isolated) | RS485 (isolated) | RS485 (isolated) | RS485 (isolated) |
| Communication with Portal | Wi-Fi | Wi-Fi | Wi-Fi | Wi-Fi |
| Weight (kg) | 24 | 24 | 24 | 24 |
| Dimensions (Width × Height × Depth, mm) | 516 × 415 × 180 | 516 × 415 × 180 | 516 × 415 × 180 | 516 × 415 × 180 |
| Mounting Method | Wall Mount | Wall Mount | Wall Mount | Wall Mount |
| Protection Degree (IP) | IP66 | IP66 | IP66 | IP66 |
| Self-consumption in Standby Mode (W)*⁵ | < 15 | < 15 | < 15 | < 15 |
| Topology | Transformerless (non-isolated battery) | Transformerless (non-isolated battery) | Transformerless (non-isolated battery) | Transformerless (non-isolated battery) |
Notes:
- *¹: For installations of 1000V, the maximum operating voltage is 950V. For safety reasons, a warning will appear if the PV string voltage exceeds 600V.
- *²: In accordance with local grid regulations.
- *³: Achievable only with sufficient battery power and power from the PV string.
- *⁴: CAN communication is configured by default. If using RS485 communication, the corresponding communication wire needs to be changed.
- *⁵: Without active backup output.
- *⁶: For Belgium, the maximum output apparent power (VA): GW5K-ET is 5000; GW6.5K-ET is 6500; GW8K-ET is 8000; GW10K-ET is 10000.
- *⁷: When the battery is not connected, the inverter will start only when the PV string voltage is higher than 400V.
- Current certifications are available on the GoodWe website.
