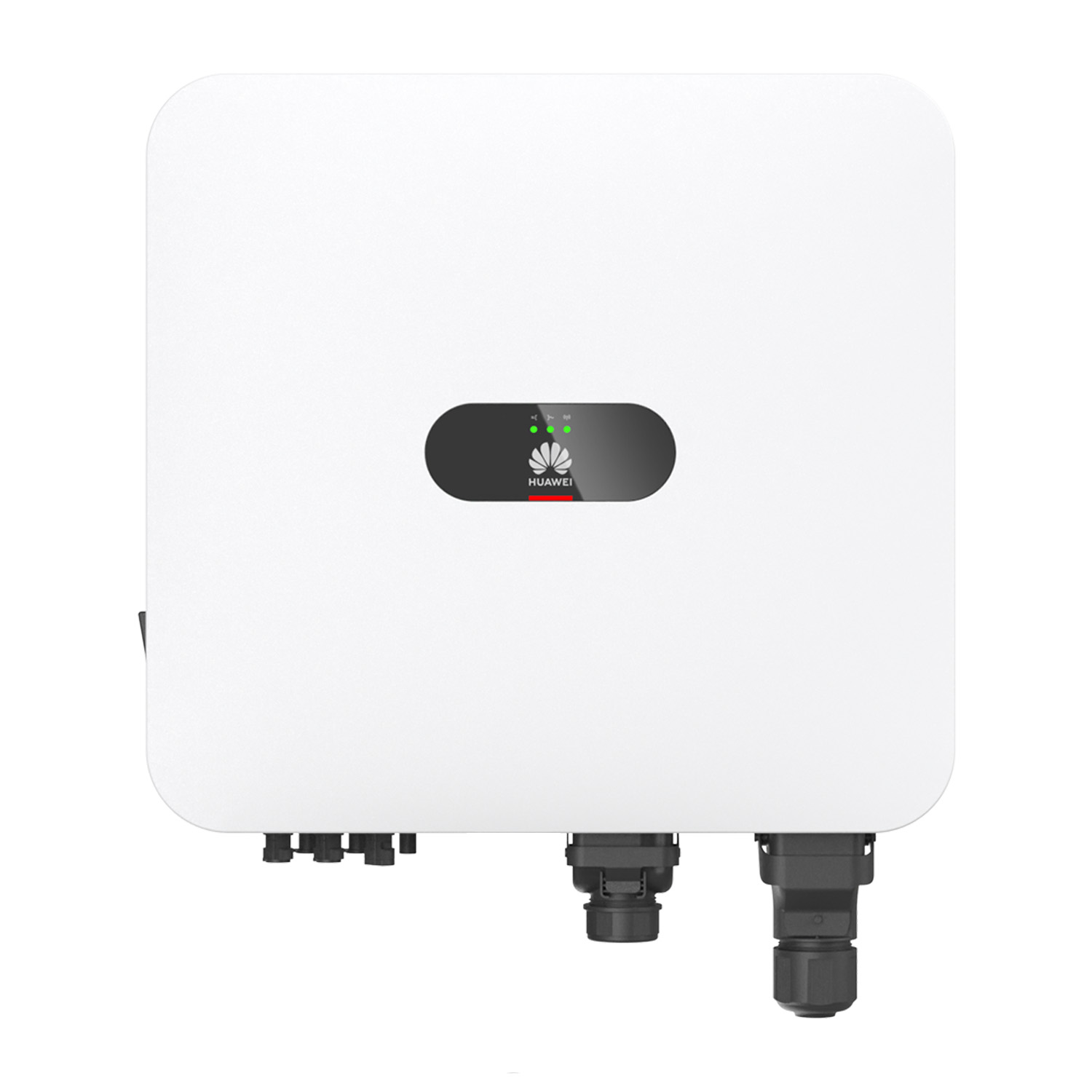

Inverter HUAWEI SUN 2000-5K-MAP0 / Hybrid
SKU: F220H11
EAN: 2010000029817
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| RS485 | |
| SPD Type II | |
| AFCI | |
| Weight | 24,82 kg |
| CN | 85044086 |
Net price
1 241,99 €
Gross
Gross
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| RS485 | |
| SPD Type II | |
| AFCI | |
| Weight | 24,82 kg |
| CN | 85044086 |
Huawei SUN2000-5/6/8/10/12K-MAP0 Intelligent Energy Controller
The Huawei SUN2000-MAP0 series intelligent energy controllers are modern, three-phase hybrid inverters designed for residential and small commercial photovoltaic installations. They combine the functions of a grid inverter, battery charger, and advanced energy management system. With high efficiency, extensive active safety features, and full compatibility with Huawei LUNA energy storage systems, they ensure reliability, optimize energy consumption, and provide backup power capabilities.
Key Features of Huawei SUN2000-MAP0 Inverters:
- Energy Storage Compatibility: Fully compatible with Huawei LUNA S0 and S1 high-voltage battery systems, allowing for efficient storage of excess energy.
- Whole House Backup Power: Ability to provide backup power for all appliances in the home during a power outage (optional SmartGuard module required).
- Active Safety: Advanced protection features, including AI-assisted arc detection (AFCI), fast module-level shutdown (with optimizers), and temperature monitoring of DC connections (PV and battery).
- High Efficiency and Flexibility: Maximum inverter efficiency reaches 98.6%, supports 100% asymmetric load between phases, and has high overload capacity in backup mode (up to 200% for 10s).
- Compatibility with Optimizers: Ability to use Huawei power optimizers (SUN2000-450W-P2, SUN2000-600W-P) to maximize energy yield from each module and design flexibility.
- Smart Monitoring and Communication: Built-in Wi-Fi for easy setup and monitoring via the FusionSolar app, RS485 port, and optional Ethernet/4G communication via Smart Dongle.
Who is this a good choice for?
The Huawei SUN2000-MAP0 inverters are an excellent choice for homeowners and small businesses looking for a versatile, efficient, safe, and future-proof energy management solution from their photovoltaic installation. Their hybrid nature and ability to provide complete backup power make them ideal for those planning or already possessing an energy storage system, who value maximum energy independence and reliable electricity supply.
| Technical Specifications | SUN2000-5K-MAPO | SUN2000-6K-MAPO | SUN2000-8K-MAPO | SUN2000-10K-MAPO | SUN2000-12K-MAPO |
|---|---|---|---|---|---|
| Max. Efficiency | 98.4% | 98.6% | 98.6% | 98.6% | 98.6% |
| Weighted European Efficiency | 97.5% | 97.7% | 98.0% | 98.1% | 98.2% |
| Input (PV) | |||||
| Recommended Max. PV Power | 9,000 Wp | 11,000 Wp | 14,600 Wp | 18,000 Wp | 22,000 Wp |
| Max. Input Voltage ¹ | 1,100 V | 1,100 V | 1,100 V | 1,100 V | 1,100 V |
| Operating Voltage Range ² | 160 V – 1,000 V | 160 V – 1,000 V | 160 V – 1,000 V | 160 V – 1,000 V | 160 V – 1,000 V |
| Start-up Voltage | 160 V | 160 V | 160 V | 160 V | 160 V |
| Nominal Input Voltage | 600 V | 600 V | 600 V | 600 V | 600 V |
| Max. Input Current per MPPT | 16 A | 16 A | 16 A | 16 A | 16 A |
| Max. Short-Circuit Current | 22 A | 22 A | 22 A | 22 A | 22 A |
| Number of MPP Trackers | 2 | 2 | 2 | 2 | 2 |
| Max. Number of Inputs per MPP Tracker | 1 | 1 | 1 | 1 | 1 |
| Input (Battery DC) | |||||
| Compatible Battery | LUNA2000-5/10/15-S0 / LUNA2000-7/14/21-S1 | LUNA2000-5/10/15-S0 / LUNA2000-7/14/21-S1 | LUNA2000-5/10/15-S0 / LUNA2000-7/14/21-S1 | LUNA2000-5/10/15-S0 / LUNA2000-7/14/21-S1 | LUNA2000-5/10/15-S0 / LUNA2000-7/14/21-S1 |
| Operating Voltage Range | 600 V ~ 980 V | 600 V ~ 980 V | 600 V ~ 980 V | 600 V ~ 980 V | 600 V ~ 980 V |
| Max. Operating Current | 20 A | 20 A | 20 A | 20 A | 20 A |
| Max. Charging Power | 12,000 W | 12,000 W | 12,000 W | 12,000 W | 12,000 W |
| Max. Discharging Power | 5,500 W | 6,600 W | 8,800 W | 11,000 W | 12,000 W |
| Output (Grid-Tied) | |||||
| Grid Connection | Three-Phase | Three-Phase | Three-Phase | Three-Phase | Three-Phase |
| Nominal Output Power | 5,000 W | 6,000 W | 8,000 W | 10,000 W | 12,000 W |
| Max. Apparent Power | 5,500 VA | 6,600 VA | 8,800 VA | 11,000 VA | 13,200 VA |
| Nominal Output Voltage | 220 V AC / 380 V AC, 230 V AC / 400 V AC, 240 V AC / 415 V AC 3W/N + PE | 220 V AC / 380 V AC, 230 V AC / 400 V AC, 240 V AC / 415 V AC 3W/N + PE | 220 V AC / 380 V AC, 230 V AC / 400 V AC, 240 V AC / 415 V AC 3W/N + PE | 220 V AC / 380 V AC, 230 V AC / 400 V AC, 240 V AC / 415 V AC 3W/N + PE | 220 V AC / 380 V AC, 230 V AC / 400 V AC, 240 V AC / 415 V AC 3W/N + PE |
| Overload Capability | 110% | 110% | 110% | 110% | 110% |
| Nominal AC Frequency | 50 Hz / 60 Hz | 50 Hz / 60 Hz | 50 Hz / 60 Hz | 50 Hz / 60 Hz | 50 Hz / 60 Hz |
| Max. Output Current | 8.3 A | 10.0 A | 13.3 A | 16.7 A | 20.2 A |
| Adjustable Power Factor | 0.8 leading … 0.8 lagging | 0.8 leading … 0.8 lagging | 0.8 leading … 0.8 lagging | 0.8 leading … 0.8 lagging | 0.8 leading … 0.8 lagging |
| Max. Total Harmonic Distortion | ≤ 3% | ≤ 3% | ≤ 3% | ≤ 3% | ≤ 3% |
| Output (Off-Grid / Backup Power) | |||||
| Compatible Backup Device | SmartGuard-63A-TO (3 Phase) | SmartGuard-63A-TO (3 Phase) | SmartGuard-63A-TO (3 Phase) | SmartGuard-63A-TO (3 Phase) | SmartGuard-63A-TO (3 Phase) |
| Nominal Output Power | 5,000 W | 6,000 W | 8,000 W | 10,000 W | 12,000 W |
| Nominal Output Voltage | 220 V AC / 380 V AC, 230 V AC / 400 V AC, 240 V AC / 415 V AC 3W/N + PE | 220 V AC / 380 V AC, 230 V AC / 400 V AC, 240 V AC / 415 V AC 3W/N + PE | 220 V AC / 380 V AC, 230 V AC / 400 V AC, 240 V AC / 415 V AC 3W/N + PE | 220 V AC / 380 V AC, 230 V AC / 400 V AC, 240 V AC / 415 V AC 3W/N + PE | 220 V AC / 380 V AC, 230 V AC / 400 V AC, 240 V AC / 415 V AC 3W/N + PE |
| Overload 110% | Continuous | Continuous | Continuous | Continuous | Continuous |
| Overload 150% | 5 min (3-phase) / 5 min (1-phase) | 5 min (3-phase) / 5 min (1-phase) | 5 min (3-phase) / 5 min (1-phase) | 1 min (3-phase) / 5 min (1-phase) | 1 min (3-phase) / 5 min (1-phase) |
| Overload 200% | 10 seconds | 10 seconds | 10 seconds | 10 seconds | 10 seconds |
| Automatic Switchover Time | < 20 ms (with SmartGuard-63A-TO) | < 20 ms (with SmartGuard-63A-TO) | < 20 ms (with SmartGuard-63A-TO) | < 20 ms (with SmartGuard-63A-TO) | < 20 ms (with SmartGuard-63A-TO) |
| Safety Features | |||||
| Asymmetrical Load | Yes, supports 100% three-phase asymmetrical load | Yes, supports 100% three-phase asymmetrical load | Yes, supports 100% three-phase asymmetrical load | Yes, supports 100% three-phase asymmetrical load | Yes, supports 100% three-phase asymmetrical load |
| Input Side Disconnect Device | Yes | Yes | Yes | Yes | Yes |
| Anti-Islanding Protection | Yes | Yes | Yes | Yes | Yes |
| DC Reverse Polarity Protection | Yes | Yes | Yes | Yes | Yes |
| Insulation Damage Detection | Yes | Yes | Yes | Yes | Yes |
| DC Surge Protection | Yes, compliant with TYPE II protection class according to EN/IEC 61643-11 | Yes, compliant with TYPE II protection class according to EN/IEC 61643-11 | Yes, compliant with TYPE II protection class according to EN/IEC 61643-11 | Yes, compliant with TYPE II protection class according to EN/IEC 61643-11 | Yes, compliant with TYPE II protection class according to EN/IEC 61643-11 |
| AC Surge Protection | Yes, compliant with TYPE II protection class according to EN/IEC 61643-11 | Yes, compliant with TYPE II protection class according to EN/IEC 61643-11 | Yes, compliant with TYPE II protection class according to EN/IEC 61643-11 | Yes, compliant with TYPE II protection class according to EN/IEC 61643-11 | Yes, compliant with TYPE II protection class according to EN/IEC 61643-11 |
| Residual Current Detection (RCD) | Yes | Yes | Yes | Yes | Yes |
| AC Overcurrent Protection | Yes | Yes | Yes | Yes | Yes |
| AC Short-Circuit Protection | Yes | Yes | Yes | Yes | Yes |
| AC Overvoltage Protection | Yes | Yes | Yes | Yes | Yes |
| Arc Fault Protection (AFCI) | Yes | Yes | Yes | Yes | Yes |
| Connector Temperature Detection | Yes (PV and Battery connectors) | Yes (PV and Battery connectors) | Yes (PV and Battery connectors) | Yes (PV and Battery connectors) | Yes (PV and Battery connectors) |
| Load Tone Control | Yes | Yes | Yes | Yes | Yes |
| Battery Charging from Grid | Yes | Yes | Yes | Yes | Yes |
| General Specifications | |||||
| Operating Temperature Range | -25°C – +60°C (-13°F – +140°F) | -25°C – +60°C (-13°F – +140°F) | -25°C – +60°C (-13°F – +140°F) | -25°C – +60°C (-13°F – +140°F) | -25°C – +60°C (-13°F – +140°F) |
| Relative Humidity Operation | 0% – 100% RH | 0% – 100% RH | 0% – 100% RH | 0% – 100% RH | 0% – 100% RH |
| Max. Operating Altitude | 4,000 m | 4,000 m | 4,000 m | 4,000 m | 4,000 m |
| Cooling | Natural Convection | Natural Convection | Natural Convection | Natural Convection | Natural Convection |
| Noise | < 29 dB | < 29 dB | < 29 dB | < 29 dB | < 29 dB |
| Display | LED Indicators; Integrated WLAN + FusionSolar App | LED Indicators; Integrated WLAN + FusionSolar App | LED Indicators; Integrated WLAN + FusionSolar App | LED Indicators; Integrated WLAN + FusionSolar App | LED Indicators; Integrated WLAN + FusionSolar App |
| Communication | RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (Optional) 4G/3G/2G via Smart Dongle-4G (Optional); EMMA (Optional) |
RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (Optional) 4G/3G/2G via Smart Dongle-4G (Optional); EMMA (Optional) |
RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (Optional) 4G/3G/2G via Smart Dongle-4G (Optional); EMMA (Optional) |
RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (Optional) 4G/3G/2G via Smart Dongle-4G (Optional); EMMA (Optional) |
RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (Optional) 4G/3G/2G via Smart Dongle-4G (Optional); EMMA (Optional) |
| Weight (with Mounting Bracket) | 21 kg | 21 kg | 21 kg | 21 kg | 21 kg |
| Dimensions (with Mounting Bracket) | 490 mm x 460 mm x 130 mm | 490 mm x 460 mm x 130 mm | 490 mm x 460 mm x 130 mm | 490 mm x 460 mm x 130 mm | 490 mm x 460 mm x 130 mm |
| IP Protection Rating | IP66 | IP66 | IP66 | IP66 | IP66 |
| Night Power Consumption | < 5.5 W | < 5.5 W | < 5.5 W | < 5.5 W | < 5.5 W |
| Compatibility with Optimizers | |||||
| Optimizer compatible with DC MBUS | SUN2000-450W-P2, SUN2000-600W-P | SUN2000-450W-P2, SUN2000-600W-P | SUN2000-450W-P2, SUN2000-600W-P | SUN2000-450W-P2, SUN2000-600W-P | SUN2000-450W-P2, SUN2000-600W-P |
| Safety | |||||
| Safety | EN/IEC62109-1, EN/IEC62109-2 | EN/IEC62109-1, EN/IEC62109-2 | EN/IEC62109-1, EN/IEC62109-2 | EN/IEC62109-1, EN/IEC62109-2 | EN/IEC62109-1, EN/IEC62109-2 |
| Grid Connection Standards | |||||
| Grid Connection Standards | IEC61727, IEC62116, MEA/PEA, G99, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11 | IEC61727, IEC62116, MEA/PEA, G99, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11 | IEC61727, IEC62116, MEA/PEA, G99, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11 | IEC61727, IEC62116, MEA/PEA, G99, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11 | IEC61727, IEC62116, MEA/PEA, G99, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11 |
