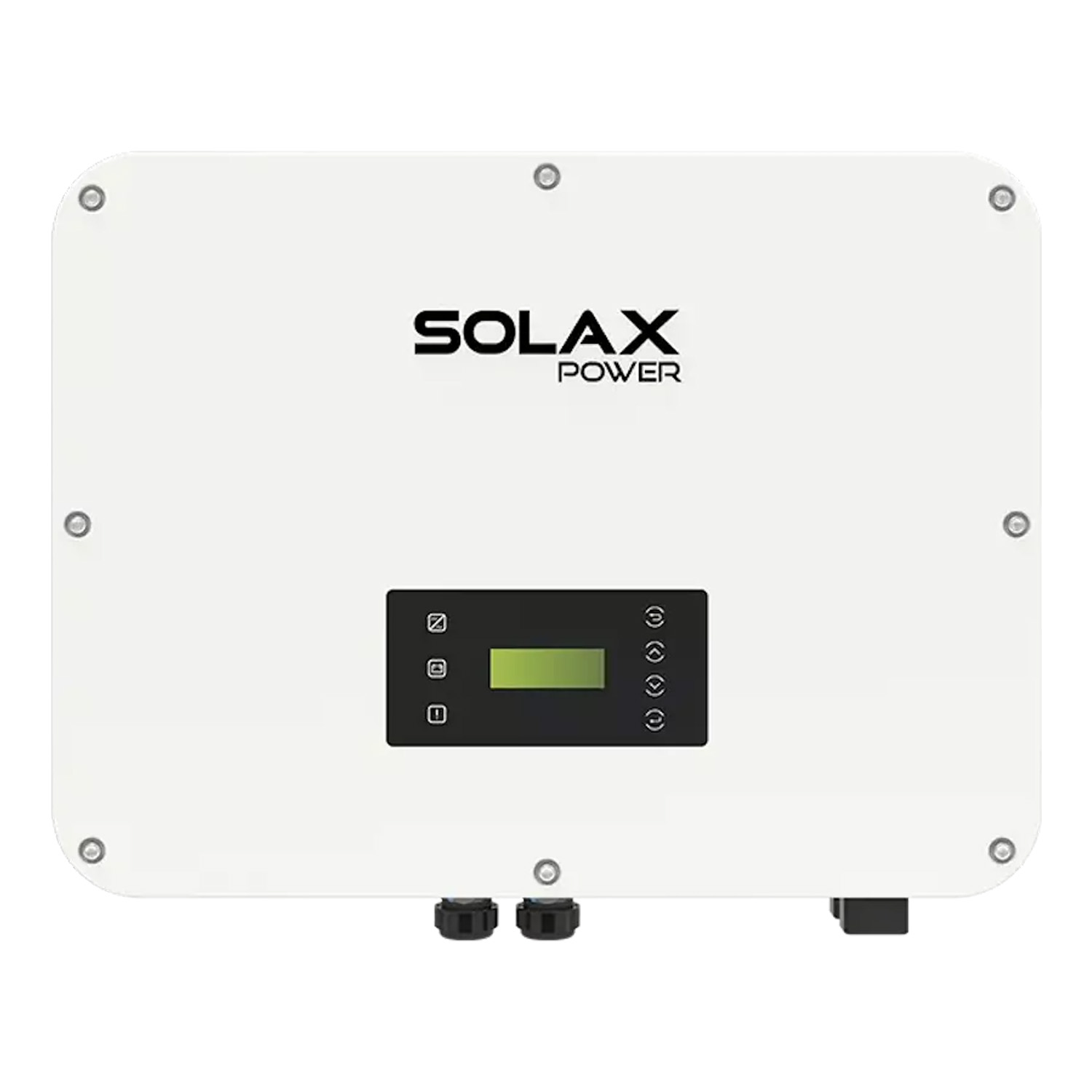

Inverter – SOLAX – X3-ULT-20K – hybrid – AFCI – HV

SKU: F20S1262 EAN: 2010000035856
Inverter - SOLAX - X3-ULT-20K - hybrid - AFCI - HV
Manufacturer

Rated power

Power supply

Hybrid device

MPPT

Warranty

Net depth

RS485

SPD Type II

AFCI

Weight 55,98 kg
CN 85044086
Net price 3 121,94 €
Gross

3 121,94 €
Gross

3 121,94 €
Gross

Product details

Manufacturer

Rated power

Power supply

Hybrid device

MPPT

Warranty

Net depth

RS485

SPD Type II

AFCI

Weight 55,98 kg
CN 85044086

Solax X3-Ultra Inverters (Three-phase)

The Solax X3-Ultra inverters are advanced three-phase on-grid solutions designed for maximum performance and reliability. With an innovative design and high conversion efficiency, they ensure optimal use of energy from photovoltaic panels.

Key features of the Solax X3-Ultra:

  • Maximum PV array power up to 60,000 Wp.
  • High DC input voltage up to 1000 V.
  • Support for up to 3 MPP trackers with a string configuration of 2/2/2.
  • AC apparent power ranging from 16,500 VA to 30,000 VA, depending on the model.
  • Compatible with lithium‑ion batteries with a voltage range of 180–800 V.
  • EPS peak power up to 30,000 VA with a switchover time below 10 ms.
  • IP66 protection rating and a wide operating temperature range from −35°C to 60°C.
  • Advanced protection features, including AFCI.

Who is this a good choice for?

The Solax X3-Ultra inverters are an ideal choice for higher-power photovoltaic installations, both in commercial applications and large residential properties. Their versatility, high efficiency, ability to integrate with energy storage, and advanced protections make them an excellent solution for users seeking efficient and reliable systems.

Paraiméadar X3-ULT-15KP X3-ULT-15K X3-ULT-20KP X3-ULT-20K X3-ULT-25K X3-ULT-30K
IONCHUR PV
Cumhacht molta uasta painéil [Wp] 30000 30000 40000 40000 50000 60000
Cumhacht ionchuir DC uasta [W] 30000 30000 40000 40000 50000 60000
Uasmhéid voltais DC [V] 1000 1000 1000 1000 1000 1000
Voltas oibre ainmniúil DC [V] 600 600 600 600 600 600
Líon rianadóirí MPP / slabhraí in aghaidh MPP 3(2/2/2) 2(2/2) 3(2/2/2) 2(2/2) 3(2/2/2) 3(2/2/2)
Reatha uasta (ionchur PV1/ionchur PV2/ionchur PV3) [A] PV1: 36/PV2: 36/PV3: 36 PV1: 36/PV2: 36 PV1: 36/PV2: 36 PV1: 45/PV2: 45 PV1: 36/PV2: 36 PV1:36/PV2:36/PV3:36 PV1: 36/PV2:36/PV3:36
Reatha gearrtharraingthe uasta (ionchur PV1 ionchur PV2 ionchur PV3) [A] PV1: 45/PV2: 45/PV3: 45 PV1: 45/PV2: 45 PV1: 45/PV2: 45 PV1: 45/PV2: 45 PV1: 45/PV2: 45 PV1:45/PV2:45/PV3:45 PV1: 45/PV2:45/PV3:45
Raon voltais MPPT [V] 160-950 160-950 160-950 160-950 160-950 160-950
Voltas tosaigh aschuir [V] 200 200 200 200 200 200
ASCHUR AC (AR AN LÍONRA)
Cumhacht ainmniúil AC [VA] 15000 (AS 477714999) 15000 (AS 477714999) 20000 20000 25000 30000 (AS 4777 29999)
Cumhacht fhéideartha uasta AC [VA] 16500 (AS 477714999) 16500 (AS 477714999) 22000 22000 27500 30000 (AS 4777 29999)
Voltas ainmniúil líonra (raon voltais AC) [V] 3P4W, 400/230 3P4W, 400/230 3P4W, 400/230 3P4W, 400/230 3P4W, 400/230 3P4W, 400/230
Minicíocht ainmniúil líonra [Hz] 50/60 50/60 50/60 50/60 50/60 50/60
Reatha ainmniúil AC [A] 21.8 21.8 29.0 29.0 36.3 43.5
Reatha AC uasta [A] 24.0 24.0 31.9 31.9 39.9 43.5
Fachtóir cumhachta 1 (-0.8~0.8) 1 (-0.8~0.8) 1 (-0.8~0.8) 1 (-0.8~0.8) 1 (-0.8~0.8) 1 (-0.8~0.8)
Coéifeacht ábhar harmainic (THDi, % chumhachta) <3 <3 <3 <3 <3 <3
IONCHUR AC
Cumhacht ainmniúil AC [VA] 15000 15000 20000 20000 25000 30000
Reatha ainmniúil AC [A] 21.8 21.8 29.0 29.0 36.3 43.5
Voltas ainmniúil líonra (raon voltais AC) [V] 3P4W, 400/230 3P4W, 400/230 3P4W, 400/230 3P4W, 400/230 3P4W, 400/230 3P4W, 400/230
Minicíocht ainmniúil líonra [Hz] 50/60 50/60 50/60 50/60 50/60 50/60
CEALLRA
Cineál ceallraí Lithium-ion Lithium-ion Lithium-ion Lithium-ion Lithium-ion Lithium-ion
Raon voltais an cheallraí [V] 180-800 180-800 180-800 180-800 180-800 180-800
Reatha uasta muirearaithe/urscaoilte [A] 60 (30 x 2 ) 60 (30 x 2 ) 60 (30 x 2 ) 60 (30 x 2 ) 60 (30 x 2 ) 60 (30 x 2 )
ASCHUR EPS (LE CEALLRA)
Cumhacht buaic EPS [VA] 15000 15000 20000 20000 25000 30000
Cumhacht ainmniúil EPS [VA] 15000 15000 20000 20000 25000 30000
Voltas ainmniúil EPS [V], minicíocht [Hz] 400/230; 50/60 400/230; 50/60 400/230; 50/60 400/230; 50/60 400/230; 50/60 400/230; 50/60
Reatha ainmniúil EPS [A] 21.8 21.8 29.0 29.0 36.3 43.5
Am athsholáthair [ms] < 10 < 10 < 10 < 10 < 10 < 10
Coéifeacht ábhar harmainic (THDV, ualach líneach) [%] <3 <3 <3 <3 <3 <3
TOMHALTAS CUMHACHTA
Tomhaltas féin (oíche) [W] < 5 < 5 < 5 < 5 < 5 < 5
COSANTA
Cosaint frith-oileáin TÁ TÁ TÁ TÁ TÁ TÁ
Cosaint i gcoinne polaraíochta droim ar ais DC TÁ TÁ TÁ TÁ TÁ TÁ
Monatóireacht insliú TÁ TÁ TÁ TÁ TÁ TÁ
Monatóireacht reatha difríochta TÁ TÁ TÁ TÁ TÁ TÁ
Cosaint ró-reatha AC TÁ TÁ TÁ TÁ TÁ TÁ
Cosaint i gcoinne gearrtharraingthe AC TÁ TÁ TÁ TÁ TÁ TÁ
Cosaint frith-ardvoltais AC TÁ TÁ TÁ TÁ TÁ TÁ
Cosaint i gcoinne róthéimh TÁ TÁ TÁ TÁ TÁ TÁ
Muirir ar ais ón líonra chuig an gceallraí TÁ TÁ TÁ TÁ TÁ TÁ
Cosaint i gcoinne surges Cineál II, DC agus AC Cineál II, DC agus AC Cineál II, DC agus AC Cineál II, DC agus AC Cineál II, DC agus AC Cineál II, DC agus AC
AFCI OPT OPT OPT OPT OPT OPT
ÉIFEACHTACHT
Éifeachtacht uasta / Éifeachtacht EURO 98.0% / 97.7% 98.5% / 97.0% 98.0% / 97.7% 98.5% / 97.0% 98.0% / 97.7% 98.0% / 97.7%
Éifeachtacht ainmniúil muirir 99.9% 99.9% 99.9% 99.9% 99.9% 99.9%
Éifeachtacht rialúcháin MPPT 99.9% 99.9% 99.9% 99.9% 99.9% 99.9%
CAIGHDEÁN
Sábháilteacht EN / IEC62109-1/-2 EN / IEC62109-1/-2 EN / IEC62109-1/-2 EN / IEC62109-1/-2 EN / IEC62109-1/-2 EN / IEC62109-1/-2
EMC EN61000-6-1/2/3/4; EN61000-3-11 / 12; EN 5011; IEC 62920 EN61000-6-1/2/3/4; EN61000-3-11 / 12; EN 5011; IEC 62920 EN61000-6-1/2/3/4; EN61000-3-11 / 12; EN 5011; IEC 62920 EN61000-6-1/2/3/4; EN61000-3-11 / 12; EN 5011; IEC 62920 EN61000-6-1/2/3/4; EN61000-3-11 / 12; EN 5011; IEC 62920 EN61000-6-1/2/3/4; EN61000-3-11 / 12; EN 5011; IEC 62920
Deimhniú VDE4105 / G99/ AS4777 / EN50549 / CEI 0-21 IEC61727/ PEA / MEA / NRS – 097 – 2-1/ RD1699/TOR VDE4105 / G99/ AS4777 / EN50549 / CEI 0-21 IEC61727/ PEA / MEA / NRS – 097 – 2-1/ RD1699/TOR VDE4105 / G99/ AS4777 / EN50549 / CEI 0-21 IEC61727/ PEA / MEA / NRS – 097 – 2-1/ RD1699/TOR VDE4105 / G99/ AS4777 / EN50549 / CEI 0-21 IEC61727/ PEA / MEA / NRS – 097 – 2-1/ RD1699/TOR VDE4105 / G99/ AS4777 / EN50549 / CEI 0-21 IEC61727/ PEA / MEA / NRS – 097 – 2-1/ RD1699/TOR VDE4105 / G99/ AS4777 / EN50549 / CEI 0-21 IEC61727/ PEA / MEA / NRS – 097 – 2-1/ RD1699/TOR
SONRAÍ GINEARÁLA
Rang cosanta IP66 IP66 IP66 IP66 IP66 IP66
Raon teochta oibre [°C] – 35~60 (laghdú cumhachta os cionn + 45) – 35~60 (laghdú cumhachta os cionn + 45) – 35~60 (laghdú cumhachta os cionn + 45) – 35~60 (laghdú cumhachta os cionn + 45) – 35~60 (laghdú cumhachta os cionn + 45) – 35~60 (laghdú cumhachta os cionn + 45)
Taise choibhneasta [%] 0-100 0-100 0-100 0-100 0-100 0-100
Airde [m] < 3000 < 3000 < 3000 < 3000 < 3000 < 3000
Teocht stórála [°C] -40~+70 -40~+70 -40~+70 -40~+70 -40~+70 -40~+70
Toiseanna (L x H x D) [mm] 696 x 526 x 240 696 x 526 x 240 696 x 526 x 240 696 x 526 x 240 696 x 526 x 240 696 x 526 x 240
Meáchan (kg) 47 47 47 47 47 47
Coincheap fuaraithe Fuarú cliste Fuarú cliste Fuarú cliste Fuarú cliste Fuarú cliste Fuarú cliste
Topaolaíocht Gan transformadóir Gan transformadóir Gan transformadóir Gan transformadóir Gan transformadóir Gan transformadóir
Cumarsáid Modbus (RS485), Meter (RS485), DI × 5, DO × 2 Modbus (RS485), Meter (RS485), DI × 5, DO × 2 Modbus (RS485), Meter (RS485), DI × 5, DO × 2 Modbus (RS485), Meter (RS485), DI × 5, DO × 2 Modbus (RS485), Meter (RS485), DI × 5, DO × 2 Modbus (RS485), Meter (RS485), DI × 5, DO × 2

Nóta: Ní bhíonn Ionchur PV3 ar fáil ach do mhúnlaí 15KP, 25K agus 30K.
