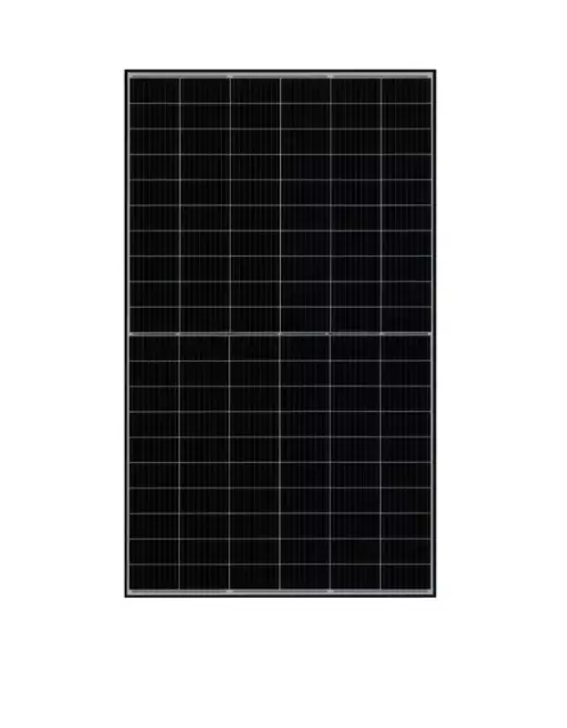

JA SOLAR JAM66S30-500/MR Module – Black Frame / Cell Color JA-1
SKU: F1107012
EAN: 5905951589329
| Manufacturer | |
|---|---|
| Power | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Number of BusBar | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 1200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 25,2 kg |
Net price
79,99 €
Gross
Gross
Datasheet JA Solar JAM66S30-500/MR - Black frame / Cell color JA-1
datasheet-ja-solar-jam66s30-500-mr-black-frame-cell-color-ja-1.pdf
Product details
| Manufacturer | |
|---|---|
| Power | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Number of BusBar | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 1200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 25,2 kg |
JA Solar Deep Blue 3.0 PRO JAM66S30 480-505/MR Series
The photovoltaic modules from the JA Solar Deep Blue 3.0 PRO JAM66S30 480-505/MR series utilize advanced 11BB PERC half-cell technology, offering higher output power, better performance in elevated temperatures, and reduced shading effects. With a robust construction and exceptional resistance to mechanical loads, these panels ensure reliability and longevity for many years.
Key Features of the Deep Blue 3.0 PRO JAM66S30 480-505/MR Modules:
- Higher output power – the modules deliver exceptional performance thanks to 11BB PERC cell technology, translating to greater energy generation.
- Lower levelized cost of electricity (LCOE) – optimized module parameters allow for reduced energy costs over their lifetime.
- Reduced shading effect – the half-cell configuration minimizes the impact of shading on module performance, enhancing efficiency in challenging conditions.
- Enhanced mechanical resistance – the modules are designed to withstand high wind and snow loads, ensuring durability and reliability in harsh environmental conditions.
- High-quality warranty – a 12-year product warranty and a 25-year linear power warranty with a maximum annual degradation of 0.55% provide investment security.
- Quality certifications – compliance with IEC 61215, IEC 61730, ISO 9001, ISO 14001, and ISO 45001 standards confirms the high quality and reliability of the modules.
Who is this a good choice for?
JA Solar modules from the Deep Blue 3.0 PRO JAM66S30 480-505/MR series are an excellent choice for individuals and businesses seeking efficient and durable photovoltaic panels. Thanks to the implementation of advanced technologies and resistance to challenging weather conditions, these panels are suitable for a variety of installations, both residential and commercial, offering reliable operation and long-term savings.
Datasheet JA Solar JAM66S30-500/MR - Black frame / Cell color JA-1
datasheet-ja-solar-jam66s30-500-mr-black-frame-cell-color-ja-1.pdf
Technical Specification JA Solar JAM66S30-MR SERIES
| ELECTRICAL PARAMETERS AT STC | ||||||
|---|---|---|---|---|---|---|
| TYPE | JAM66S30-480/MR | JAM66S30-485/MR | JAM66S30-490/MR | JAM66S30-495/MR | JAM66S30-500/MR | JAM66S30-505/MR |
| Maximum Rated Power (Pmax) [W] | 480 | 485 | 490 | 495 | 500 | 505 |
| Open Circuit Voltage (Voc) [V] | 45.07 | 45.20 | 45.33 | 45.46 | 45.59 | 45.72 |
| Maximum Operating Voltage (Vmp) [V] | 37.62 | 37.81 | 37.99 | 38.17 | 38.35 | 38.53 |
| Short Circuit Current (Isc) [A] | 13.65 | 13.72 | 13.79 | 13.86 | 13.93 | 14.00 |
| Maximum Current (Imp) [A] | 12.76 | 12.83 | 12.90 | 12.97 | 13.04 | 13.11 |
| Module Efficiency [%] | 20.2 | 20.4 | 20.6 | 20.9 | 21.1 | 21.3 |
| Power Tolerance | 0~+5W | 0~+5W | 0~+5W | 0~+5W | 0~+5W | 0~+5W |
| Temperature Coefficient Isc (α_Isc) | +0.045%/°C | +0.045%/°C | +0.045%/°C | +0.045%/°C | +0.045%/°C | +0.045%/°C |
| Temperature Coefficient Voc (β_Voc) | -0.275%/°C | -0.275%/°C | -0.275%/°C | -0.275%/°C | -0.275%/°C | -0.275%/°C |
| Temperature Coefficient Pmax (γ_Pmp) | -0.350%/°C | -0.350%/°C | -0.350%/°C | -0.350%/°C | -0.350%/°C | -0.350%/°C |
| STC | Radiation intensity 1000W/m², cell temperature 25°C, air mass AM 1.5G | Radiation intensity 1000W/m², cell temperature 25°C, air mass AM 1.5G | Radiation intensity 1000W/m², cell temperature 25°C, air mass AM 1.5G | Radiation intensity 1000W/m², cell temperature 25°C, air mass AM 1.5G | Radiation intensity 1000W/m², cell temperature 25°C, air mass AM 1.5G | Radiation intensity 1000W/m², cell temperature 25°C, air mass AM 1.5G |
| ELECTRICAL PARAMETERS AT NOCT | ||||||
|---|---|---|---|---|---|---|
| Nominal Maximum Power (Pmax) [W] | 363 | 367 | 370 | 374 | 378 | 382 |
| Open Circuit Voltage (Voc) [V] | 42.15 | 42.30 | 42.43 | 42.58 | 42.72 | 42.86 |
| Maximum Operating Voltage (Vmp) [V] | 35.54 | 35.67 | 35.76 | 35.84 | 35.93 | 36.02 |
| Short Circuit Current (Isc) [A] | 10.99 | 11.06 | 11.13 | 11.20 | 11.27 | 11.34 |
| Maximum Current (Imp) [A] | 10.21 | 10.28 | 10.36 | 10.44 | 10.52 | 10.60 |
| NOCT | Radiation intensity 800W/m², ambient temperature 20°C, wind speed 1 m/s, AM 1.5G | Radiation intensity 800W/m², ambient temperature 20°C, wind speed 1 m/s, AM 1.5G | Radiation intensity 800W/m², ambient temperature 20°C, wind speed 1 m/s, AM 1.5G | Radiation intensity 800W/m², ambient temperature 20°C, wind speed 1 m/s, AM 1.5G | Radiation intensity 800W/m², ambient temperature 20°C, wind speed 1 m/s, AM 1.5G | Radiation intensity 800W/m², ambient temperature 20°C, wind speed 1 m/s, AM 1.5G |
| OPERATING CONDITIONS | ||||||
|---|---|---|---|---|---|---|
| Maximum System Voltage | 1000V /1500V DC | 1000V /1500V DC | 1000V /1500V DC | 1000V /1500V DC | 1000V /1500V DC | 1000V /1500V DC |
| Operating Temperature | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ |
| Maximum Series Fuse Rating | 25A | 25A | 25A | 25A | 25A | 25A |
| Maximum Static Load, Front* | 5400Pa | 5400Pa | 5400Pa | 5400Pa | 5400Pa | 5400Pa |
| Maximum Static Load, Back* | 2400Pa | 2400Pa | 2400Pa | 2400Pa | 2400Pa | 2400Pa |
| NOCT | 45±2°C | 45±2°C | 45±2°C | 45±2°C | 45±2°C | 45±2°C |
| Safety Class | Class II | Class II | Class II | Class II | Class II | Class II |
| Fire Resistance Rating | UL Type 1 | UL Type 1 | UL Type 1 | UL Type 1 | UL Type 1 | UL Type 1 |
| SPECIFICATION | ||||||
|---|---|---|---|---|---|---|
| Cell | Mono, 11 BB | Mono, 11 BB | Mono, 11 BB | Mono, 11 BB | Mono, 11 BB | Mono, 11 BB |
| Weight | 25.2 kg | 25.2 kg | 25.2 kg | 25.2 kg | 25.2 kg | 25.2 kg |
| Dimensions | 2093±2 mm×1134±2 mm×30±1 mm | 2093±2 mm×1134±2 mm×30±1 mm | 2093±2 mm×1134±2 mm×30±1 mm | 2093±2 mm×1134±2 mm×30±1 mm | 2093±2 mm×1134±2 mm×30±1 mm | 2093±2 mm×1134±2 mm×30±1 mm |
| Cable Cross-section | 4mm² (IEC), 12 AWG (UL) | 4mm² (IEC), 12 AWG (UL) | 4mm² (IEC), 12 AWG (UL) | 4mm² (IEC), 12 AWG (UL) | 4mm² (IEC), 12 AWG (UL) | 4mm² (IEC), 12 AWG (UL) |
| Number of Cells | 132 (6×22) | 132 (6×22) | 132 (6×22) | 132 (6×22) | 132 (6×22) | 132 (6×22) |
| Junction Box | IP68, 3 diodes | IP68, 3 diodes | IP68, 3 diodes | IP68, 3 diodes | IP68, 3 diodes | IP68, 3 diodes |
| Connector | QC 4.10-35I/ MC4-EVO2A | QC 4.10-35I/ MC4-EVO2A | QC 4.10-35I/ MC4-EVO2A | QC 4.10-35I/ MC4-EVO2A | QC 4.10-35I/ MC4-EVO2A | QC 4.10-35I/ MC4-EVO2A |
| Cable Length (including connector) | 1200 mm(+) /1200 mm(-) | 1200 mm(+) /1200 mm(-) | 1200 mm(+) /1200 mm(-) | 1200 mm(+) /1200 mm(-) | 1200 mm(+) /1200 mm(-) | 1200 mm(+) /1200 mm(-) |
| Packaging Configuration | 36 pcs/pallet, 792 pcs/container | 36 pcs/pallet, 792 pcs/container | 36 pcs/pallet, 792 pcs/container | 36 pcs/pallet, 792 pcs/container | 36 pcs/pallet, 792 pcs/container | 36 pcs/pallet, 792 pcs/container |
| COMPREHENSIVE CERTIFICATIONS | ||||||
|---|---|---|---|---|---|---|
|
IEC 61215, IEC 61730, UL 61215, UL 61730 ISO 9001: 2015 Quality Management Systems ISO 14001: 2015 Environmental Management Systems ISO 45001: 2018 Occupational Health and Safety Management Systems IEC TS 62941: 2016 Ground-mounted Photovoltaic (PV) Modules – Guidelines for Increasing Confidence in the Qualification of PV Module Design and Type Approval |
