JINKO JKM480N-60HL4-V BF Module

SKU: F10C03 EAN: 5905951588933

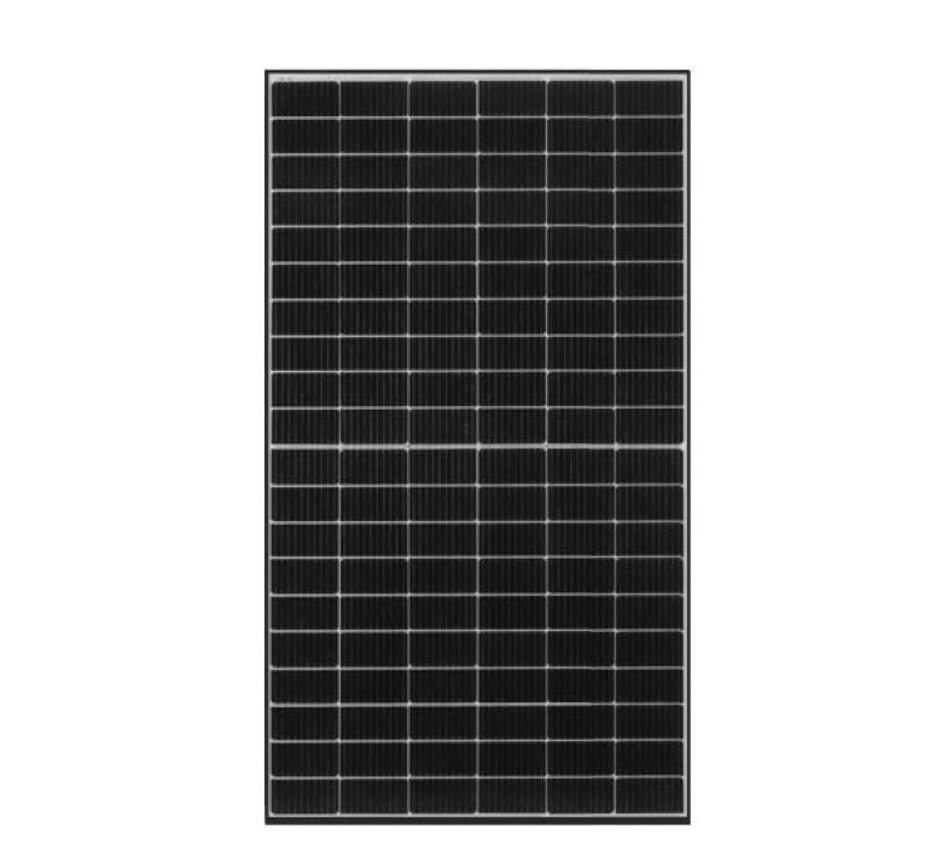

Jinko JKM480N-60HL4-V BF
Manufacturer

Power

Frame color

Efficiency

Tier 1

Product warranty

Linear power warranty

Number of BusBar

Frame thickness

Height

Width

Maximum static load (Pa)

Cable length (+)

Cable length (-)

200 mm
Quantity per pallet

Quantity per container

Weight 24,2 kg
Net price 84,35 €
Gross

84,35 €
Gross

84,35 €
Gross

Datasheet Jinko JKM480N-60HL4-V BF datasheet-jinko-jkm480n-60hl4-v-bf.pdf

Product details

Manufacturer

Power

Frame color

Efficiency

Tier 1

Product warranty

Linear power warranty

Number of BusBar

Frame thickness

Height

Width

Maximum static load (Pa)

Cable length (+)

Cable length (-)

200 mm
Quantity per pallet

Quantity per container

Weight 24,2 kg

Jinko Solar Tiger Neo Type N 60HL4-(V) 460-480 W Photovoltaic Module

Jinko Solar Tiger Neo photovoltaic modules are a modern solution for efficient electricity production. With N-type technology and advanced features, they offer high efficiency and long-lasting performance.

Main Features:

  • SMBB Technology – Enhances light capture and energy storage, resulting in higher output power and reliability of the module.
  • High Resistance – The modules exhibit excellent resistance to salt mist, ammonia, and mechanical loads up to 2400 Pa (wind) and 5400 Pa (snow).
  • PID Resistance – Guaranteed protection against potential-induced degradation (PID), thanks to an optimized manufacturing process.
  • Hot 2.0 Technology – N-type modules offer greater reliability and lower degradation from LID/LETID.
  • Performance Warranty – 12-year product warranty and 30-year linear performance warranty, with an annual degradation rate of 0.40%.
  • High Efficiency – Module efficiency ranges from 21.32% to 22.24%, ensuring effective energy production.

Who is this a good choice for?

Jinko Solar Tiger Neo modules provide high energy efficiency, durability, and resistance to harsh weather conditions. With modern technology and long-term warranty, they are an ideal solution for applications in photovoltaic systems.

Datasheet Jinko JKM480N-60HL4-V BF datasheet-jinko-jkm480n-60hl4-v-bf.pdf

Module Specifications

Electrical Parameters (STC & NOCT)
Parameter JKM460N-60HL4-V JKM465N-60HL4-V JKM470N-60HL4-V JKM475N-60HL4-V JKM480N-60HL4-V
STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Maximum Power (Pmax) [W] 460 346 465 350 470 353 475 357 480 361
Maximum Power Voltage (Vmp) [V] 34.72 32.60 34.89 32.77 35.05 32.94 35.21 33.10 35.38 33.27
Maximum Power Current (Imp) [A] 13.25 10.61 13.33 10.67 13.41 10.73 13.49 10.79 13.57 10.85
Open Circuit Voltage (Voc) [V] 42.05 39.94 42.22 40.10 42.38 40.25 42.54 40.41 42.71 40.57
Short Circuit Current (Isc) [A] 13.99 11.29 14.07 11.36 14.15 11.42 14.23 11.49 14.31 11.55
Module Efficiency STC [%] 21.32 21.55 21.78 22.01 22.24
Mechanical Specification
Parameter Value Value Value Value Value
Cell Type N-Type Monocrystalline N-Type Monocrystalline N-Type Monocrystalline N-Type Monocrystalline N-Type Monocrystalline
Number of Cells 120 (6×20) 120 (6×20) 120 (6×20) 120 (6×20) 120 (6×20)
Dimensions [mm] 1903×1134×30 mm 1903×1134×30 mm 1903×1134×30 mm 1903×1134×30 mm 1903×1134×30 mm
Weight [kg] 24.2 kg 24.2 kg 24.2 kg 24.2 kg 24.2 kg
Front Glass 3.2 mm, anti-reflective coating, high transmission coefficient, low iron content, tempered glass 3.2 mm, anti-reflective coating, high transmission coefficient, low iron content, tempered glass 3.2 mm, anti-reflective coating, high transmission coefficient, low iron content, tempered glass 3.2 mm, anti-reflective coating, high transmission coefficient, low iron content, tempered glass 3.2 mm, anti-reflective coating, high transmission coefficient, low iron content, tempered glass
Frame Anodized Aluminum Alloy Anodized Aluminum Alloy Anodized Aluminum Alloy Anodized Aluminum Alloy Anodized Aluminum Alloy
Junction Box IP68 Protection Class IP68 Protection Class IP68 Protection Class IP68 Protection Class IP68 Protection Class
Output Wires TUV 1×4.0 mm² (+): 400 mm, (-): 200 mm or custom length TUV 1×4.0 mm² (+): 400 mm, (-): 200 mm or custom length TUV 1×4.0 mm² (+): 400 mm, (-): 200 mm or custom length TUV 1×4.0 mm² (+): 400 mm, (-): 200 mm or custom length TUV 1×4.0 mm² (+): 400 mm, (-): 200 mm or custom length
Temperature Coefficients & System Connection Parameters
Parameter Value Value Value Value Value
Power Temperature Coefficient (Pmax) -0.30%/°C -0.30%/°C -0.30%/°C -0.30%/°C -0.30%/°C
Voltage Temperature Coefficient (Voc) -0.25%/°C -0.25%/°C -0.25%/°C -0.25%/°C -0.25%/°C
Current Temperature Coefficient (Isc) +0.046%/°C +0.046%/°C +0.046%/°C +0.046%/°C +0.046%/°C
Nominal Operating Cell Temperature (NOCT) 45 ± 2°C 45 ± 2°C 45 ± 2°C 45 ± 2°C 45 ± 2°C
Operating Temperature [°C] -40 ~ +85 -40 ~ +85 -40 ~ +85 -40 ~ +85 -40 ~ +85
Maximum System Voltage [V] 1000/1500 V DC (IEC) 1000/1500 V DC (IEC) 1000/1500 V DC (IEC) 1000/1500 V DC (IEC) 1000/1500 V DC (IEC)
Maximum Series Fuse Rating [A] 25 A 25 A 25 A 25 A 25 A
Power Tolerance 0 ~ +3% 0 ~ +3% 0 ~ +3% 0 ~ +3% 0 ~ +3%
Mechanical Resistance
Parameter Value Value Value Value Value
Wind Load 2400 Pa 2400 Pa 2400 Pa 2400 Pa 2400 Pa
Snow Load 5400 Pa 5400 Pa 5400 Pa 5400 Pa 5400 Pa
Packaging Configuration
Parameter Value Value Value Value Value
Pallet 36 pcs / pallet 36 pcs / pallet 36 pcs / pallet 36 pcs / pallet 36 pcs / pallet
Stack 72 pcs / stack 72 pcs / stack 72 pcs / stack 72 pcs / stack 72 pcs / stack
40’HQ Container 864 pcs / 40’HQ Container 864 pcs / 40’HQ Container 864 pcs / 40’HQ Container 864 pcs / 40’HQ Container 864 pcs / 40’HQ Container
