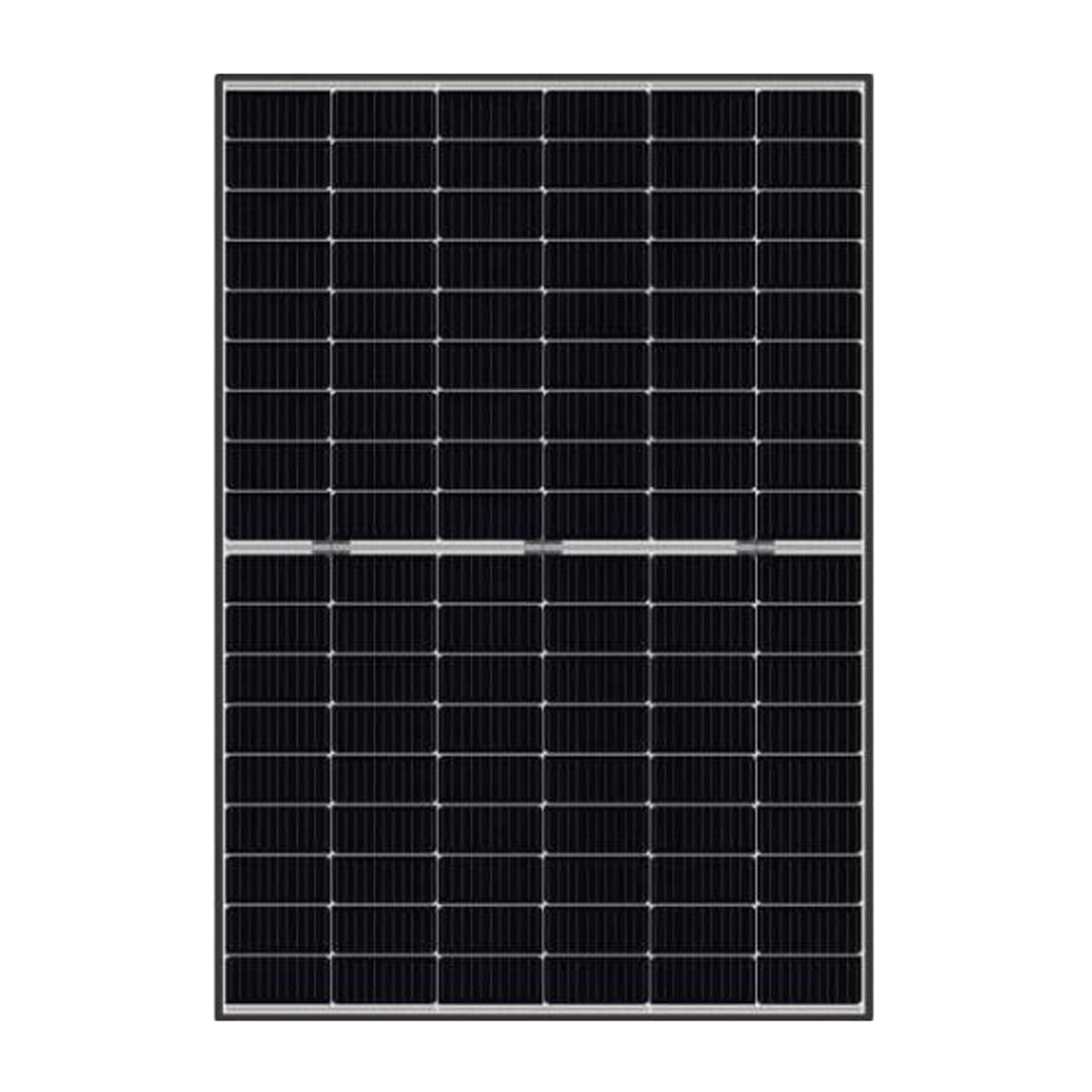

JOLYWOOD JW-HD108N-420W Full Black Module / Bifacial

SKU: F1907 EAN: 5905951580241
Manufacturer

Power

Frame color

Efficiency

Tier 1

Product warranty

Linear power warranty

Number of BusBar

Fire resistance class

Frame thickness

Height

Width

Maximum static load (Pa)

Cable length (+)

Cable length (-)

1400 mm

Quantity per pallet

Quantity per container

Weight 24,5 kg
Net price 66,90
Gross

66,90
Gross

In stock:

502 szt
Login to place an order

66,90
Gross

In stock:

502 szt
Login to place an order

Datasheet Jolywood JW-HD108N-420W Full black / Bifacial datasheet-jolywood-jw-hd108n-420w-full-black-bifacial.pdf

Product details

Manufacturer

Power

Frame color

Efficiency

Tier 1

Product warranty

Linear power warranty

Number of BusBar

Fire resistance class

Frame thickness

Height

Width

Maximum static load (Pa)

Cable length (+)

Cable length (-)

1400 mm

Quantity per pallet

Quantity per container

Weight 24,5 kg

Jolywood JW-HD108N Series

The Jolywood photovoltaic modules from the JW-HD108N series are advanced, bifacial glass-glass modules featuring N-type monocrystalline cells that offer exceptional energy efficiency and an aesthetic appearance. With modern technologies and top-quality craftsmanship, these panels ensure reliable energy production for many years.

Key features of the JW-HD108N modules:

  • High output power – the maximum power of the module is 420 W with an efficiency level of 21.51%, ensuring top-level performance.
  • 10-30% higher energy yield – the bifacial design allows for an increase in energy production compared to conventional P-type modules.
  • No light-induced degradation – N-type cells are resistant to LID degradation, guaranteeing stable performance throughout their lifespan.
  • Better performance in low light – the modules achieve high efficiency even in low sunlight conditions, such as cloudy or foggy days.
  • Lower levelized cost of electricity (LCOE) – the high bifaciality ratio and low balance of system (BOS) costs result in a favorable cost-to-energy yield ratio.
  • Improved temperature coefficient – advanced passive technology ensures higher efficiency in high-temperature conditions.
  • Aesthetic appearance – thin wires and the distinctive black of the modules make them an excellent choice for installations where appearance matters.
  • Long-term warranty – a 12-year product warranty and a 30-year linear performance warranty with a maximum annual degradation of 0.4%.

Who is this a good choice for?

The Jolywood JW-HD108N modules are an ideal solution for discerning users who expect high efficiency, durability, and aesthetics. With advanced N-type cell technology and a bifacial glass-glass design, these panels are well-suited for both residential and commercial installations, providing stable and efficient energy production for decades.

Datasheet Jolywood JW-HD108N-420W Full black / Bifacial datasheet-jolywood-jw-hd108n-420w-full-black-bifacial.pdf

Technical Specification JW-HD108N SERIES

Electrical Properties (STC)
Parameter JW-HD108N 400 JW-HD108N 405 JW-HD108N 410 JW-HD108N 415 JW-HD108N 420
Maximum Power (Pmax) [W] 400 405 410 415 420
Voltage at MPP (Vmp) [V] 31.10 31.30 31.50 31.70 31.90
Current at MPP (Imp) [A] 12.87 12.95 13.02 13.10 13.17
Open Circuit Voltage (Voc) [V] 37.10 37.30 37.50 37.70 37.90
Short Circuit Current (Isc) [A] 13.67 13.75 13.82 13.91 13.98
Module Efficiency [%] 20.48 20.74 21.00 21.25 21.51
Electrical Properties (NOCT)
Maximum Power (Pmax) [W] 303 307 311 315 318
Voltage at MPP (Vmp) [V] 29.20 29.40 29.60 29.80 30.00
Current at MPP (Imp) [A] 10.38 10.44 10.50 10.56 10.62
Open Circuit Voltage (Voc) [V] 35.50 35.70 35.80 36.00 36.20
Short Circuit Current (Isc) [A] 11.02 11.09 11.14 11.22 11.27
Operational Properties
Operating Temperature (°C) -40~+85 -40~+85 -40~+85 -40~+85 -40~+85
Maximum System Voltage (V) 1500 (IEC) 1500 (IEC) 1500 (IEC) 1500 (IEC) 1500 (IEC)
Maximum Series Fuse Rating (A) 30 30 30 30 30
Power Tolerance (W) 0~+5 0~+5 0~+5 0~+5 0~+5
Bifaciality* (%) 80 80 80 80 80
Temperature Coefficients
Temperature Coefficient for Pmax (%/°C) -0.300 -0.300 -0.300 -0.300 -0.300
Temperature Coefficient for Voc (%/°C) -0.250 -0.250 -0.250 -0.250 -0.250
Temperature Coefficient for Isc (%/°C) +0.045 +0.045 +0.045 +0.045 +0.045
Nominal Operating Cell Temperature (NOCT) (°C) 42±2 42±2 42±2 42±2 42±2
Mechanical Properties
Cell Dimension (mm) 182.00 x 91.00 182.00 x 91.00 182.00 x 91.00 182.00 x 91.00 182.00 x 91.00
Number of Cells 108 (12×9) 108 (12×9) 108 (12×9) 108 (12×9) 108 (12×9)
Module Dimensions (mm) 1722 x 1134 x 30 1722 x 1134 x 30 1722 x 1134 x 30 1722 x 1134 x 30 1722 x 1134 x 30
Weight (kg) 24.5 24.5 24.5 24.5 24.5
Front/Back Glass (mm) 2.0 / 2.0 2.0 / 2.0 2.0 / 2.0 2.0 / 2.0 2.0 / 2.0
Frame Anodized Aluminum Alloy Anodized Aluminum Alloy Anodized Aluminum Alloy Anodized Aluminum Alloy Anodized Aluminum Alloy
Junction Box IP68 (3 diodes) IP68 (3 diodes) IP68 (3 diodes) IP68 (3 diodes) IP68 (3 diodes)
Cable Dimensions (mm²; mm) 4.00; 1400 4.00; 1400 4.00; 1400 4.00; 1400 4.00; 1400
Differences in Generated Power (415 W as an example)
Power Gain (%) Peak Power (Pmax) (W) MPP Voltage (Vmp) (V) MPP Current (Imp) (A) Open Circuit Voltage (Voc) (V) Short Circuit Current (Isc) (A)
10% 448 31.70 14.13 37.70 14.99
15% 465 31.70 14.65 37.70 15.54
20% 481 31.70 15.17 37.70 16.08
25% 498 31.70 15.69 37.70 16.62
30% 515 31.80 16.20 37.80 17.16
Packaging Configuration
Container Type Piece/Palette Palette/Container Piece/Container
20’GP 36 6 216
40’GP 36 13 468
40’HQ 36 26 936
