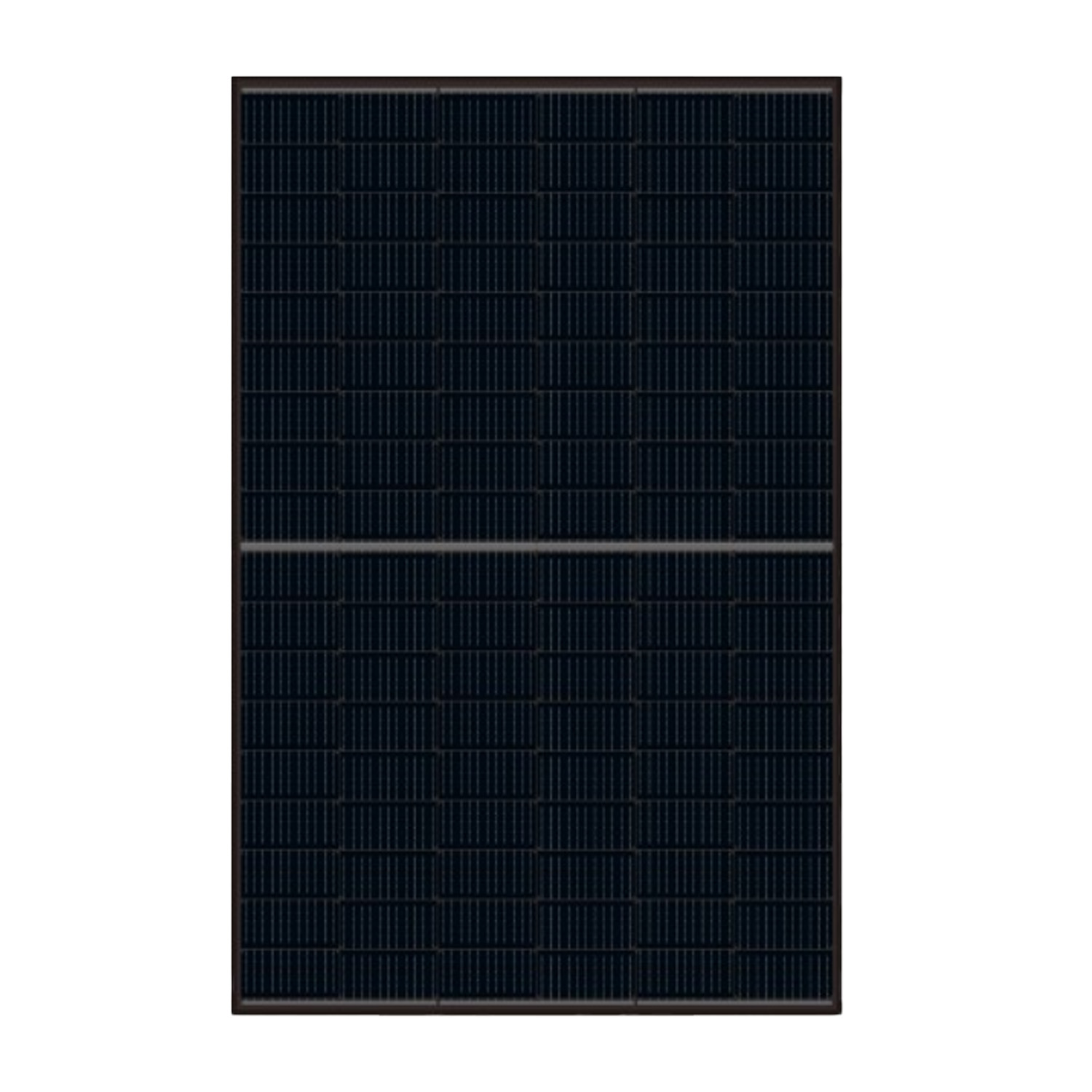

JOLYWOOD JW-HD108N-435W Full Black Module / Bifacial
SKU: F19071
EAN: 5905951587110
| Manufacturer | |
|---|---|
| Power | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Number of BusBar | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 180 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 24,5 kg |
Net price
72,72 €
Gross
Gross
Datasheet Jolywood JW-HD108N-435W Full black / Bifacial
datasheet-jolywood-jw-hd108n-435w-full-black-bifacial.pdf
Product details
| Manufacturer | |
|---|---|
| Power | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Number of BusBar | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 180 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 24,5 kg |
Jolywood Niwa Black JW-HD108N Series
The Jolywood photovoltaic modules from the Niwa Black JW-HD108N series feature advanced J-TOPCon2.0 technology with N-type cells, known for their exceptional performance, durability, and aesthetics. With excellent operating parameters in low light and high temperature conditions, these modules are an ideal choice for both residential and commercial installations.
Key Features of the Niwa Black JW-HD108N Modules:
- High Output Power – The maximum power of the module is 440 W with an efficiency level of 22.53%, ensuring top-notch energy efficiency.
- Additional Energy Production of 10-30% – The bifacial design allows for up to 30% more energy generation compared to P-type modules over a 30-year lifespan.
- No Light-Induced Degradation (LID) – N-type cells naturally mitigate light-induced degradation, enhancing the reliability of energy production.
- Increased Reliability – J-TOPCon2.0 technology provides complete electrical insulation, no current leakage, and greater safety for rooftop installations.
- Better Performance in Low Light – The modules achieve high efficiency even in low sunlight conditions, such as cloudy or foggy days.
- Superior Temperature Coefficient – Passive cell contact technology allows for higher efficiency at elevated temperatures.
- Outstanding Appearance – Slim wires and uniform black make the modules visually appealing, blending seamlessly with any roof.
- Long-Term Warranty – A 25-year product warranty and a 30-year linear power warranty with a maximum annual degradation of 0.4% ensure long-lasting investment security.
Who Is This a Good Choice For?
The Jolywood Niwa Black JW-HD108N modules are an excellent solution for users seeking the highest efficiency and durability in modules, while also appreciating aesthetics. With advanced N-type cell technology and outstanding performance parameters under various conditions, these panels are perfect for rooftop installations, providing reliable operation for decades.
Datasheet Jolywood JW-HD108N-435W Full black / Bifacial
datasheet-jolywood-jw-hd108n-435w-full-black-bifacial.pdf
Technical Specification JW-HD108N SERIES
| Electrical Properties (STC) | ||||||
|---|---|---|---|---|---|---|
| Parameter | JW-HD108N 415 | JW-HD108N 420 | JW-HD108N 425 | JW-HD108N 430 | JW-HD108N 435 | JW-HD108N 440 |
| Test Conditions | Front Side | Front Side | Front Side | Front Side | Front Side | Front Side |
| Maximum Power (Pmax) [W] | 415 | 420 | 425 | 430 | 435 | 440 |
| Voltage at MPP (Vmp) [V] | 31.7 | 31.9 | 32.1 | 32.3 | 32.5 | 32.7 |
| Current at MPP (Imp) [A] | 13.10 | 13.17 | 13.24 | 13.32 | 13.39 | 13.46 |
| Open Circuit Voltage (Voc) [V] | 37.7 | 37.9 | 38.1 | 38.3 | 38.4 | 38.6 |
| Short Circuit Current (Isc) [A] | 13.91 | 13.98 | 14.05 | 14.12 | 14.18 | 14.25 |
| Module Efficiency [%] | 21.25 | 21.51 | 21.76 | 22.02 | 22.27 | 22.53 |
| Electrical Properties (NOCT) | ||||||
| Test Conditions | Front Side | Front Side | Front Side | Front Side | Front Side | Front Side |
| Maximum Power (Pmax) [W] | 315 | 318 | 322 | 326 | 330 | 334 |
| Voltage at MPP (Vmp) [V] | 29.8 | 30.0 | 30.2 | 30.3 | 30.5 | 30.7 |
| Current at MPP (Imp) [A] | 10.56 | 10.62 | 10.67 | 10.74 | 10.82 | 10.88 |
| Open Circuit Voltage (Voc) [V] | 36.0 | 36.2 | 36.4 | 36.6 | 36.8 | 37.0 |
| Short Circuit Current (Isc) [A] | 11.22 | 11.27 | 11.33 | 11.38 | 11.44 | 11.49 |
| Operational Properties | ||||||
| Operating Temperature (°C) | -40~+85 | -40~+85 | -40~+85 | -40~+85 | -40~+85 | -40~+85 |
| Maximum System Voltage (V) | 1500 (IEC) | 1500 (IEC) | 1500 (IEC) | 1500 (IEC) | 1500 (IEC) | 1500 (IEC) |
| Maximum Series Fuse Rating (A) | 30 | 30 | 30 | 30 | 30 | 30 |
| Power Tolerance (W) | 0~+5 | 0~+5 | 0~+5 | 0~+5 | 0~+5 | 0~+5 |
| Bifaciality* (%) | 80 | 80 | 80 | 80 | 80 | 80 |
| Front Static Load | Snow Load 5400Pa, Wind Load 2400Pa | Snow Load 5400Pa, Wind Load 2400Pa | Snow Load 5400Pa, Wind Load 2400Pa | Snow Load 5400Pa, Wind Load 2400Pa | Snow Load 5400Pa, Wind Load 2400Pa | Snow Load 5400Pa, Wind Load 2400Pa |
| Temperature Coefficients | ||||||
| Temperature Coefficient for Pmax (%/°C) | -0.300 | -0.300 | -0.300 | -0.300 | -0.300 | |
| Temperature Coefficient for Voc (%/°C) | -0.250 | -0.250 | -0.250 | -0.250 | -0.250 | |
| Temperature Coefficient for Isc (%/°C) | +0.045 | +0.045 | +0.045 | +0.045 | +0.045 | |
| Nominal Operating Cell Temperature (NOCT) (°C) | 42±2 | 42±2 | 42±2 | 42±2 | 42±2 | |
| Mechanical Properties | ||||||
| Cell Dimensions (mm) | 182.00 x 91.00 | 182.00 x 91.00 | 182.00 x 91.00 | 182.00 x 91.00 | 182.00 x 91.00 | |
| Number of Cells (pcs) | 108 (12×9) | 108 (12×9) | 108 (12×9) | 108 (12×9) | 108 (12×9) | |
| Module Dimensions (mm) | 1722 x 1134 x 30 | 1722 x 1134 x 30 | 1722 x 1134 x 30 | 1722 x 1134 x 30 | 1722 x 1134 x 30 | |
| Weight (kg) | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | |
| Front/Back Glass (mm) | 2.0 / 2.0 | 2.0 / 2.0 | 2.0 / 2.0 | 2.0 / 2.0 | 2.0 / 2.0 | |
| Frame | Anodized Aluminum Alloy | Anodized Aluminum Alloy | Anodized Aluminum Alloy | Anodized Aluminum Alloy | Anodized Aluminum Alloy | |
| Junction Box | IP68 (3 diodes) | IP68 (3 diodes) | IP68 (3 diodes) | IP68 (3 diodes) | IP68 (3 diodes) | |
| Cable Dimensions (mm²; mm) | 4.00; +300/-180 (cable length can be adjusted) | 4.00; +300/-180 (cable length can be adjusted) | 4.00; +300/-180 (cable length can be adjusted) | 4.00; +300/-180 (cable length can be adjusted) | 4.00; +300/-180 (cable length can be adjusted) | |
| Differences in Generated Power (415 W as an example) | ||||||
| Power Gain (%) | Peak Power (Pmax) (W) | MPP Voltage (Vmp) (V) | MPP Current (Imp) (A) | Open Circuit Voltage (Voc) (V) | Short Circuit Current (Isc) (A) | |
| 10% | 448 | 31.7 | 14.13 | 37.7 | 14.99 | |
| 15% | 465 | 31.7 | 14.65 | 37.7 | 15.54 | |
| 20% | 481 | 31.7 | 15.17 | 37.7 | 16.08 | |
| 25% | 498 | 31.7 | 15.69 | 37.7 | 16.62 | |
| 30% | 515 | 31.8 | 16.20 | 37.8 | 17.16 | |
