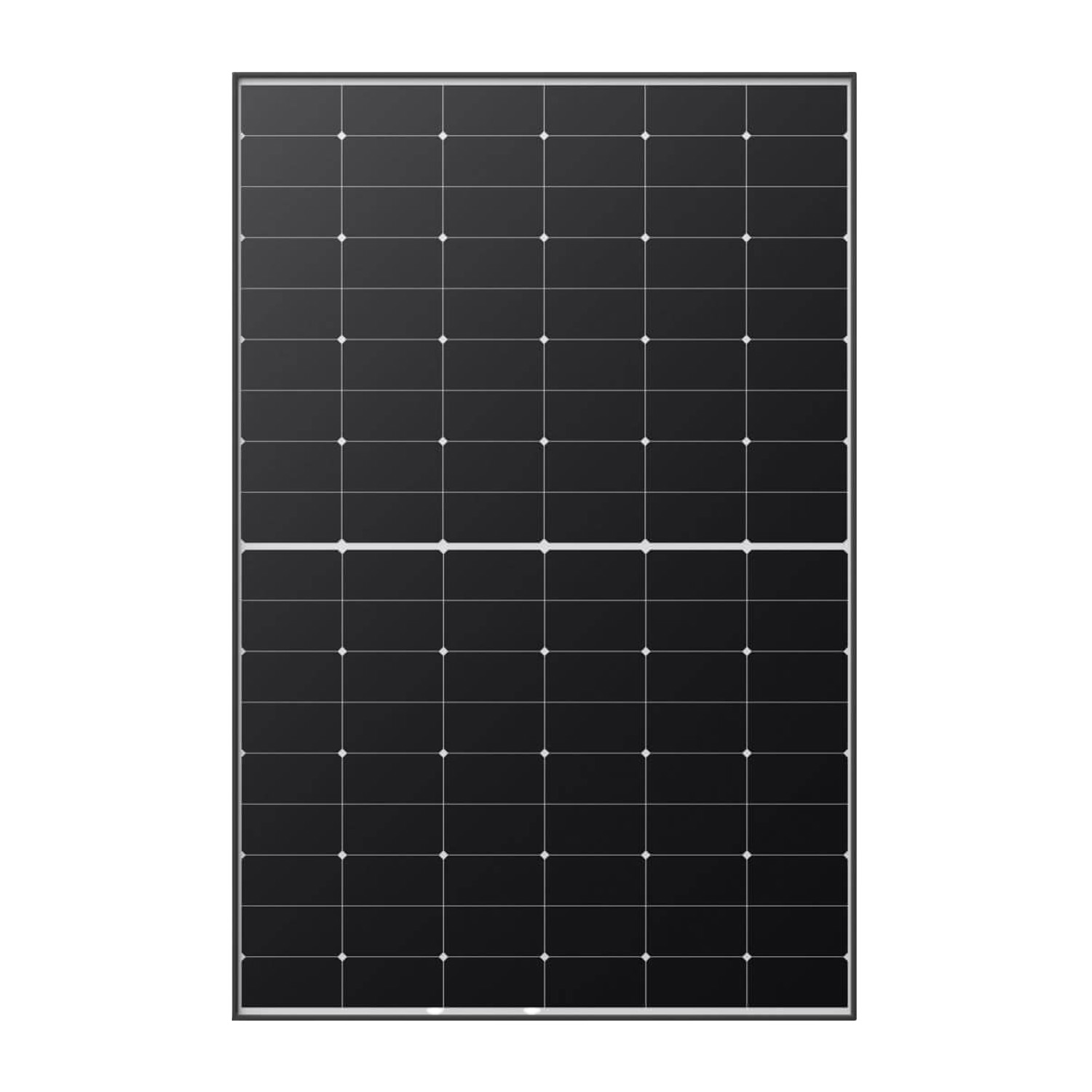

LONGI Module 440 – LR5-54HTH-440M BF

SKU: F13070 EAN: 5905951589206
LONGI Module 440 - LR5-54HTH-440M BF
Manufacturer

Power

Frame color

Efficiency

Product warranty

Linear power warranty

Frame thickness

Height

Width

Maximum static load (Pa)

Cable length (+)

Cable length (-)

1200 mm
Quantity per pallet

Quantity per container

Weight 20,8 kg
Net price 47,99 €
Gross

47,99 €
Gross

47,99 €
Gross

Datasheet Longi 440 - LR5-54HTH-440M BF datasheet-longi-440-lr5-54hth-440m-bf.pdf

Product details

Manufacturer

Power

Frame color

Efficiency

Product warranty

Linear power warranty

Frame thickness

Height

Width

Maximum static load (Pa)

Cable length (+)

Cable length (-)

1200 mm
Quantity per pallet

Quantity per container

Weight 20,8 kg

Longi Hi-MO 6 LR5-54HTH 420~440M Series

Longi photovoltaic modules from the Hi-MO 6 LR5-54HTH 420~440M series are advanced panels designed to meet the needs of households. With top-notch craftsmanship, modern design, and high energy efficiency, they are the ideal solution for users seeking reliable and aesthetically pleasing photovoltaic solutions.

Key Features of the Hi-MO 6 LR5-54HTH Modules:

  • High Efficiency – The maximum efficiency of the module is 22.5%, allowing for effective use of solar energy even in limited spaces.
  • Power Tolerance – The modules feature a positive power tolerance of 0~3%, providing additional energy yield.
  • Low Power Degradation – Power degradation is less than 1.5% in the first year and 0.40% annually in years 2-25, ensuring long-term performance stability.
  • Adaptation to Household Needs – The modules are designed with residential photovoltaic installations in mind, combining efficiency and aesthetics.
  • Modern Design – The minimalist design of the modules facilitates their integration with building architecture, highlighting the contemporary nature of the installation.
  • Long-Term Reliability – A 15-year warranty on materials and workmanship, along with a 25-year linear performance warranty, ensures investment security.

Who is this a good choice for?

The Longi Hi-MO 6 LR5-54HTH 420~440M modules are an excellent choice for households looking for modules with the highest efficiency, durability, and modern appearance. With minimal power degradation and high tolerance, these panels offer stable energy production for many years, providing savings and reliability.

Datasheet Longi 440 - LR5-54HTH-440M BF datasheet-longi-440-lr5-54hth-440m-bf.pdf

Technical Specification Longi Solar LR5-54HTH-420 – LR5-54HTH-440M

Electrical Parameters (STC)
Parameter LR5-54HTH-420M LR5-54HTH-425M LR5-54HTH-430M LR5-54HTH-435M LR5-54HTH-440M
Maximum Power (Pmax) [W] 420 425 430 435 440
Open Circuit Voltage (Voc) [V] 38.73 38.93 39.13 39.33 39.53
Short Circuit Current (Isc) [A] 14.00 14.07 14.15 14.22 14.30
Voltage at Maximum Power (Vmp) [V] 32.44 32.64 32.84 33.04 33.24
Current at Maximum Power (Imp) [A] 12.95 13.03 13.10 13.17 13.24
Module Efficiency [%] 21.5 21.8 22.0 22.3 22.5
Electrical Parameters (NOCT)
Maximum Power (Pmax) [W] 314 318 321 325 329
Open Circuit Voltage (Voc) [V] 36.36 36.55 36.74 36.93 37.11
Short Circuit Current (Isc) [A] 11.31 11.36 11.43 11.49 11.55
Voltage at Maximum Power (Vmp) [V] 29.60 29.78 29.97 30.15 30.33
Current at Maximum Power (Imp) [A] 10.60 10.67 10.72 10.78 10.85
Mechanical Parameters
Cell Arrangement 108 (6×18) 108 (6×18) 108 (6×18) 108 (6×18) 108 (6×18)
Junction Box IP68 IP68 IP68 IP68 IP68
Output Cable 4 mm², ±1200 mm 4 mm², ±1200 mm 4 mm², ±1200 mm 4 mm², ±1200 mm 4 mm², ±1200 mm
Glass Single layer, 3.2 mm tempered coated glass Single layer, 3.2 mm tempered coated glass Single layer, 3.2 mm tempered coated glass Single layer, 3.2 mm tempered coated glass Single layer, 3.2 mm tempered coated glass
Frame Anodized aluminum alloy frame Anodized aluminum alloy frame Anodized aluminum alloy frame Anodized aluminum alloy frame Anodized aluminum alloy frame
Weight 20.8 kg 20.8 kg 20.8 kg 20.8 kg 20.8 kg
Dimensions 1722×1134×30 mm 1722×1134×30 mm 1722×1134×30 mm 1722×1134×30 mm 1722×1134×30 mm
Packaging 36 pcs on a pallet / 216 pcs in a standard 20’ container / 936 pcs in a high 40’ container 36 pcs on a pallet / 216 pcs in a standard 20’ container / 936 pcs in a high 40’ container 36 pcs on a pallet / 216 pcs in a standard 20’ container / 936 pcs in a high 40’ container 36 pcs on a pallet / 216 pcs in a standard 20’ container / 936 pcs in a high 40’ container 36 pcs on a pallet / 216 pcs in a standard 20’ container / 936 pcs in a high 40’ container
Operating Parameters
Operating Temperature -40 °C ~ +85 °C -40 °C ~ +85 °C -40 °C ~ +85 °C -40 °C ~ +85 °C -40 °C ~ +85 °C
Output Power Tolerance 0~+5% 0~+5% 0~+5% 0~+5% 0~+5%
Tolerance for Voc and Isc Values ±3% ±3% ±3% ±3% ±3%
Maximum System Voltage 1500 V DC (IEC/UL) 1500 V DC (IEC/UL) 1500 V DC (IEC/UL) 1500 V DC (IEC/UL) 1500 V DC (IEC/UL)
Maximum Protection 25 A 25 A 25 A 25 A 25 A
Cell Temperature Under Normal Operating Conditions (NOCT) 45±2 °C 45±2 °C 45±2 °C 45±2 °C 45±2 °C
Protection Class II II II II II
Fire Rating Class Type 1 or 2 UL, Class C IEC Type 1 or 2 UL, Class C IEC Type 1 or 2 UL, Class C IEC Type 1 or 2 UL, Class C IEC Type 1 or 2 UL, Class C IEC
Mechanical Loads
Front Static Load 5400 Pa 5400 Pa 5400 Pa 5400 Pa 5400 Pa
Rear Static Load 2400 Pa 2400 Pa 2400 Pa 2400 Pa 2400 Pa
Hail Test 25 mm, hail impact at 23 m/s 25 mm, hail impact at 23 m/s 25 mm, hail impact at 23 m/s 25 mm, hail impact at 23 m/s 25 mm, hail impact at 23 m/s
Thermal Parameters (STC)
Temperature Coefficient for Isc +0.050%/°C +0.050%/°C +0.050%/°C +0.050%/°C +0.050%/°C
Temperature Coefficient for Voc -0.233%/°C -0.233%/°C -0.233%/°C -0.233%/°C -0.233%/°C
Temperature Coefficient for Pmax -0.290%/°C -0.290%/°C -0.290%/°C -0.290%/°C -0.290%/°C
