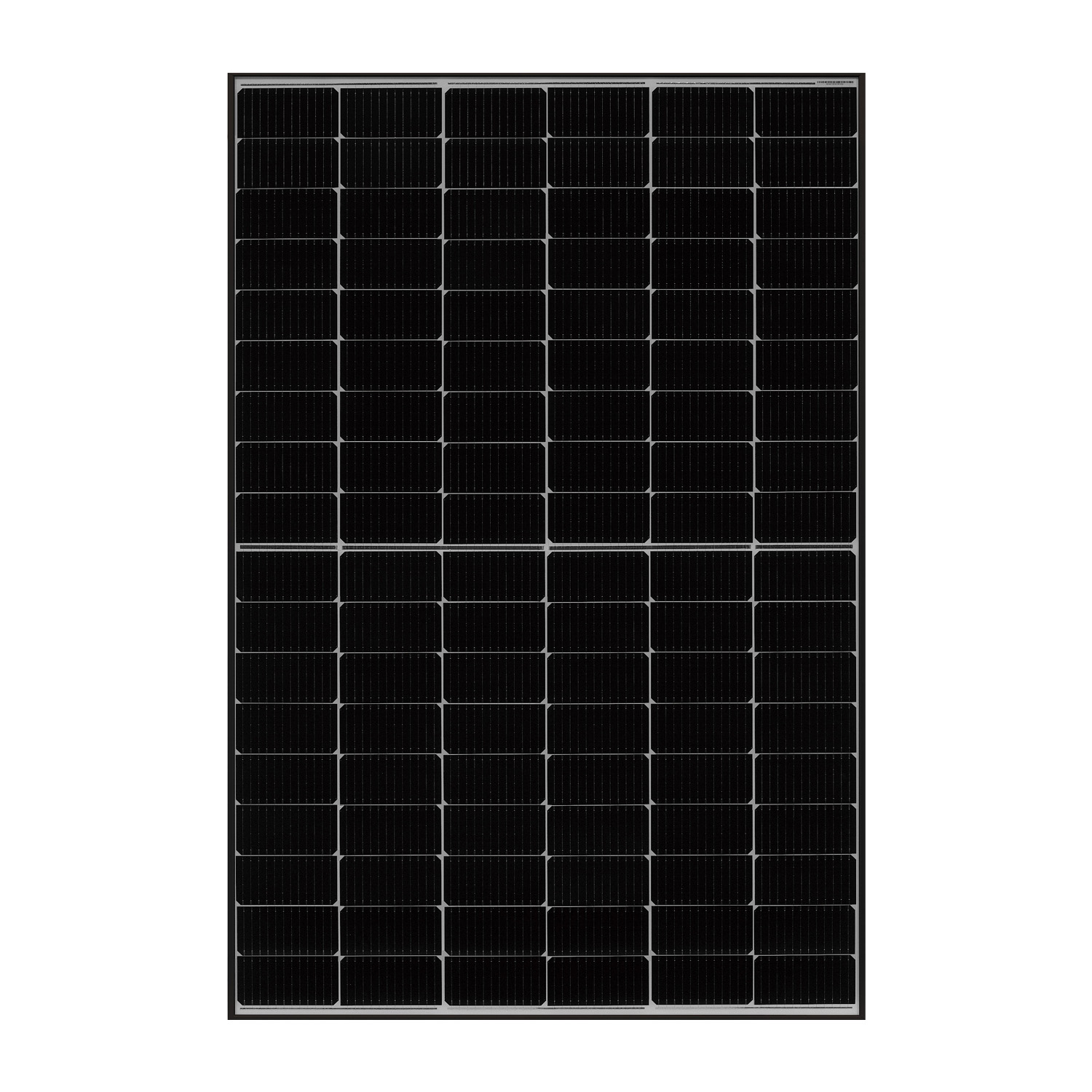

Q-CELLS Q.PEAK DUO M-G11S+ 410/111 BF Module
SKU: F140U-01
EAN: 5905951587653
| Manufacturer | |
|---|---|
| Power | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Number of BusBar | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 1265 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 21,1 kg |
Net price
55,26 €
Gross
Gross
Modern Slavery statement Q-Cells Q.PEAK DUO M-G11S+ 410/111 BF
modern-slavery-statement-q-cells-q-peak-duo-m-g11s-410-111-bf.pdf
Product details
| Manufacturer | |
|---|---|
| Power | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Number of BusBar | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 1265 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 21,1 kg |
Hanwha Q CELLS Q.PEAK DUO M-G11S+ SERIES
The photovoltaic modules from the Q.PEAK DUO M-G11S+ SERIES feature the latest Q.ANTUM DUO technology, enabling them to surpass the 21% efficiency barrier and ensuring exceptional energy performance. With their robust construction and advanced protective features, these panels provide reliability and excellent performance in various weather conditions.
Key Features of the Q.PEAK DUO M-G11S+ SERIES Modules:
- Breakthrough Efficiency – thanks to an optimized module layout, Q.ANTUM DUO technology achieves efficiencies above 21%, enhancing energy productivity.
- Secure Investment – these modules come with a 25-year product warranty and a linear performance guarantee, ensuring peace of mind for long-term use.
- High Long-Term Performance – technologies like Anti LeTID, Anti PID, and Hot-Spot Protect reduce power loss and ensure reliability for many years.
- Resistance to Extreme Weather Conditions – the high-quality aluminum frame is certified to withstand snow loads up to 8100 Pa and wind loads up to 4000 Pa.
- Versatility in Any Conditions – the modules provide excellent energy yields even in low sunlight and high-temperature scenarios.
- Highest Quality Standards – the products have undergone rigorous testing and hold TUV Rheinland certification, confirming their reliability and quality.
Who is this a good choice for?
The Q.PEAK DUO M-G11S+ SERIES modules are an ideal solution for individuals and businesses seeking high-efficiency and durable photovoltaic panels. With advanced technologies and resilience to extreme weather conditions, these panels are an excellent choice for both residential and commercial applications, guaranteeing long-lasting energy savings.
Modern Slavery statement Q-Cells Q.PEAK DUO M-G11S+ 410/111 BF
modern-slavery-statement-q-cells-q-peak-duo-m-g11s-410-111-bf.pdf
Technical Specification of Q.PEAK DUO BLK M-G11S+ SERIES
| Electrical Parameters | |||||
|---|---|---|---|---|---|
| Minimum Performance Under Standard Test Conditions, STC (power tolerance +5 W / −0 W) | |||||
| Power Class | 400 | 405 | 410 | 415 | 420 |
| Power at the MPP [P MPP] (W) |
400 | 405 | 410 | 415 | 420 |
| Short-Circuit Current [I SC] (A) |
13.88 | 13.91 | 13.95 | 13.99 | 14.03 |
| Open-Circuit Voltage [V OC] (V) |
37.06 | 37.09 | 37.11 | 37.14 | 37.17 |
| Current at the MPP [I MPP] (A) |
13.16 | 13.23 | 13.30 | 13.37 | 13.44 |
| Voltage at the MPP [V MPP] (V) |
30.40 | 30.62 | 30.83 | 31.05 | 31.26 |
| Efficiency [%] | ≥ 20.5 | ≥ 20.7 | ≥ 21.0 | ≥ 21.3 | ≥ 21.5 |
| Minimum Performance in Normal Operating Conditions, NMOT | |||||
| Power Class | 400 | 405 | 410 | 415 | 420 |
| Power at the MPP [P MPP] (W) |
300.1 | 303.8 | 307.6 | 311.3 | 315.1 |
| Short-Circuit Current [I SC] (A) |
11.18 | 11.21 | 11.24 | 11.27 | 11.30 |
| Open-Circuit Voltage [V OC] (V) |
34.95 | 34.97 | 35.00 | 35.03 | 35.05 |
| Current at the MPP [I MPP] (A) |
10.34 | 10.41 | 10.47 | 10.53 | 10.59 |
| Voltage at the MPP [V MPP] (V) |
29.01 | 29.20 | 29.38 | 29.56 | 29.74 |
| Mechanical Specification | |||||
| Dimensions | 1722 mm × 1134 mm × 30 mm (including frame) | 1722 mm × 1134 mm × 30 mm (including frame) | 1722 mm × 1134 mm × 30 mm (including frame) | 1722 mm × 1134 mm × 30 mm (including frame) | 1722 mm × 1134 mm × 30 mm (including frame) |
| Weight | 21.1 kg | 21.1 kg | 21.1 kg | 21.1 kg | 21.1 kg |
| Front Cover | 3.2 mm thermally reinforced glass with anti-reflective technology | 3.2 mm thermally reinforced glass with anti-reflective technology | 3.2 mm thermally reinforced glass with anti-reflective technology | 3.2 mm thermally reinforced glass with anti-reflective technology | 3.2 mm thermally reinforced glass with anti-reflective technology |
| Back Cover | Composite film | Composite film | Composite film | Composite film | Composite film |
| Frame | Black, anodized aluminum | Black, anodized aluminum | Black, anodized aluminum | Black, anodized aluminum | Black, anodized aluminum |
| Cells | 6 × 18 monocrystalline Q.ANTUM solar cells | 6 × 18 monocrystalline Q.ANTUM solar cells | 6 × 18 monocrystalline Q.ANTUM solar cells | 6 × 18 monocrystalline Q.ANTUM solar cells | 6 × 18 monocrystalline Q.ANTUM solar cells |
| Connection Box | 53-101 mm × 32-60 mm × 15-18 mm, Protection class IP67, with bypass diodes |
53-101 mm × 32-60 mm × 15-18 mm, Protection class IP67, with bypass diodes |
53-101 mm × 32-60 mm × 15-18 mm, Protection class IP67, with bypass diodes |
53-101 mm × 32-60 mm × 15-18 mm, Protection class IP67, with bypass diodes |
53-101 mm × 32-60 mm × 15-18 mm, Protection class IP67, with bypass diodes |
| Cable | 4 mm² solar cable; (+) ≥ 1265 mm, (−) ≥ 1265 mm | 4 mm² solar cable; (+) ≥ 1265 mm, (−) ≥ 1265 mm | 4 mm² solar cable; (+) ≥ 1265 mm, (−) ≥ 1265 mm | 4 mm² solar cable; (+) ≥ 1265 mm, (−) ≥ 1265 mm | 4 mm² solar cable; (+) ≥ 1265 mm, (−) ≥ 1265 mm |
| Connector | Stäubli MC4, Hanwha Q CELLS HQC4; IP68 | Stäubli MC4, Hanwha Q CELLS HQC4; IP68 | Stäubli MC4, Hanwha Q CELLS HQC4; IP68 | Stäubli MC4, Hanwha Q CELLS HQC4; IP68 | Stäubli MC4, Hanwha Q CELLS HQC4; IP68 |
| System Connection Parameters | |||||
| Max. System Voltage | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V |
| Max. Reverse Current | 25 A | 25 A | 25 A | 25 A | 25 A |
| Max. Allowable Pressure/Tensile Load | 5400/2665 Pa | 5400/2665 Pa | 5400/2665 Pa | 5400/2665 Pa | 5400/2665 Pa |
| Max. Pressure/Tensile Load Testing | 8100/4000 Pa | 8100/4000 Pa | 8100/4000 Pa | 8100/4000 Pa | 8100/4000 Pa |
| Module Operating Temperature Allowance | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
| PV Module Classification | Class II | Class II | Class II | Class II | Class II |
| Fire Resistance Classification based on ANSI/UL 61730 | C/TYPE 2 | C/TYPE 2 | C/TYPE 2 | C/TYPE 2 | C/TYPE 2 |
| Temperature Coefficients | |||||
| Temperature Coefficient of Short-Circuit Current ISC | α [%/K] +0.04 | α [%/K] +0.04 | α [%/K] +0.04 | α [%/K] +0.04 | α [%/K] +0.04 |
| Temperature Coefficient of Open-Circuit Voltage UOC | β [%/K] -0.27 | β [%/K] -0.27 | β [%/K] -0.27 | β [%/K] -0.27 | β [%/K] -0.27 |
| Temperature Coefficient of Power PMPP | γ [%/K] -0.34 | γ [%/K] -0.34 | γ [%/K] -0.34 | γ [%/K] -0.34 | γ [%/K] -0.34 |
| Nominal Module Operating Temperature | NMOT [°C] 43±3 | NMOT [°C] 43±3 | NMOT [°C] 43±3 | NMOT [°C] 43±3 | NMOT [°C] 43±3 |
