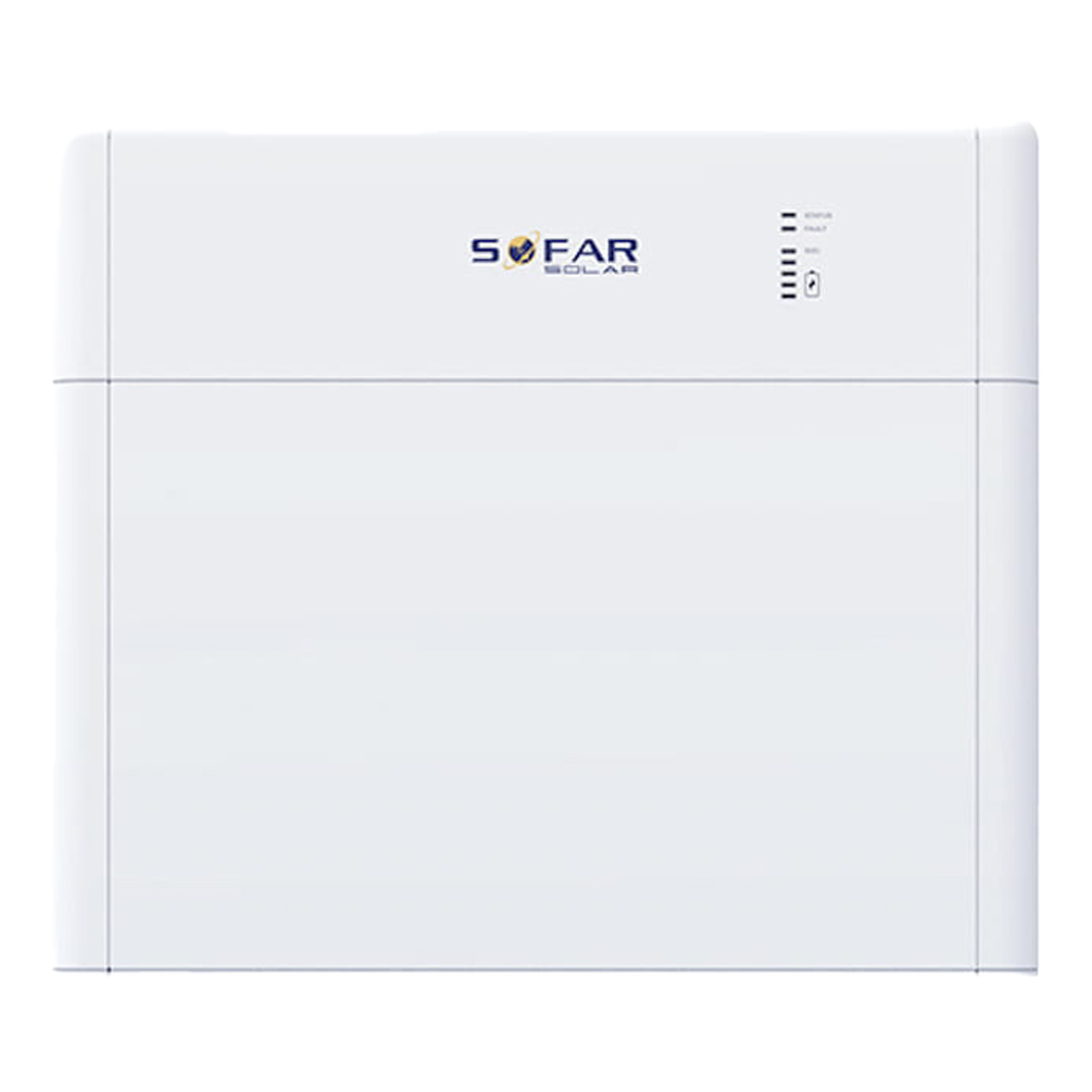

SOFAR BTS 5K Battery Module
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 56,68 kg |
Gross
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 56,68 kg |
Sofar BTS E5~E20-DS5 – Intelligent Energy Storage
The Sofar BTS E5~E20-DS5 is an advanced energy storage solution designed with flexibility and efficiency in mind.
With its modular design and easy installation, these devices are the perfect choice for users seeking reliable
and scalable energy storage solutions. Exceptional energy efficiency and remarkably low energy consumption
in standby mode ensure that the BTS E5~E20-DS5 meets the expectations of even the most demanding customers.
Key Features
- Modular and Integrated Design: Facilitates transport and installation, allowing for quick deployment.
- Flexible Capacity: Possibility to expand the battery system to meet higher energy needs.
- User-Friendly Operation: An intuitive interface allows for battery control at the push of a button.
- Maximum Energy: Optimized package delivers top-notch performance.
- Exceptionally Low Energy Consumption: Sleep mode minimizes self-energy consumption.
- Dedicated for ME/HYD 5K~20KTL-3PH Inverters: Specially tailored for compatible inverters.
Who is it Suitable For?
The Sofar BTS E5~E20-DS5 is an ideal choice for both individual and commercial users who need scalable and
efficient energy storage. With its flexible design and expandability, the product is suitable for both small
and large installations. Its low energy consumption in standby mode and advanced optimization make the BTS E5~E20-DS5
a smart investment in reliability and energy efficiency.
| System Parameters | |||||
|---|---|---|---|---|---|
| Parameter | BTS E5-DS5 | BTS E10-DS5 | BTS E15-DS5 | BTS E20-DS5 | |
| Battery Type | LFP | LFP | LFP | LFP | |
| Battery Distribution Module | BTS 5K-BDU | BTS 5K-BDU | BTS 5K-BDU | BTS 5K-BDU | |
| Number of Battery Distribution Units | 1 | 1 | 1 | 1 | |
| Battery Module | BTS 5K | BTS 5K | BTS 5K | BTS 5K | |
| Number of Battery Modules | 1 | 2 | 3 | 4 | |
| Total Battery Energy (kWh) | 5.12 | 10.24 | 15.36 | 20.48 | |
| Usable Energy (kW) | 4.75 | 9.5 | 14.25 | 19 | |
| Rated Power (kW) | 2.5 | 5 | 7.5 | 10 | |
| Nominal Voltage (V) | 400 | 400 | 400 | 400 | |
| Voltage Range under Full Load (V) | 350-425 | 350-425 | 350-425 | 350-425 | |
| Rated Charging/Discharging Current (A) | 7 | 14 | 21 | 28 | |
| Protection Degree | IP65 | IP65 | IP65 | IP65 | |
| Ambient Temperature Range | -10°C ~ 50°C | -10°C ~ 50°C | -10°C ~ 50°C | -10°C ~ 50°C | |
| Permissible Relative Humidity Range | 5-95% | 5-95% | 5-95% | 5-95% | |
| Max. Operating Height | 4000 m | 4000 m | 4000 m | 4000 m | |
| Weight (kg) | 59 | 110 | 161 | 212 | |
| Dimensions (mm) | 708 × 170 × 680 | 708 × 170 × 1100 | 708 × 170 × 1520 | 708 × 170 × 1940 | |
| Installation | Floor Mount | Floor Mount | Floor Mount | Floor Mount | |
| Cooling | Natural Air | Natural Air | Natural Air | Natural Air | |
| Display | LED Indicators | LED Indicators | LED Indicators | LED Indicators | |
| Communication | CAN | CAN | CAN | CAN | |
| Compatible Inverters | Please refer to the configuration list for BTS E5…20-DS5 | Please refer to the configuration list for BTS E5…20-DS5 | Please refer to the configuration list for BTS E5…20-DS5 | Please refer to the configuration list for BTS E5…20-DS5 | |
| Battery Module | |||||
| Model | BTS 5K | BTS 5K | BTS 5K | BTS 5K | |
| Battery Module Energy (kWh) | 5.12 | 5.12 | 5.12 | 5.12 | |
| Discharge Depth | 90% | 90% | 90% | 90% | |
| Rated Power (W) | 2500 | 2500 | 2500 | 2500 | |
| Dimensions (mm) | 708 × 170 × 420 | 708 × 170 × 420 | 708 × 170 × 420 | 708 × 170 × 420 | |
| Weight (kg) | 50 | 50 | 50 | 50 | |
| Battery Distribution Module | |||||
| Model | BTS 5K-BDU | BTS 5K-BDU | BTS 5K-BDU | BTS 5K-BDU | |
| Max. Charging/Discharging Current (A) | 35 | 35 | 35 | 35 | |
| Dimensions (mm) | 708 × 170 × 200 | 708 × 170 × 200 | 708 × 170 × 200 | 708 × 170 × 200 | |
| Weight (kg) | 7.5 | 7.5 | 7.5 | 7.5 | |
| Standards | |||||
| Certifications | UN38.3, IEC62619, IEC62040-1, SAA, etc. | UN38.3, IEC62619, IEC62040-1, SAA, etc. | UN38.3, IEC62619, IEC62040-1, SAA, etc. | UN38.3, IEC62619, IEC62040-1, SAA, etc. | |
