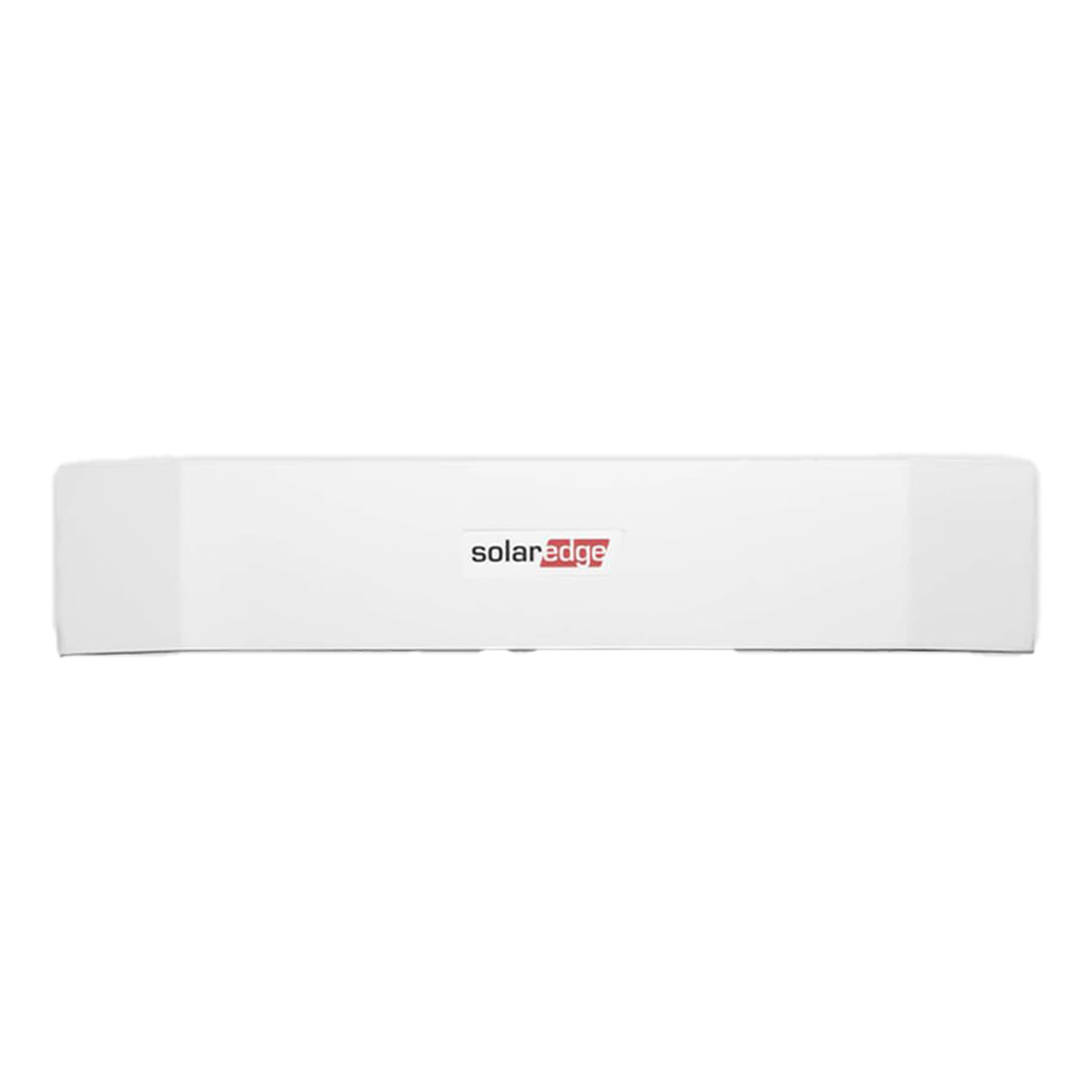

SOLAR EDGE Control Module Top Cover Kit Home Battery IAC-RBAT-5KMTOP-01
| Manufacturer | |
|---|---|
| Weight | 3,1 kg |
Gross
Product details
| Manufacturer | |
|---|---|
| Weight | 3,1 kg |
SolarEdge Energy Storage BAT-05K48
The SolarEdge BAT-05K48 energy storage system is an advanced solution designed for households using SolarEdge Hub and Wave three-phase inverters. By integrating with the SolarEdge ecosystem, the device ensures efficient energy management, enhanced performance, and full support for emergency power supply.
Key Features:
- DC Energy: The energy storage system allows for comprehensive system efficiency, enabling effective storage and utilization of energy.
- Smooth Integration: Fully integrated with the SolarEdge Home ecosystem, making system management easier and enhancing logistical processes.
- Safety Features: Modern technology provides protection for the energy storage system during everyday use.
- Scalability: Ability to connect multiple modules to achieve a capacity of up to 23 kWh on a single inverter.
- Simple Installation: Plug-and-play system with automatic configuration via the SetApp application.
Why Choose the SolarEdge BAT-05K48 Energy Storage System?
The SolarEdge BAT-05K48 is the perfect solution for users who value flexibility, reliability, and advanced energy management capabilities. By monitoring all devices in the system, including energy storage units, the device allows for precise optimization of energy production and consumption.
The product also offers full support for emergency power supply, ensuring independence from external energy sources. It performs excellently in both new installations and as an upgrade to existing SolarEdge systems.
SolarEdge StorEdge BAT-05K48MOB – Specification
| ENERGY STORAGE MODULE SPECIFICATION | |
|---|---|
| Available Energy (Wh) | 4600 |
| Continuous Output Power (charging/discharging) – for a single module (W) | 2825/4096 |
| Continuous Output Power (charging/discharging) – for multiple modules (W) | 5000/5000 |
| Maximum Cycle Efficiency (%) | >94.5 |
| Warranty (years) | 10 |
| Voltage Range (V DC) | 44.8 – 56.5 |
| Communication Interfaces | RS485 between modules, CAN bus to inverter |
| Number of Modules per Inverter | Up to 5 connected in parallel |
| Battery Type | Lithium-ion |
| Compatible Inverters | List of compatible inverters |
| COMPLIANCE WITH STANDARDS | |
| Safety (cell level) | IEC62619, UN38.3, UL9540A |
| Safety (module level) | UN38.3, IEC62619, IEC63056, IEC62040-1, VDE-AR-E 2510-50 |
| EMC | IEC61000-6-1, IEC61000-6-2, IEC61000-6-3, IEC61000-6-4, IEC61000-3-12 |
| MECHANICAL SPECIFICATION | |
| Dimensions (W x H x D) (mm) | 540 x 500 x 240 |
| Weight (kg) | 54.7 |
| Mounting | Stand and wall mount |
| Operating Temperature – Discharging/Charging (°C) | From -10 to +50 |
| Storage Temperature (°C) | From -10 to +45 |
| Max. Installation Height (m) | 2000 |
| Protection of Housing | IP65 / NEMA 3R |
| Cooling | Free convection |
| Noise Emission (dBA) | <25 |
| SOLAREDGE HOME ENERGY STORAGE – ACCESSORIES (SOLD SEPARATELY) | |
| Energy storage accessories, top cover (1 required per tower) | IAC-RBAT-5KMTOP-01 |
| Energy storage accessories, cable set for connecting energy storage to Hub inverter | IAC-RBAT-5KCINV-01 |
| Energy storage accessories, cable set for connecting energy storage to Wave inverter | IAC-RBAT-5KCINV-02 |
| Energy storage accessories, cable set for connecting energy storage to battery storage | IAC-RBAT-5KCBAT-01 |
| Energy storage accessories, cable set for connecting towers | IAC-RBAT-5KCTOW-01 |
| Stand (optional) | IAC-RBAT-5KFSTD-01 |
| Accessory 10, additional connector set for “energy storage to inverter” connections | IAC-RBAT-5KCNCT-01 |
| Accessory 10, additional connector set for “tower to tower” connections | IAC-RBAT-5KCNCT-02 |
