Solar Edge CSS-OD 102.4 kWh – CSS-OU-20 + CA-B01-01
SKU: F1800-1
EAN: 2010000030400
| Manufacturer | |
|---|---|
| Net width | |
| Net depth | |
| Net height | |
| Warranty | |
| Capacity | |
| CN | 85076000 |
Net price
43 366,58 €
Gross
Gross
Product details
| Manufacturer | |
|---|---|
| Net width | |
| Net depth | |
| Net height | |
| Warranty | |
| Capacity | |
| CN | 85076000 |

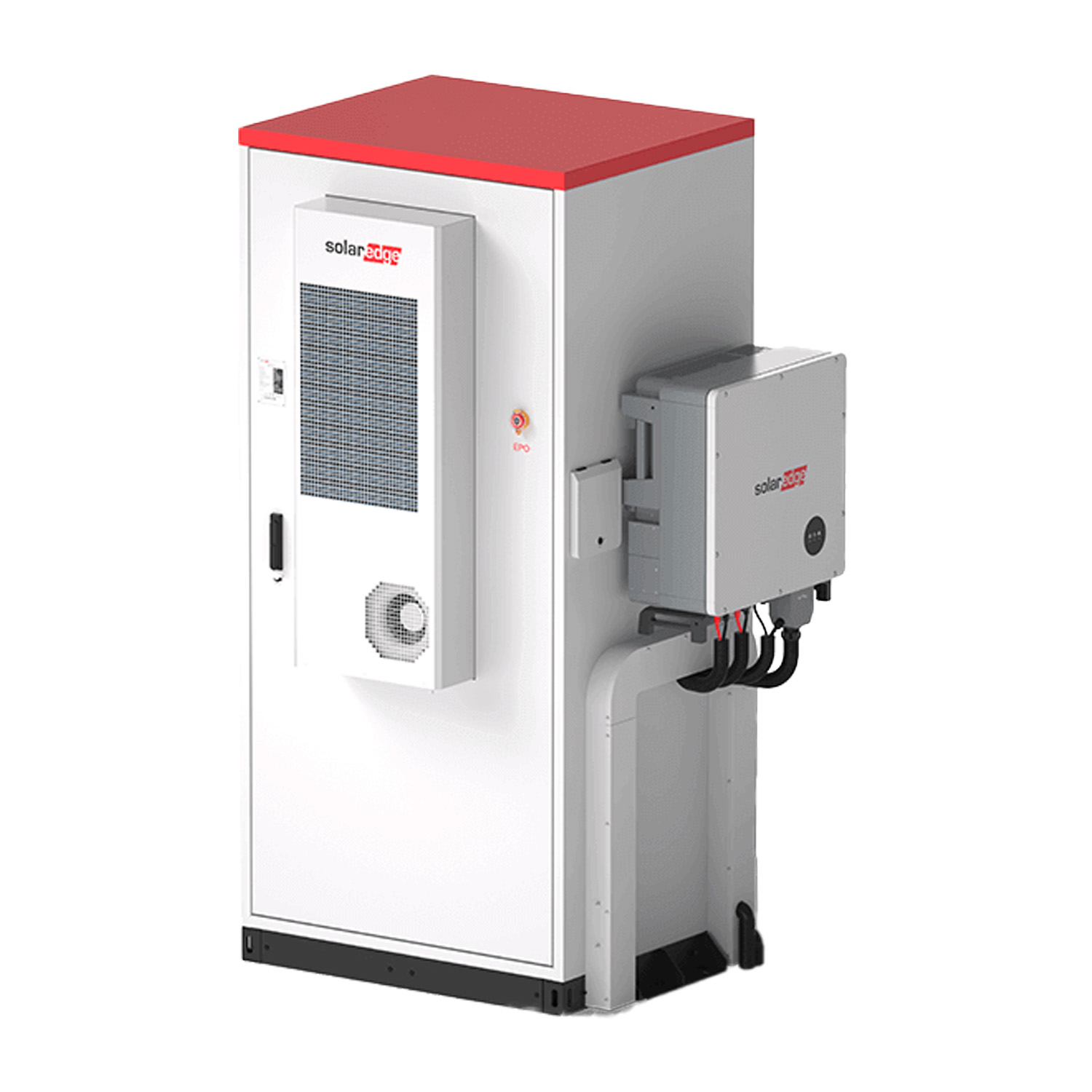

SolarEdge CSS – OD Energy Storage – 102.4 kWh with 50 kW Battery Inverter (CSS-OU-20 / PCS050)
The SolarEdge CSS – OD is an advanced energy storage solution designed for commercial and industrial facilities. With its thoughtful design, high efficiency, and integration with the innovative SolarEdge ONE platform, this system allows for optimized energy management and enhanced power stability.
Key Product Features:
- Easy Installation and Deployment:
- Factory-assembled and tested cabinet for quick setup.
- Compact design allowing for indoor or outdoor installation.
- Optimized Savings through Storage:
- Integration with the SolarEdge ONE optimization platform, managing real-time production, storage, and energy consumption.
- Support for various optimization modes: self-consumption, peak shaving, tariff optimization, and microgrid applications.
- Built-in Safety and Resilience:
- Integrated fire detection mechanism and dual fire suppression.
- Comprehensive protections: against ground faults, surges, reverse polarity, and current leakage.
- Dual-chain construction and sensors (for flooding, door openings, and heat) ensure durability, safety, and reliable operation.
Who is it Suitable For?
The SolarEdge CSS – OD is the ideal solution for businesses and commercial facilities seeking a reliable energy storage system to support power stability, maximize self-consumption, and optimize energy costs. It is particularly beneficial for enterprises looking to enhance energy independence, improve safety, and efficiently utilize renewable energy sources.
What’s Included in the Set?
- Battery cabinet 102.4 kWh
- 50 kW inverter
- Complete wiring kit
- FREE SolarEdge ONE management system for energy monitoring and optimization.
SolarEdge CSS-OD – Specification
| Battery cabinet 102.4 kWh CSS-OU-20 | |
| TECHNICAL SPECIFICATIONS | |
| Chemical substance in cells | LFP |
| Total battery capacity (kWh) | 102.4 |
| Usable battery capacity (kWh) | 97.28 |
| Total capacity of battery module (kWh) | 5.12 |
| Number of modules | 10 + 10 |
| Maximum charging/discharging rate (C) | 0.5 |
| Operating voltage (Vdc) | 456 – 576 |
| Auxiliary input voltage (V AC / Hz) | 230 / 50 |
| MECHANICAL SPECIFICATIONS | |
| Dimensions of battery cabinet (w x d x h) (mm) | 1100 x 1100 x 2380 |
| Weight of battery cabinet (kg) | 1433 |
| Protection degree (IP) | IP54 |
| Corrosion protection | C4 |
| Cooling method | Built-in air conditioning |
| COMPLIANCE WITH STANDARDS | |
| Safety | IEC 62619 |
| Protection degree | IEC 60529 |
| Transport | UN 38.3 |
| EMC | IEC 61000-6-2; IEC 61000-6-4 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating temperature (°C) | (-20) – (+45) |
| Operating humidity (%) | 5 – 95 (non-condensing) |
| Maximum operating altitude (m) | 3000 |
| WARRANTY | |
| System | 10 years |
| Performance | 6000 cycles or 10 years to 70% efficiency |
| Battery inverter 50 kW PCS050 | |
| AC SPECIFICATIONS (GRID CONNECTED / EMERGENCY POWER MODE) | |
| Rated active power (kW) | 50 |
| Maximum apparent output power AC (kVA) | 55 |
| Maximum continuous output current AC (Aac) | 80 |
| Maximum inverter efficiency (%) | 97.5 |
| AC input voltage – phase/phase to neutral (rated voltage) (Vac) | 400 / 230 |
| AC input voltage – phase/phase to neutral (range) (Vac) | 340 – 440 |
| Frequency (Hz) | 50 / 60 ±5 |
| AC connection | 3W + PE / 4W + PE |
| Total harmonic distortion (%) | <3% |
| Power factor range | -1 to 1 / leading current, lagging current |
| Maximum system transition time (ms) | <2 |
| DC SPECIFICATIONS | |
| Maximum DC power (kW) | 55 |
| Maximum DC current (Adc) | 55 x 2 |
| Number of DC input interfaces | 2 |
| Maximum number of battery cabinets connected in parallel to the battery inverter | 2 |
| SAFETY FEATURES | |
| Reverse polarity protection | Yes |
| Grid monitoring | Yes |
| Ground fault protection | Yes |
| Leakage current protection | Yes |
| AC surge protection | Integrated type II |
| DC surge protection | Integrated type III |
| COMMUNICATION | |
| Communication ports | RS-485 / CAN |
| MECHANICAL SPECIFICATION | |
| Inverter dimensions (w x d x h) (mm) | 650 x 324 x 715 |
| Weight of inverter (kg) | 68 |
| Protection degree (IP) | IP65 |
| Cooling method | Air cooling |
| Input wire cross-section and termination (mm² / …) | 25 – 35 mm² / M6 |
| COMPLIANCE WITH STANDARDS | |
| Safety | IEC 62109-1, IEC 62109-2 |
| EMC | IEC 61000-6-4, IEC 61000-3-11, EN/IEC 61000-3, CISPR 11 |
| Grid connection | NRS 097-2-1:2017 release 1, NRS 097-2-1:2020-4 release 3, CEI-016, CEI-021, VDE AR-N-4105, IEC/EN 50549-1/2 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating temperature (°C) | (-20) – (+45) |
| Operating humidity (%) | 5 – 95 (non-condensing) |
| Maximum operating altitude (m) | 3000 |
| WARRANTY | |
| System | 10 years |
