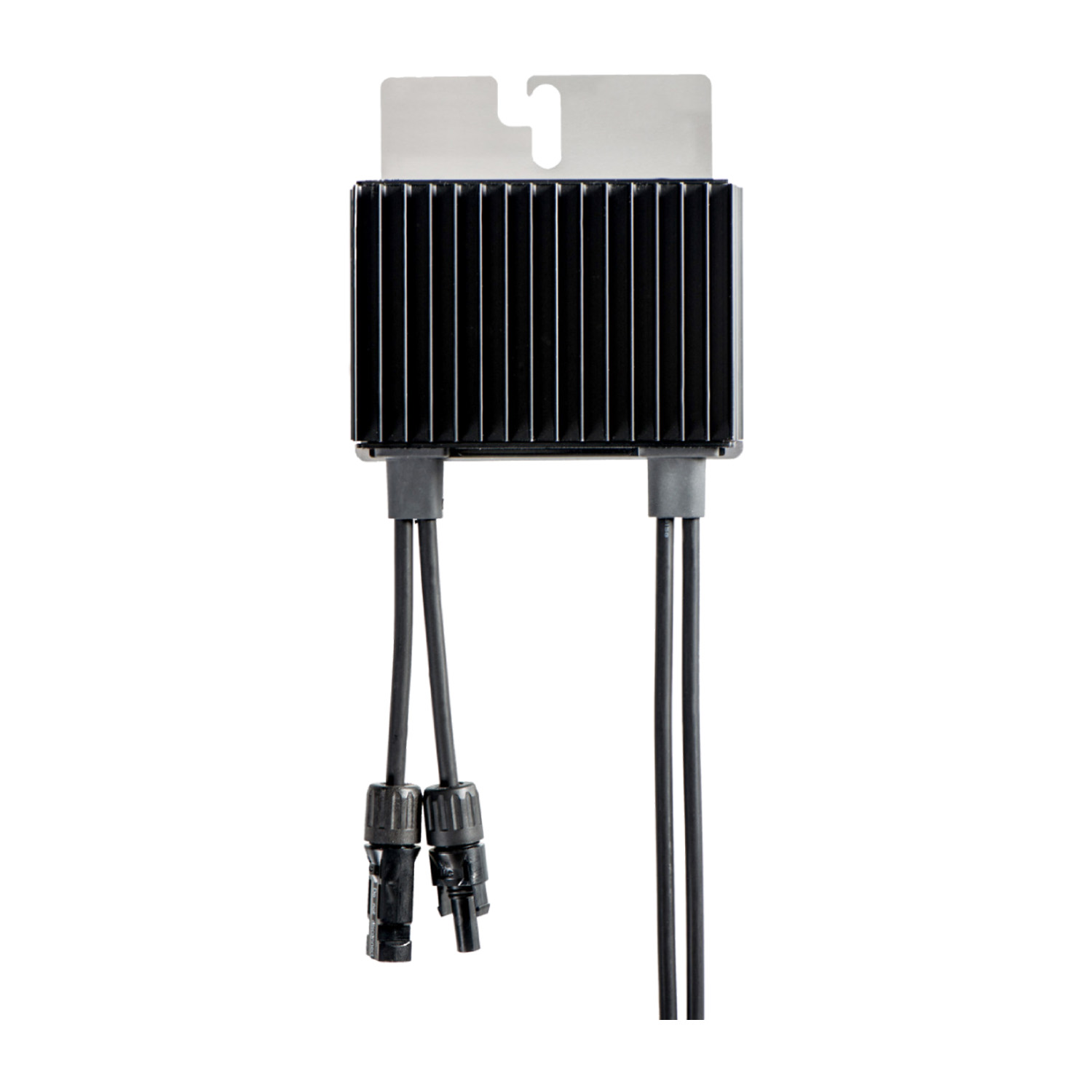

SOLAR EDGE S500 Optimizer – 1GM4MRM
SKU: F250E1
EAN: 5905951584805
| Manufacturer | |
|---|---|
| Application | |
| Rated input power | |
| Maximum short-circuit current | |
| Maximum output current | |
| Maximum efficiency | |
| Cable length | |
| Mounting method | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Quantity per package | |
| Quantity per pallet | |
| Weight | 0,709 kg |
Net price
53,52 €
Gross
Gross
Datasheet Optimizer Solar Edge S500 - 1GM4MRM
datasheet-optimizer-solar-edge-s500-1gm4mrm.pdf
Product details
| Manufacturer | |
|---|---|
| Application | |
| Rated input power | |
| Maximum short-circuit current | |
| Maximum output current | |
| Maximum efficiency | |
| Cable length | |
| Mounting method | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Quantity per package | |
| Quantity per pallet | |
| Weight | 0,709 kg |
SolarEdge S440 and S500 Optimizers
The SolarEdge S440 and S500 optimizers are advanced devices designed to enhance the efficiency and safety of photovoltaic installations at the module level. Created to work in tandem with SolarEdge inverters for residential systems, these optimizers deliver top performance and reliability while simplifying the installation process.
Key Features of SolarEdge S440 and S500:
- High Compatibility – specifically designed to work with SolarEdge inverters for residential installations, ensuring complete system integration.
- PV Connector Anomaly Detection – optimizers detect anomalies in photovoltaic connector behavior, preventing potential safety issues.
- Module-Level Voltage Shutdown – enhances the safety of installers and firefighters by allowing for quick and safe disconnection of voltage.
- High Efficiency – the optimizers offer exceptional efficiency at 99.5%, maximizing energy yield.
- Minimization of Module Mismatch Losses – eliminates any losses resulting from manufacturing tolerances or partial shading.
- Quick and Easy Installation – a streamlined cable management system and a one-screw mounting process expedite the installation process.
- Flexible System Design – allows for optimal use of space with any arrangement of modules within the installation.
- Compatibility with Bifacial Modules – optimizers work with bifacial PV modules, providing additional energy yield.
Who is this a good choice for?
SolarEdge S440 and S500 optimizers are the ideal solution for homeowners and installers looking for advanced tools to enhance the performance and safety of photovoltaic systems. With easy installation, design flexibility, and advanced safety features, these devices will excel in any PV installation.
Datasheet Optimizer Solar Edge S500 - 1GM4MRM
datasheet-optimizer-solar-edge-s500-1gm4mrm.pdf
| Specification | S440 | S500 |
|---|---|---|
| Rated Input Power DC(1) [W] | 440 | 500 |
| Absolute Maximum Input Voltage (Voc) [V DC] | 60 | 60 |
| MPPT Operating Range [V DC] | 8 – 60 | 8 – 60 |
| Maximum Short Circuit Current (Isc) [A DC] | 14.5 | 15 |
| Maximum Efficiency [%] | 99.5 | 99.5 |
| Weighted Efficiency [%] | 98.6 | 98.6 |
| Surge Category | II | II |
| OUTPUT DURING OPERATION | ||
| Maximum Output Current [A DC] | 15 | 15 |
| Maximum Output Voltage [V DC] | 60 | 60 |
| STANDBY OUTPUT | ||
| Safe Optimizer Voltage [V DC] | 1 | 1 |
| COMPLIANCE STANDARDS | ||
| Electromagnetic Compatibility | FCC Part 15 Class B, IEC61000-6-2, IEC61000-6-3, CISPR11, EN-55011 | FCC Part 15 Class B, IEC61000-6-2, IEC61000-6-3, CISPR11, EN-55011 |
| Safety | IEC62109-1 (Class II Safety), UL1741 | IEC62109-1 (Class II Safety), UL1741 |
| Material | UL94 V-0, UV resistant | UL94 V-0, UV resistant |
| RoHS | Yes | Yes |
| Fire Safety | VDE-AR-E 2100-712:2013-05 | VDE-AR-E 2100-712:2013-05 |
| INSTALLATION SPECIFICATIONS | ||
| Maximum System Voltage [V DC] | 1000 | 1000 |
| Dimensions (W x D x H) [mm] | 129 x 153 x 30 | 129 x 153 x 30 |
| Weight (Including Cables) [g / lb] | 655 / 1.5 | 655 / 1.5 |
| Input Connector | MC4(2) | MC4(2) |
| Input Cable Length [m] | 0.1 | 0.1 |
| Output Connector | MC4 | MC4 |
| Output Cable Length (+) [m] | (+) 2.3, (-) 0.10 | (+) 2.3, (-) 0.10 |
| Operating Temperature Range(3) [˚C] | -40 to +85 | -40 to +85 |
| Protection Rating | IP68/NEMA6P | IP68/NEMA6P |
| Relative Humidity [%] | 0 – 100 | 0 – 100 |
