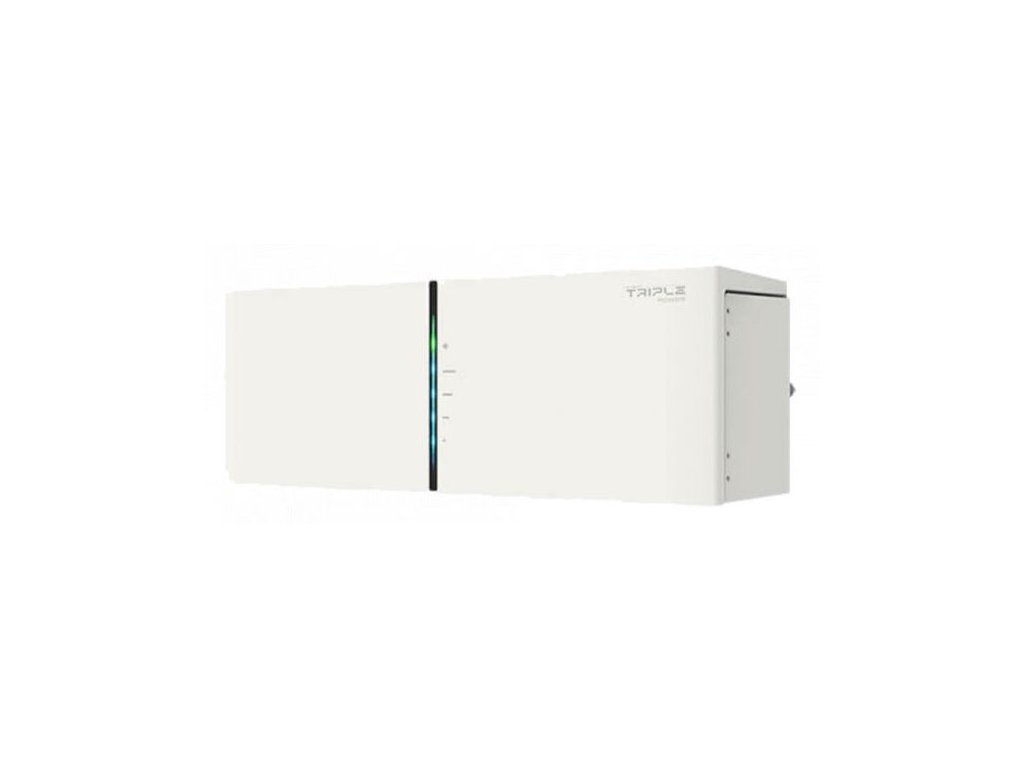

TIGO EI BMS Control Module for TSB-3 Batteries
SKU: F11A2
EAN: 5905951580173
| Manufacturer | |
|---|---|
| CAN 2.0 | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 13,5 kg |
Net price
214,93 €
Gross
Gross
Warranty Tigo EI BMS - Battery Management System, for use with TSB-3 series battery modules
warranty-tigo-ei-bms-battery-management-system-for-use-with-tsb-3-series-battery-modules.pdf
Product details
| Manufacturer | |
|---|---|
| CAN 2.0 | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 13,5 kg |
Tigo EI Battery
Tigo EI Battery is an advanced energy storage system designed for flexibility and easy scalability. The system allows for energy storage in modules with a capacity of 3 kWh, enabling a total storage capacity of up to 12 kWh.
Key Features of Tigo EI Battery:
- Fast charging and discharging – High energy efficiency ensures quick recovery and storage of energy.
- Response time of under 10 ms – Reliable power support in case of grid failures.
- Operation in harsh conditions – The energy storage system is resilient to full loads even in extremely low temperatures.
- Remote monitoring and updates – Features allow for real-time monitoring of the system’s performance and wireless updates.
- Easy installation and setup – Simple integration and quick configuration.
Who is this a good choice for?
Tigo EI Battery is the perfect choice for users looking for a flexible and scalable energy storage solution. With fast charging, the system is ideal for both residential and commercial installations. This solution offers reliability, safety, and convenience in energy management under all conditions.
Warranty Tigo EI BMS - Battery Management System, for use with TSB-3 series battery modules
warranty-tigo-ei-bms-battery-management-system-for-use-with-tsb-3-series-battery-modules.pdf
| EI Battery | |||
|---|---|---|---|
| Model | TSB-6 | TSB-9 | TSB-12 |
| Nominal Voltage (V) | 204.8 | 307.2 | 409.6 |
| Operating Voltage Range (V) | 180-232 | 270-348 | 360-464 |
| Total Energy (kWh) | 6.1 | 9.2 | 12.2 |
| Usable Energy (kWh) | 5.5 | 8.3 | 10.9 |
| Normal Power (kW) | 5.1 | 7.6 | 10.2 |
| Max Power (kW) | 6.1 | 9.2 | 12.2 |
| Max Charging/Discharging Current (A) | 30/30 | 30/30 | 30/30 |
| Battery Efficiency (both ways) | 95% | 95% | 95% |
| Life Cycle (90% DoD) | 6000 cycles | 6000 cycles | 6000 cycles |
| Available Charging/Discharging Temperature Range (°C) | -30° to 50° | -30° to 50° | -30° to 50° |
| Storage Temperature (°C) | -20° to 50° (3 months) | -20° to 50° (3 months) | -20° to 50° (3 months) |
| Relative Humidity (%) | 0 – 100 | 0 – 100 | 0 – 100 |
| Max Height (m) | 3000 | 3000 | 3000 |
| Protection Degree | IP65 | IP65 | IP65 |
| Battery to Inverter | RS485/CAN2.0 | RS485/CAN2.0 | RS485/CAN2.0 |
| Battery to Battery/BMS | CAN 2.0 | CAN 2.0 | CAN 2.0 |
| Certification | CE/IEC62169/UN38.2/IEC62040/UKCA | CE/IEC62169/UN38.2/IEC62040/UKCA | CE/IEC62169/UN38.2/IEC62040/UKCA |
| Hazardous Material Classification | Class 9 | Class 9 | Class 9 |
| Dimensions (WxHxD) (mm) | EI BMS: 482 x 173.5 x 153 TSB: 482.5 x 471.5 x 153 |
EI BMS: 482 x 173.5 x 153 TSB: 482.5 x 471.5 x 153 |
EI BMS: 482 x 173.5 x 153 TSB: 482.5 x 471.5 x 153 |
| Net Weight (kg) | EI BMS: 7.5 +2 TSB3.0 69kg |
EI BMS: 7.5 +3 TSB3.0 103.5kg |
EI BMS: 7.5 +4 TSB3.0 138kg |
