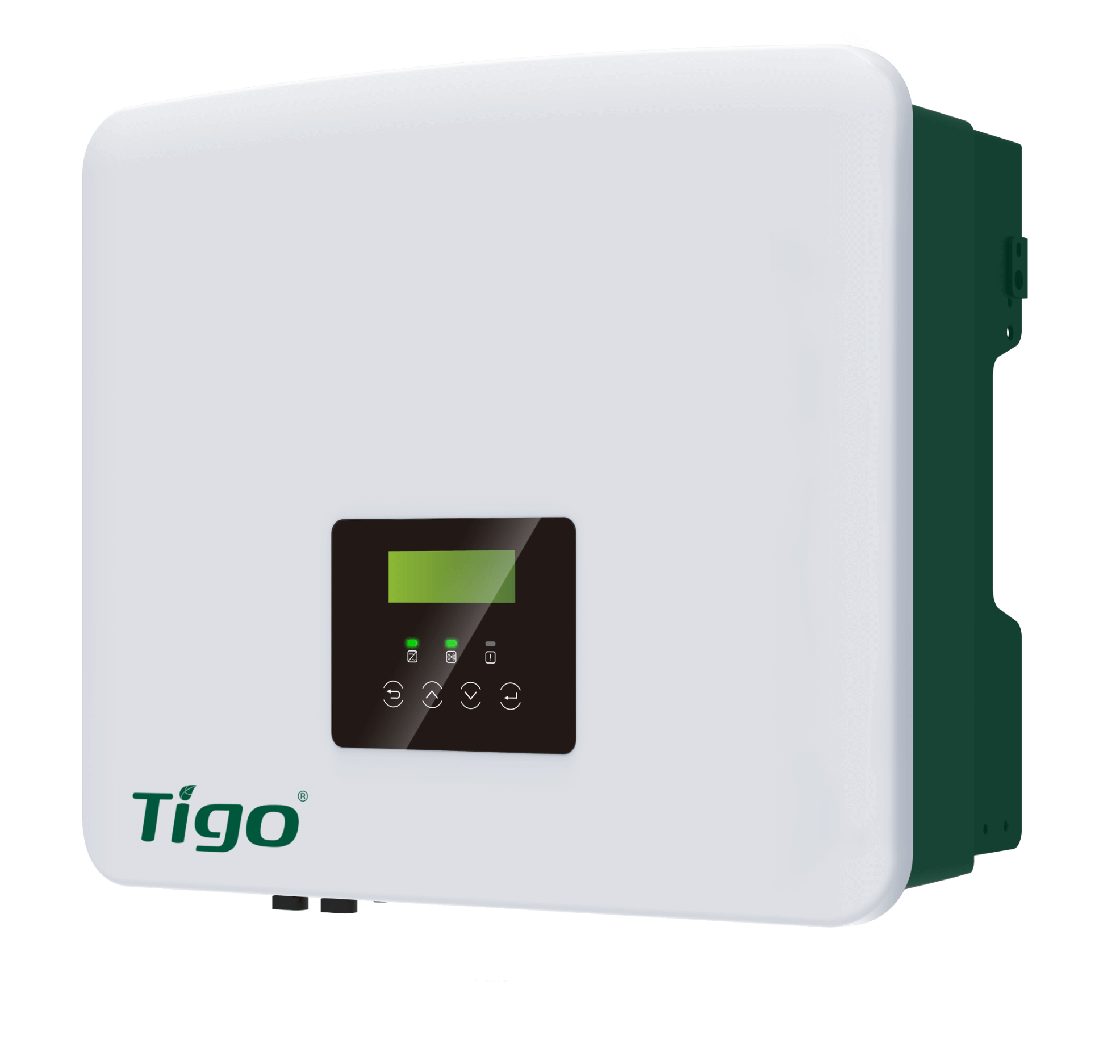

TIGO TSI-10K3D Inverter – 10 kW Energy Storage Hybrid Inverter / 3-phase
SKU: F2H05
EAN: 5905951580111
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| RS485 | |
| Weight | 34,5 kg |
Net price
544,36 €
Gross
Gross
Warranty Tigo TSI-10K3D - 10 kW Energy Storage Hybrid Inverter / 3-phase
warranty-tigo-tsi-10k3d-10-kw-energy-storage-hybrid-inverter-3-phase.pdf
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| RS485 | |
| Weight | 34,5 kg |
Tigo EI Inverters
Tigo EI Inverters are modern inverter devices designed to optimize photovoltaic systems. With intelligent integration with the Tigo Energy Intelligence platform, the inverters ensure efficient energy conversion and precise power flow management in installations of varying scales.
Key features of Tigo EI Inverters:
- Multi-Channel MPPT – Dual MPPT trackers allow for optimal connections of PV panels for maximum efficiency.
- High Output Power – The models TSI-6K3D, TSI-10K3D, and TSI-15K3D offer varying power levels tailored to the needs of the installation.
- Fast Response Time – Switching time below 10 ms ensures system stability and reliability.
- Safe Operation and High Efficiency – Advanced protections and low current distortion levels (THDi <3%) guarantee effective and safe operation.
- Remote Monitoring – Integration with the Tigo EI platform allows for real-time monitoring and quick diagnosis of potential issues.
Who are these solutions ideal for?
Tigo EI Inverters are an excellent choice for installers and owners of PV systems who expect flexibility and reliability in energy conversion. The devices are suitable for both smaller residential installations and large commercial projects, ensuring effective power management and operational stability even in challenging conditions.
Warranty Tigo TSI-10K3D - 10 kW Energy Storage Hybrid Inverter / 3-phase
warranty-tigo-tsi-10k3d-10-kw-energy-storage-hybrid-inverter-3-phase.pdf
| Inverter | |||
|---|---|---|---|
| Model | TSI-6K3D | TSI-10K3D | TSI-15K3D |
| Number of MPPT Trackers | 2 | 2 | 2 |
| Number of Strings (MPPT 1/MPPT 2) | 1 | 2/1 | 2/1 |
| Max PV Input Power per MPPT (W) | 5000 | 10500/6000 | 11000/7000 |
| Max PV Input Voltage (V) | 1000 V | 1000 V | 1000 V |
| Startup Voltage (V) | 200 V | 200 V | 200 V |
| MPPT Voltage Range (V) | 180 – 950 V | 180 – 950 V | 180 – 950 V |
| Max Input Current per MPPT (A) | 16 | 26/16 | 26/16 |
| Max Short Circuit Current per MPPT (A) | 20 | 30/20 | 30/20 |
| AC Input and Output | |||
| Nominal AC Output Power (W) | 6000 | 10000 | 15000 |
| Max Apparent AC Output Power (VA) | 6600 | 11000 | 15000 |
| Max AC Output Current (A) | 9.7 A | 16.1 A | 24.1 A |
| Max AC Input Power (W) | 12000 | 20000 | 20000 |
| Max AC Input Current (A) | 19.3 A | 32 A | 32 A |
| Nominal AC Voltage (V) | 415/240; 400/230; 380/220 V | 415/240; 400/230; 380/220 V | 415/240; 400/230; 380/220 V |
| Grid Frequency (Hz) | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Power Factor | 0.8 leading – 0.8 lagging | 0.8 leading – 0.8 lagging | 0.8 leading – 0.8 lagging |
| THDi | <3% | <3% | <3% |
| Battery Data | |||
| Battery Type | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) |
| Battery Voltage Range (V) | 180 – 800 V | 180 – 800 V | 180 – 800 V |
| Max Continuous Charging/Discharging (A) | 30/30 A | 30/30 A | 30/30 A |
| Off-grid Output (with battery) | |||
| Nominal Output Power (VA) | 6000 VA | 10000 VA | 15000 VA |
| Peak Apparent Power (VA) | 9000, 60sec | 15000, 60sec | 16500, 60sec |
| Max Continuous Current (A) | 8.7 A | 14.5 A | 21.8 A |
| THDv | <3% | <3% | <3% |
| Switching Time (ms) | <10 ms | <10 ms | <10 ms |
| System Data | |||
| Max/EU Efficiency (%) | 98.2 / 97.7% | 98.2 / 97.7% | 98.2 / 97.7% |
| Battery Charging/Discharging Efficiency (%) | 98.5 / 97.5% | 98.5 / 97.5% | 98.5 / 97.5% |
| Standby Power Consumption (W) | <5 W | <5 W | <5 W |
| Protection Degree | IP65 | IP65 | IP65 |
| Operating Temperature (°C) | -35° to 60° (derating above 45°) | -35° to 60° (derating above 45°) | -35° to 60° (derating above 45°) |
| Storage Temperature (°C) | -20° to 70° | -20° to 70° | -20° to 70° |
| Max Operating Height (m) | <3000 m | <3000 m | <3000 m |
| Humidity (%) | 0 – 100% non-condensing | 0 – 100% non-condensing | 0 – 100% non-condensing |
| Noise Emission (dB) | <40 dB | <45 dB | <45 dB |
| Cooling | Natural Convection | Natural Convection | Forced Air Cooling |
| Dimensions (WxHxD) (mm) | 503 x 503 x 199 mm | 503 x 503 x 199 mm | 503 x 503 x 199 mm |
| Weight (kg) | 34 kg | 34 kg | 34 kg |
| Interface | RS485, Ethernet, WiFi, LCD interface, Tigo EI App | RS485, Ethernet, WiFi, LCD interface, Tigo EI App | RS485, Ethernet, WiFi, LCD interface, Tigo EI App |
| Safety Standards | |||
| Safety Standards | IEC62109-1/-2 EMC EN61000-6-1/EN61000-6-2/EN61000-6-3 | IEC62109-1/-2 EMC EN61000-6-1/EN61000-6-2/EN61000-6-3 | IEC62109-1/-2 EMC EN61000-6-1/EN61000-6-2/EN61000-6-3 |
| Certifications | VDE 0126-1-1 A1:2012/VDE-AR-N 4105/G98/G99/AS4777/EN50549-1:2019/CEI 0-21 | VDE 0126-1-1 A1:2012/VDE-AR-N 4105/G98/G99/AS4777/EN50549-1:2019/CEI 0-21 | VDE 0126-1-1 A1:2012/VDE-AR-N 4105/G98/G99/AS4777/EN50549-1:2019/CEI 0-21 |
